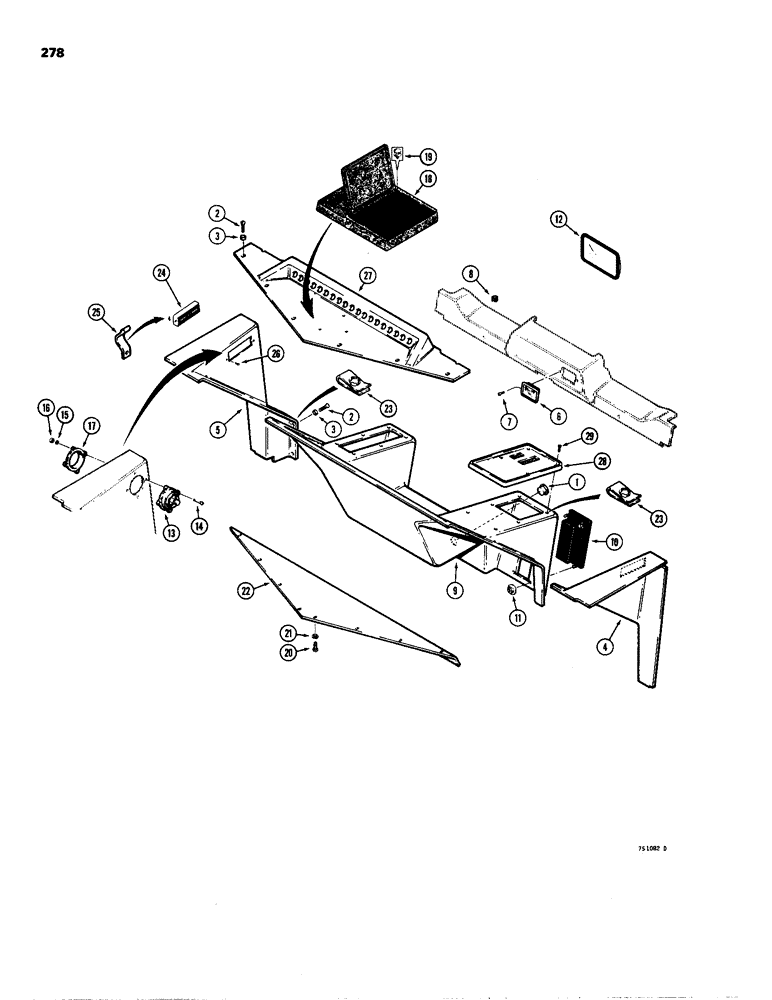

Запчасти Case W24B (278) - CAB CLOSURE PARTS (09) - CHASSIS

NSS

NOT SOLD SEPARAT

CAB - operator's, see Fig. 002 for ordering

1шт.

1

353-416

PLUG,Dome, 1.750" hole, Nylon

- nylon, 1-3/4" dia

1шт.

2

187-1099

SELF-TAP SCREW,Cross Oval Hd, #10 x 1 1/4"

SCREW - oval head, #10 - 16 NC x 1-1/4"

25шт.

3

F43576

WASHER

- countersunk

25шт.

4

L74567

PANEL

- RH side, cab sn 24115 and after

1шт.

4

F43501

PANEL

- RH side, before cab sn 24115

1шт.

5

L74562

PANEL

- LH side, cab sn 24115 and after

1шт.

5

F43502

PANEL

- LH side, before cab sn 24115

1шт.

6

D71520

ASH TRAY

TRAY - ash, before cab sn 24115

1шт.

7

187-1040

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW - flat head, self tapping #6 - 32 NC x 3/8"

2шт.

8

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

- 1/4" x 5/16"

1шт.

9

F43500

PANEL

- trim center

1шт.

10

F43507

PLATE

LOUVER - outlet

2шт.

11

131-423

NUT,3/16", Twist

NUT - twist, 3/16" stud dia

8шт.

12

L74714

MIRROR

- rear view, includes hardware

1шт.

13

F63777

BALL

LOUVER - ball type, before cab sn 24115

2шт.

14

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

- #6 - 32 NC x 3/4"

8шт.

15

192-105

LOCK WASHER,#6

WASHER - lock, 5/16"

8шт.

16

129-5

NUT,#6-32

8шт.

17

D72734

LOCK ASSY

RECEPTACLE - ball type Louver, before cab sn 24115

2шт.

18

A141933

BOX

- operators manual

1шт.

19

A143300

FASTENER

3шт.

20

187-229

SCREW - oval head, #10 - 16 NC x 1/2"

15шт.

21

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

15шт.

22

D71527

PANEL

- floor plate, before cab sn 27750

1шт.

22

D78392

PANEL

- floor plate, cab sn 27750 and after

1шт.

23

131-642

SPRING NUT,Tinn, U, #10

- speed, U-type

1шт.

24

F89673

GUARD

LOUVER - square style

2шт.

25

A42575

CLIP

8шт.

26

151-502

RIVET,Pop, 1/8" x 5/16"

- dome head, 1/8" x 13/32"

8шт.

27

D78390

PANEL

- rear shelf, cab sn 27750 and after

1шт.

27

L77017

PANEL

- rear shelf, before cab sn 27750

1шт.

28

L70576

PANEL

- control cover, 2 spool

1шт.

28

L70577

PANEL

- control cover, 3 spool, not shown

1шт.

29

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10 - 24 NC x 3/4"

6шт.
