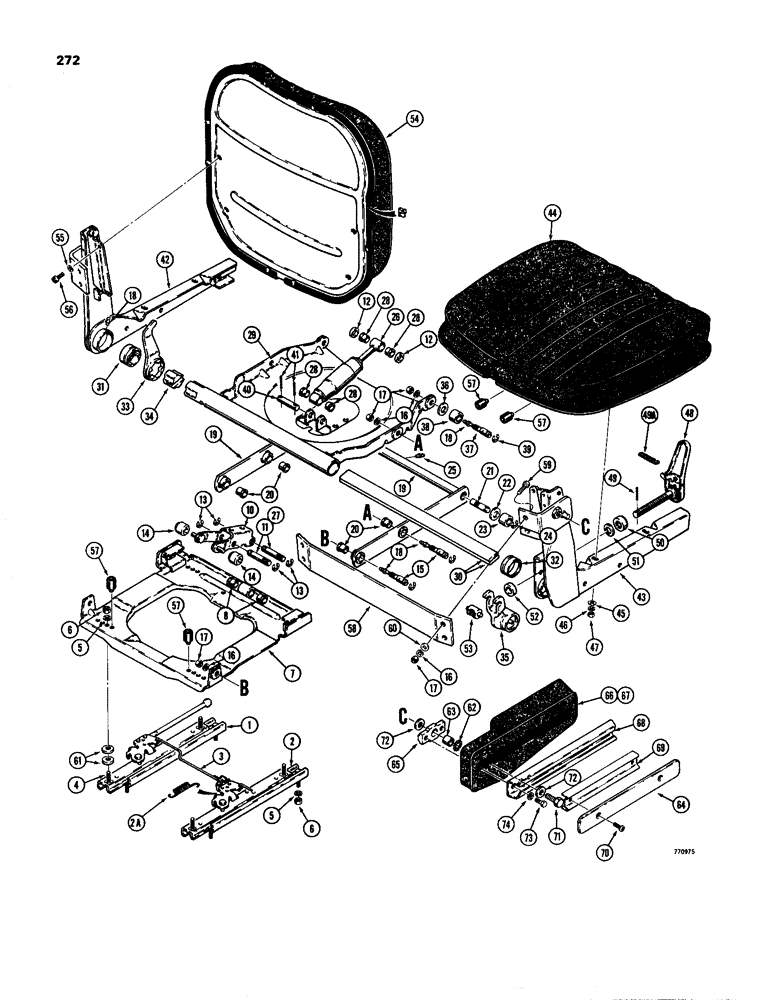

Запчасти Case W24B (272) - SUSPENSION SEAT (09) - CHASSIS

L73447

SEAT

ASSEMBLY - ROPS models, Includes: Ref. 1 - 42

1шт.

L73448

SEAT ASSY.

SEAT ASSEMBLY - cab models, Includes: Ref. 1 - 42

1шт.

D64865

KIT

- slide rail, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

RAIL - LH with handle

1шт.

2

NSS

NOT SOLD SEPARAT

RAIL - RH

1шт.

2a

NSS

NOT SOLD SEPARAT

SPRING, Includes: Ref. 3

1шт.

3

D64866

BAR

KIT - latch wire

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

6

9635082

NUT,5/16" - 18, Gr 5

12шт.

D74519

BASE

ASSEMBLY (replaced D64842), Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

BASE - seat, serial number attached

1шт.

8

D64843

FLANGED BEARING,0.508" ID x 0.753" OD x 0.562"

BEARING - flanged

2шт.

D64853

LEVER

ASSEMBLY KIT - shock, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

LEVER

1шт.

11

D64854

SHAFT

- hinge shock included with D64855 kit

2шт.

12

195-2066

WASHER,33/64" x 7/8" x .180"

- 1/2", plated

2шт.

13

D66299

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

6шт.

14

D64864

ROLLER

S - nylon

2шт.

15

D66298

STUD

S

4шт.

16

92-6

LOCK WASHER,3/8"

10шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

10шт.

18

219-411

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16"

8шт.

D64844

LEVER

ASSEMBLY - outer, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

LEVER - outer assembly

1шт.

20

F64845

BEARING - flanged

4шт.

21

D64846

AXLE PIN

PIN - drive

2шт.

22

195-533

WASHER,1/2", SAE

- flat, 1/2"

2шт.

23

D66297

BEARING ASSY

BEARING - roller

2шт.

24

D66299

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

2шт.

25

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, special extra short, 1/8" NPT

1шт.

D64855

SHOCK ABSORBER

ASSEMBLY KIT, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

SHOCK ABSORBER

1шт.

27

D64854

SHAFT

- hinge shock

1шт.

28

D64856

FLANGED BEARING,0.503" ID x 0.625" OD x 0.5"

BEARING - flanged

4шт.

D64847

BASE

LEVER ASSEMBLY KIT - center, Includes: Ref. 29 - 42

1шт.

29

NSS

NOT SOLD SEPARAT

LEVER - center

1шт.

33

D64850

LEVER

INDICATOR - ride level

1шт.

34

64857

HYD CONNECTOR

RETAINER - T bar

1шт.

30

D64851

BAR

TORSION BAR - set of two

2шт.

31

D64848

HOUSING

- bearing, LH

1шт.

35

D64858

ADJUSTER

- yoke

1шт.

32

D64849

HOUSING

- bearing, RH

1шт.

36

195-533

WASHER,1/2", SAE

- flat, 1/2"

2шт.

37

D66298

STUD

S

2шт.

38

D66297

BEARING ASSY

BEARING - roller

2шт.

39

D66299

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

2шт.

40

D66300

SHAFT

- hinge shock, rear

1шт.

41

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

42

D64859

PANEL

- LH side, L73441 seat

1шт.

42

D73729

PANEL

- LH side, L73448 seat, Includes: Ref. 43 - 74

1шт.

43

D64860

PANEL

- RH side, L73447 seat

1шт.

43

D73730

PANEL

- RH side, L73448 seat

1шт.

44

D64868

CUSHION ASSY.

SEAT CUSHION - L73447 seat

1шт.

44

D73731

CUSHION

SEAT CUSHION - L73448 seat

1шт.

45

195-103

WASHER,5/16"

- flat, 3/8", plated

4шт.

46

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

47

9635082

NUT,5/16" - 18, Gr 5

4шт.

48

D64861

RATCHET

HANDLE - racket, Includes: Ref. 49 and 49A

1шт.

49

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

49a

NSS

NOT SOLD SEPARAT

SPRING

1шт.

50

D65136

BEARING

- thrust

1шт.

51

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

1шт.

52

D64863

WASHER

- special

1шт.

53

D64862

PIN

- adjuster

1шт.

54

D73732

CUSHION

- back, L73448 seat

1шт.

54

D65107

CUSHION

- back, L73447 seat

1шт.

54a

NSS

NOT SOLD SEPARAT

CLIP

1шт.

55

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

56

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

57

D75479

BUMPER

( replaced D64867 )

4шт.

58

D64852

ADJUSTER

CROSS STRAP

1шт.

59

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

60

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

61

195-2173

WASHER,3/8" x 1" x .180"

- spacer

8шт.

62

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

2шт.

63

D66332

BUSHING

SPACER

2шт.

64

D66333

COVER

- arm channel

2шт.

65

D66334

STOP

2шт.

66

D66302

COVER

- arm, LH

1шт.

67

D66303

COVER

- arm, RH

1шт.

68

D66335

CHANNEL

- arm

2шт.

69

D66336

RETAINER

- channel nut

2шт.

70

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- 1/4" - 20 NC x 3/4"

4шт.

71

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

72

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

73

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

74

92-5

LOCK WASHER,5/16"

4шт.
