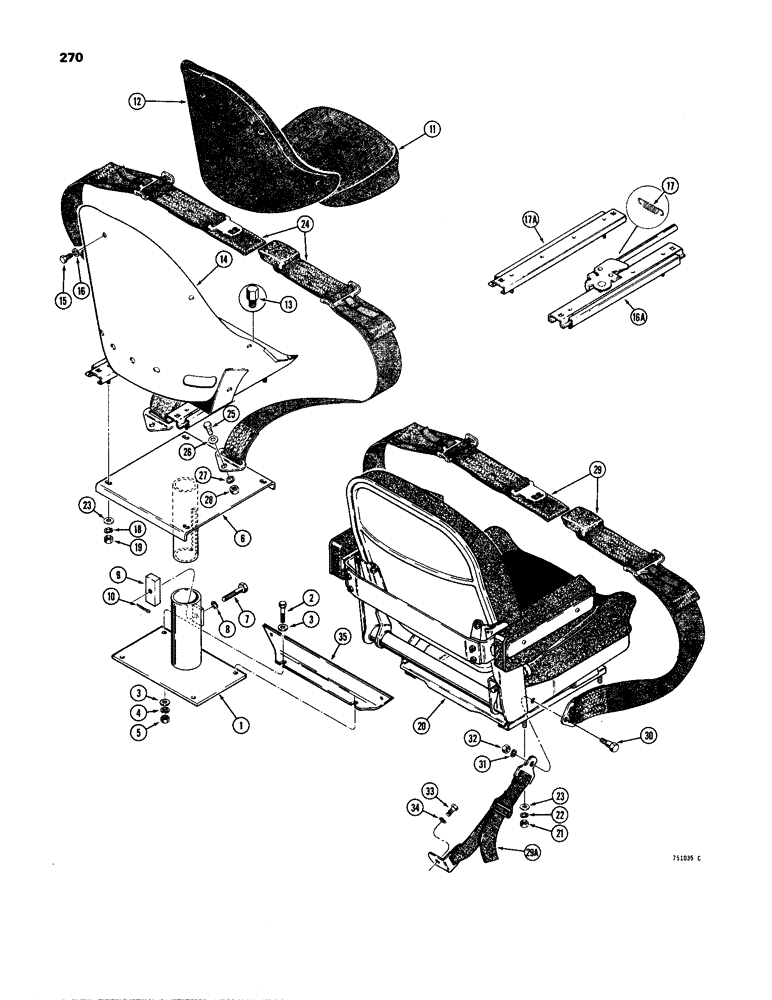

Запчасти Case W24B (270) - SEAT AND MOUNTING PARTS (09) - CHASSIS

1

L942

SUPPORT - seat, lower

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1"

4шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

6

L59946

BRACKET

SUPPORT - seat, upper

1шт.

7

L59949

BOLT (SPREADER)

BOLT - special

1шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

L59950

NUT

- special

1шт.

10

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

L46484

SEAT

- standard, side adjustment lever, Includes: Ref. 11 - 19

1шт.

11

D52470

CUSHION

- seat

1шт.

12

A42747

BACKREST

CUSHION - backrest

1шт.

13

L32870

PIN

- cushion alignment

2шт.

14

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

15

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8"

5шт.

17

L30533

VALVE SPRING

SPRING - adjusting

2шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

4шт.

L77247

SEAT

- standard, with front adjustment levers, Includes: Ref. 11

1шт.

11

D52470

CUSHION

- seat

1шт.

12

A42747

BACKREST

CUSHION - backrest, Includes: Ref. 13 - 19

1шт.

13

D77386

PIN

- cushion alignment

2шт.

14

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

16

195-103

WASHER,5/16"

- flat, , plated 5/16"

5шт.

16a

D59668

SEAL

SLIDE - with handle, Includes: Ref. 17

1шт.

17

L30533

VALVE SPRING

SPRING - adjusting

2шт.

17a

L35272

ADJUSTER

SLIDE - without handle

1шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

4шт.

20

L73447

SEAT

- suspension, ROPS, parts list Fig. 272.

1шт.

20

L73448

SEAT ASSY.

SEAT - suspension, cab, parts list Fig. 272

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 24 NF

4шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

24

D60615

SAFETY BELT ,3.00" W

Standard 3.00" W

1шт.

24

D75428

SAFETY BELT

SAFETY BELT, Standard, 2" (51 mm) wide

1шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

26

95-8

WASHER,1/2"

flat 1/2"

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

L70502

SAFETY BELT

SAFETY BELT, Suspension seats, Includes Ref. 29 - 32

1шт.

29

NSS

NOT SOLD SEPARAT

BELT - seat

1шт.

29a

NSS

NOT SOLD SEPARAT

BELT - tether

2шт.

30

F42236

STEP BOLT

BOLT - hex head shoulder, 1/2" x 7/16" - 14 NC x 1-1/2",grade 8

2шт.

31

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

32

129-104

NUT,7/16"-14, G5

2шт.

33

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

35

L71330

RETAINER

ANGLE - stiffener

1шт.
