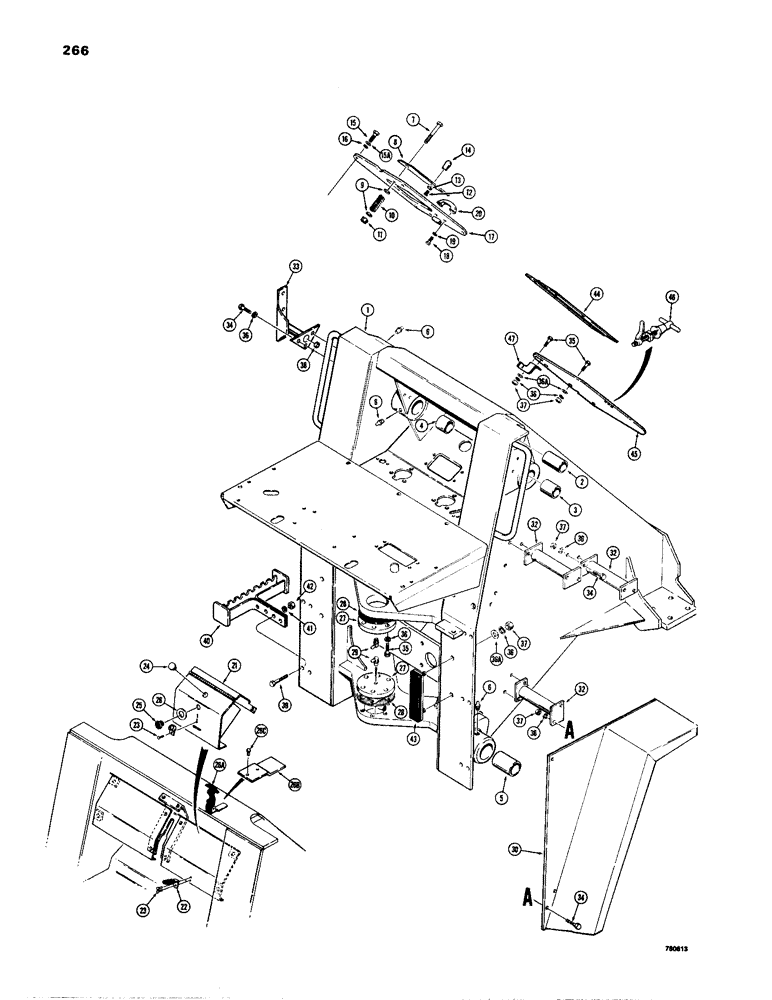

Запчасти Case W24B (266) - FRONT FRAME AND FENDERS (09) - CHASSIS

L58415

FRAME - front chassis, early production, bolt inspection cover, Includes: Ref. 1 - 6

1шт.

L59688

FRAME - front chassis, late production, hinge inspection cover, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - articulated loader

1шт.

2

L26673

BUSHING

- tilt cylinder pivot

2шт.

3

L15526

BUSHING

- lift frame pivot, outer

2шт.

4

L15527

BUSHING

- lift frame pivot, inner

2шт.

5

L19473

BUSHING

- lift cylinder pivot

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

6шт.

7

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

8

L15712

COVER

- inspection, early production

1шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

10

A33749

SPRING

- cover

1шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex self lock, 5/16" - 18 NC

1шт.

12

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 3/4"

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

A14051

GRIP

KNOB - inspection cover

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

15a

195-28

WASHER,3/8"

- flat, 3/8"

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

L56222

COVER

- front frame, early production

1шт.

18

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

19

92-5

LOCK WASHER,5/16"

2шт.

20

A23725

HANDLE

- cover

1шт.

21

L71960

COVER

- instrument panel

1шт.

22

L71962

BRACKET

1шт.

23

151-526

RIVET,Pop, 1/8" x .337"

3шт.

24

353-405

PLUG,Dome, .562" hole, Nylon

- rubber 9/16

1шт.

25

L60224

BUMPER

- cover

1шт.

26

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

26a

L72697

LATCH ASSY.

CATCH - cover, Includes: Ref. 26B and 26C

1шт.

26b

L73121

SPACER

1шт.

26c

151-526

RIVET,Pop, 1/8" x .337"

2шт.

27

L17465

CAP

- thrust plate, spindle

2шт.

28

L17318

SHIM,113.54mm ID x 177.8mm OD x 0.56mm Thk

- .0149" (.38 mm) thick

1шт.

28

L17213

SHIM,113.5mm ID x 177.8mm OD x 0.91mm Thk

(0.912 mm) .0359" Thk

1шт.

28

L17212

SHIM,113.5mm ID x 177.8mm OD x 1.52mm Thk

(1.519 mm) .0598" Thk

1шт.

29

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degrees, 1/4" NPT

2шт.

30

L16988

FENDER - front, RH

1шт.

31

L16989

FENDER ASSY.

FENDER - front, LH, not illustrated

1шт.

32

L17070

PIPE

BRACE - fender mounting

6шт.

33

L40006

MOUNTING PARTS

BRACKET - RH, light mount

1шт.

33

L40006

MOUNTING PARTS

BRACKET - LH, light mount

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

18шт.

35

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

20шт.

36

92-6

LOCK WASHER,3/8"

42шт.

36a

95-6

WASHER,3/8"

- flat, 3/8"

4-1шт.

37

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, 3/8" - 16 NC (replaced 25-106)

38шт.

38

L16776

SPACER

- bracket, light

2шт.

39

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

40

L77602

STEP

- access, operator

6шт.

41

2-8

BEARING

WASHER - lock, 1/2"

12шт.

42

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

12шт.

43

L47997

ELASTIC STOP

STOP - cushion

2шт.

44

L73043

HINGE

- door

1шт.

45

L78016

DOOR

- access, late production

1шт.

46

L48438

HANDLE

- door

1шт.

47

L78015

STOP

1шт.
