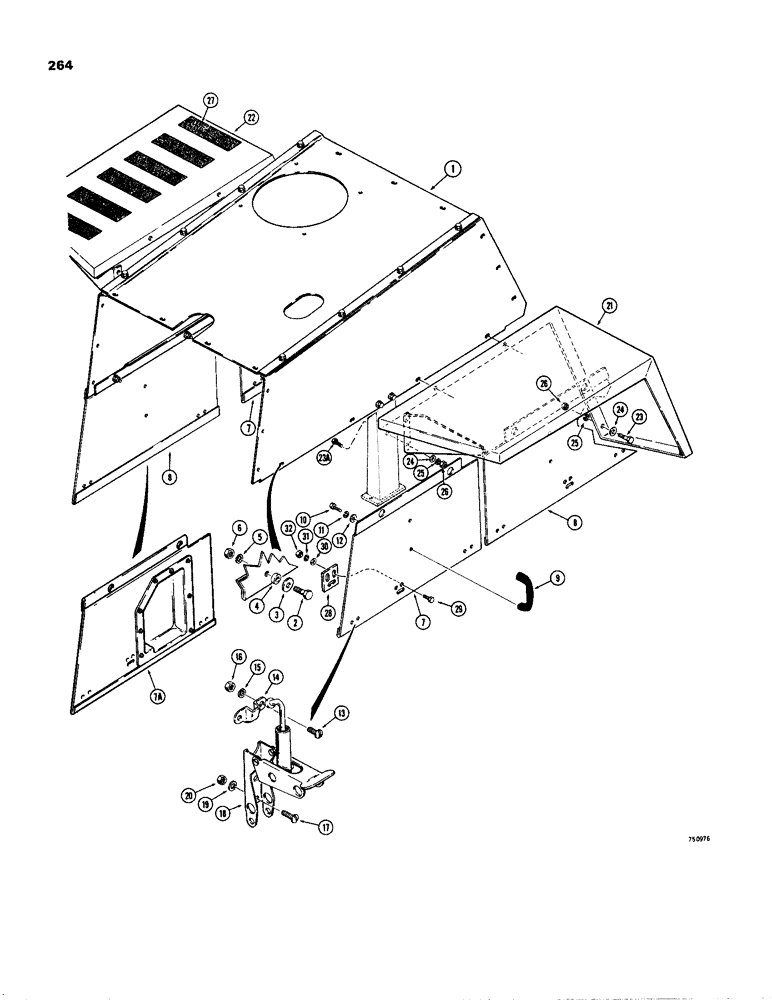

Запчасти Case W24B (264) - REAR FENDERS AND SIDE PANELS (09) - CHASSIS

1

REF

INSTRUCTION

HOOD - engine, seeFig. 262 for related parts

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

195-26

WASHER

WASHER - flat, 3/8"

8шт.

4

L16674

SLEEVE

- panel support

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

7

L71419

SUPPORT

PANEL - engine side (replacedL71418)

2шт.

7a

L71384

PANEL ASSY.

PANEL - engine side, LH rear, models with air conditioning

1шт.

8

L71418

PANEL

- engine side (replaced L71419)

2шт.

9

A23725

HANDLE

- engine side panel

4шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

11

92-5

LOCK WASHER,5/16"

8шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

8шт.

13

173-96

SCREW,Sl Rnd Hd, #10 - 24 x 7/16"

- machine, round head, #10 - 24 NC x 7/16"

8шт.

14

A17237

HOOK

CATCH - side panel latch

4шт.

15

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

16

129-7

NUT,Hex, #10 - 24

- hex, #10 - 24 NC

8шт.

17

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - machine, round head, #10 - 24 NC x 3/4"

8шт.

18

L10473

LATCH

- engine side shields

4шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

20

129-7

NUT,Hex, #10 - 24

- hex, #10 - 24 NC

8шт.

21

L16962

FENDER

- rear, RH

1шт.

22

L16963

FENDER

- rear, LH

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

10шт.

23a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

10шт.

24

195-26

WASHER

WASHER - flat, 3/8"

20шт.

25

92-6

LOCK WASHER,3/8"

20шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

20шт.

27

A55582

PAD

- non slip

12шт.

28

L48994

PLATE

- lock adjustment, models with lockup parts

4шт.

29

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

30

195-22

WASHER

- flat, 5/16"

8шт.

31

92-5

LOCK WASHER,5/16"

8шт.

32

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

8шт.
