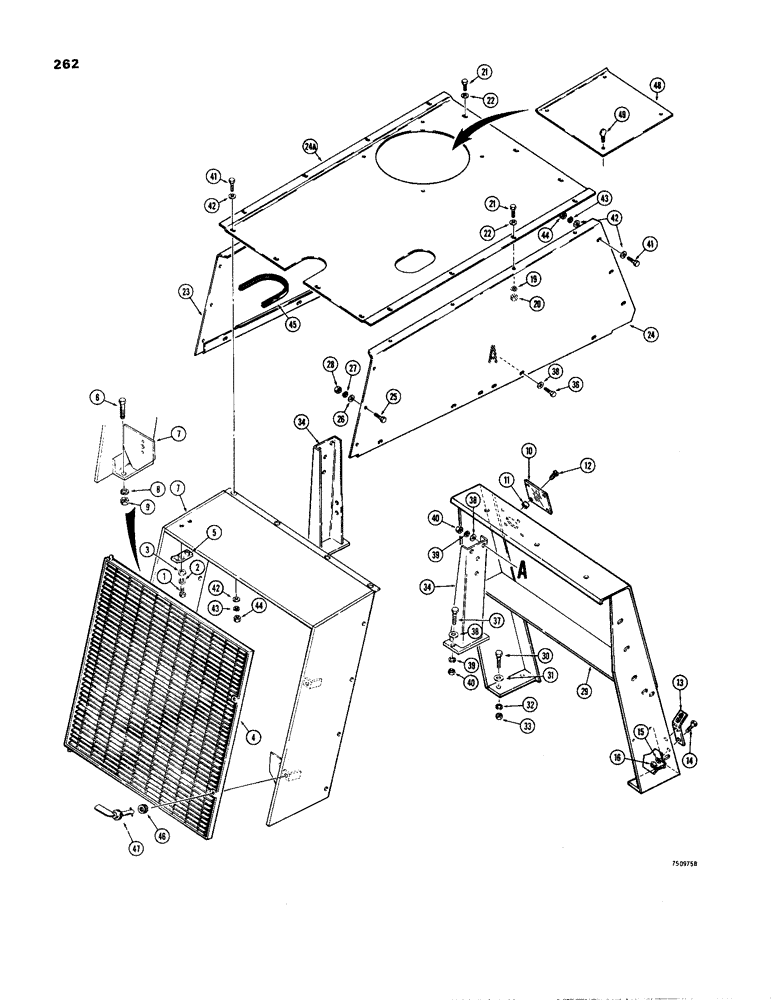

Запчасти Case W24B (262) - GRILLE AND HOOD (09) - CHASSIS

1

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

2

92-8

LOCK WASHER,1/2"

2шт.

3

95-8

WASHER,1/2"

flat 1/2"

2шт.

4

L48314

GRILLE

- radiator protecting

1шт.

5

L45084

SUPPORT

- grille, upper

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

7

L57515

GUARD ASSY.

FRAME - grille mounting

1шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

10

L54570

COVER

- tachometer

1шт.

11

L72459

SPACER

4шт.

12

187-351

X

SCREW - round head, 1/4" - 20 NC x 1"

4шт.

13

L76925

BRACKET - safety bar storage

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

11шт.

22

95-6

WASHER,3/8"

- flat, 3/8"

11шт.

23

L58555

PANEL ASSY.

HOOD - engine, LH

1шт.

24

L58554

HOOD - engine, RH

1шт.

24a

L58558

HOOD - top

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

26

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

27

92-6

LOCK WASHER,3/8"

6шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

29

L76927

POST

SUPPORT - hood, front

1шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

31

95-8

WASHER,1/2"

flat 1/2"

4шт.

32

92-8

LOCK WASHER,1/2"

4шт.

33

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

34

L100715

POST

SUPPORT - hood

2шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

37

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

38

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

39

92-6

LOCK WASHER,3/8"

8шт.

40

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

41

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 1-1/4"

10шт.

42

95-6

WASHER,3/8"

- flat, 3/8"

16шт.

43

92-6

LOCK WASHER,3/8"

10шт.

44

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

10шт.

46

L48760

WASHER

- grille retainer

2шт.

47

L55533

RETAINER

- grille

2шт.

48

L55339

COVER

- air cleaner

1шт.

49

183-111

SCREW - thumb, 1/4" - 20 NC x 3/4"

1шт.
