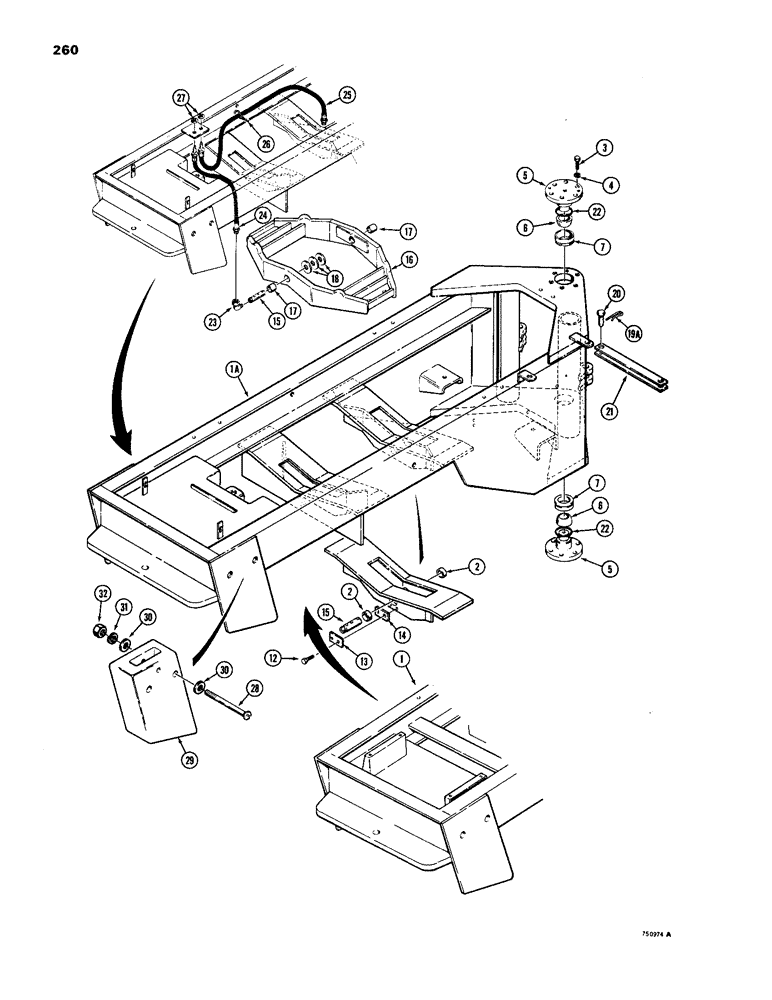

Запчасти Case W24B (260) - REAR FRAME AND TRUNNION (09) - CHASSIS

1

L55852

WASHER

FRAME - rear, use L74505 frame, L74502 holddown, (2) T31481 bolts, (2) 25-105 nuts and (2) 92-5 washers, Includes: Ref. 1

1шт.

1

NSS

NOT SOLD SEPARAT

REAR FRAME

1шт.

1a

L74505

CHASSIS

FRAME - rear, Includes: Ref. 2

1шт.

2

L14098

BUSHING

- trunnion pivot

4шт.

3

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

HHCS - 5/8" - 11 NC x 2"

12шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

L77409

SPINDLE

ASSEMBLY - frame pivot, tractor sn 9126402 and after, Includes: Ref. 5 and 6

2шт.

5

NSS

NOT SOLD SEPARAT

SPINDLE - frame pivot

1шт.

6

L77364

RING RACE

BEARING - thrust

1шт.

7

L77367

THRUST BEARING,69.85mm ID x 100.01mm OD x 29.97mm L

BEARING - thrust, L77409 spindle

2шт.

L17468

SPINDLE

ASSEMBLY - frame pivot, before tractor sn 9126402, Includes: Ref. 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

SPINDLE - frame pivot

2шт.

6

L17462

THRUST BEARING

- thrust, inner ring

1шт.

7

L17463

THRUST BEARING

- thrust, L17468 spindle

2шт.

12

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

13

L72014

LOCK ASSY

PLATE - bolt locking

2шт.

14

L12824

LOCK ASSY

PLATE - pin locking

2шт.

15

L48970

AXLE PIN

PIN - trunnion pivot

2шт.

L52574

FRAME

TRUNNION ASSEMBLY - rear frame, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

17

L14138

BUSHING

- trunnion

2шт.

18

L47423

WASHER

- thrust, 1/8" (3 mm) thick

1шт.

18

L47424

WASHER,51.3mm ID x 114mm OD x 4.76mm Thk

- thrust, 3/16" (4 mm) thick

1шт.

18

L47422

WASHER,51.3mm ID x 114mm OD x 6.35mm Thk

- thrust, 1/4" (6 mm) thick

1шт.

19

A30338

PIN

- click, L14050 pin

2шт.

19a

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - hair, L77379 pin

2шт.

20

L14050

PIN

- use L77379 pin and 136-164 pin

2шт.

20

L77379

PIN

2шт.

21

L16741

STEM

LINK - safety, front to rear frame

1шт.

22

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

2шт.

23

219-416

ELBOW,1/8"-27 NPT x 1/8"-27 NPT Sw

FITTING - 90 degrees swivel, 1/8" NPT

2шт.

24

L54693

HOSE

- grease, 27" (686 mm) long

1шт.

25

L54695

HOSE

- grease, 55" (1397 mm) long

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - hose retaining

3шт.

27

F53473

LOCK NUT,1/8-27 NPSM

- lock, hose retaining

2шт.

28

116-904

BOLT,Hex, 1" - 14 x 10", Gr 8

HHCS - 1" - 8 NC x 10", grade 8, counterweight

4шт.

29

L47367

COUNTERWEIGHT - rear, 500 (227 kg) lbs

2шт.

30

195-53

WASHER,1" x 2" x .134"

- flat, 1", counterweight

8шт.

31

92-16

LOCK WASHER,1"

WASHER, LOCK, , Counterweight 1"

4шт.

32

25-1116

NUT,1"-14, G5

- hex, 1/ - 14 NF, counterweight

4шт.
