Запчасти Case W24B (259A) - G101281 CLAM CYLINDER, GLAND OR TUBE IS STAMPED WITH CYLINDER PART NUMBER (09) - CHASSIS

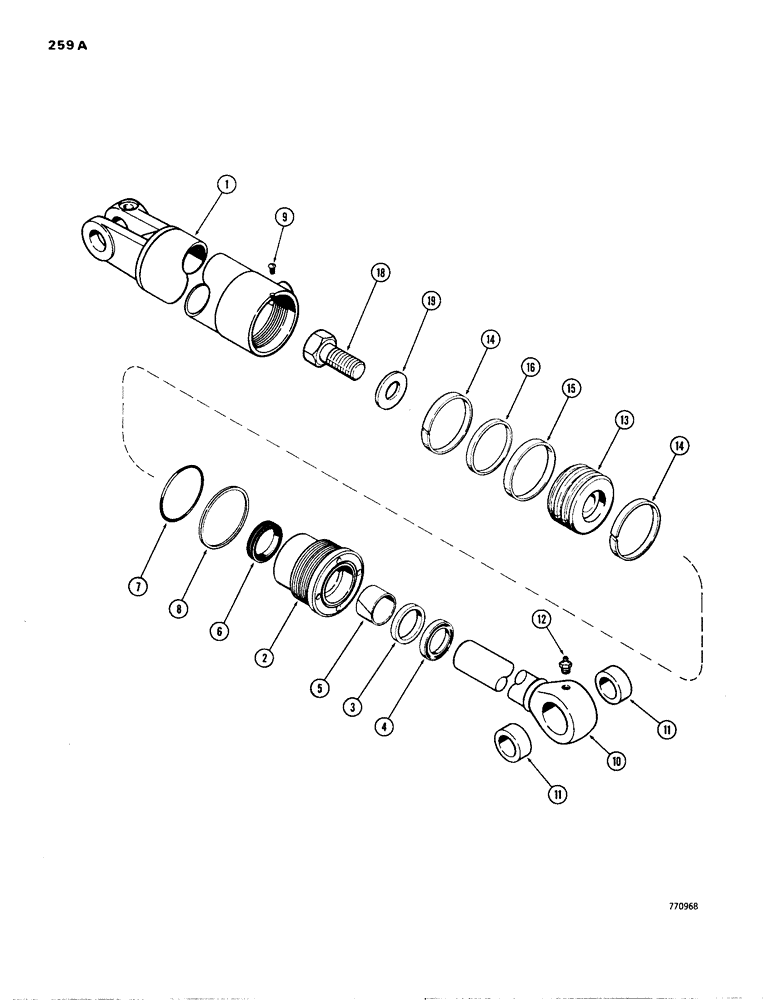

Схема запчастей Case W24B - (259A) - G101281 CLAM CYLINDER, GLAND OR TUBE IS STAMPED WITH CYLINDER PART NUMBER (09) - CHASSIS

Артикул

Название

Примечание

Количество

G101281

CYLINDER,Double Acting, 50.8mm Rod, 266.7mm Stroke

- clam, 4" (102 mm) dia x 10-1/2" (267 mm) stroke, Includes: Ref. 1 - 18

2шт.

1

G32346

JACK BODY,20" L

TUBE

1шт.

G32346

JACK BODY,20" L

GLAND ASSEMBLY, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND

1шт.

3

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

4

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - rod

1шт.

Part of Seal Kit P/N G101287

1шт.

5

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of Seal Kit P/N G101287

1шт.

6

D36971

RING

SEAL - rod, P/N G100778 can be used for extreme heat or code

1шт.

Part of Seal Kit P/N G101287

1шт.

Part of Rod Seal P/N G100778

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G101287

1шт.

8

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1"

1шт.

10

G34317

ROD

- piston, 2" (51 mm) dia, Includes: Ref. 11

1шт.

11

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

1шт.

14

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N G101287

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- piston

1шт.

Part of Seal Kit P/N G101287

1шт.

16

G100439

SEAL,98mm ID x 102.6mm OD x 6.8mm Thk

RING - backup

1шт.

Part of Seal Kit P/N G101287

1шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

18

G32351

WASHER

- hardened

1шт.

G101287

SEAL

KIT - seal, Includes: Ref. 4-7 and 14-16

1шт.

G100778

SEAL

- rod, service option, extreme heat or cold

1шт.

Выбрано товаров: 30
