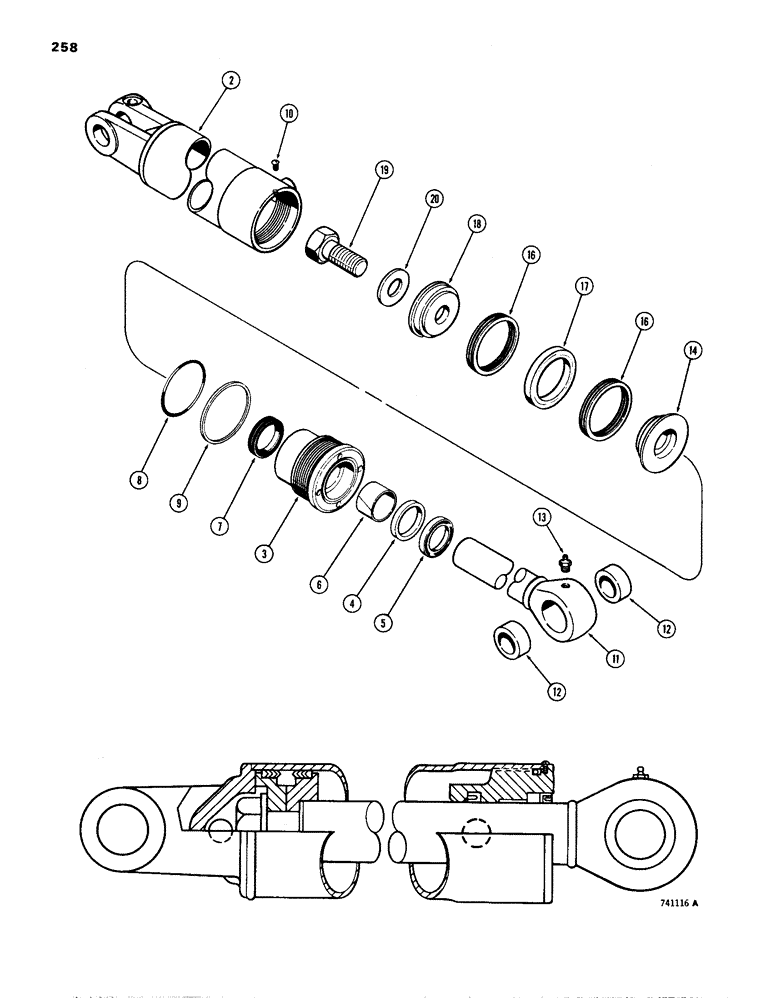

Запчасти Case W24B (258) - G34316 CLAM CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER (09) - CHASSIS

1

G34316

CYLINDER

- clam 4" dia x 10-1/2" stroke (102 m x 267 m) not shown, Includes: Ref. 2 - 20

2шт.

2

G32346

JACK BODY,20" L

TUBE - cylinder body

1шт.

G34331

GLAND

ASSEMBLY, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING - gland center bearing

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Seal Kit P/N G34335

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BEARING - center

1шт.

Part of Seal Kit P/N G34335

1шт.

7

D36971

RING

SEAL - piston rod, P/N G100778 can be used for extreme heat or code

1шт.

Part of Seal Kit P/N G34335

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G34335

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Kit P/N G34335

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #832 NC x 1/4"

1шт.

11

G34317

ROD

ASSEMBLY - piston, 2" dia (54 mm), Includes: Ref. 12

1шт.

12

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

1шт.

14

G33159

PISTON

- split, rod end

1шт.

G33239

PACKING

ASSEMBLY - piston, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit P/N G34335

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

D46930

PISTON

- split, bolt end

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

20

G32351

WASHER

- hardened

1шт.

G34335

REPAIR KIT

KIT- seal, Includes: Refs. 5-9 and P/N G33239

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.
