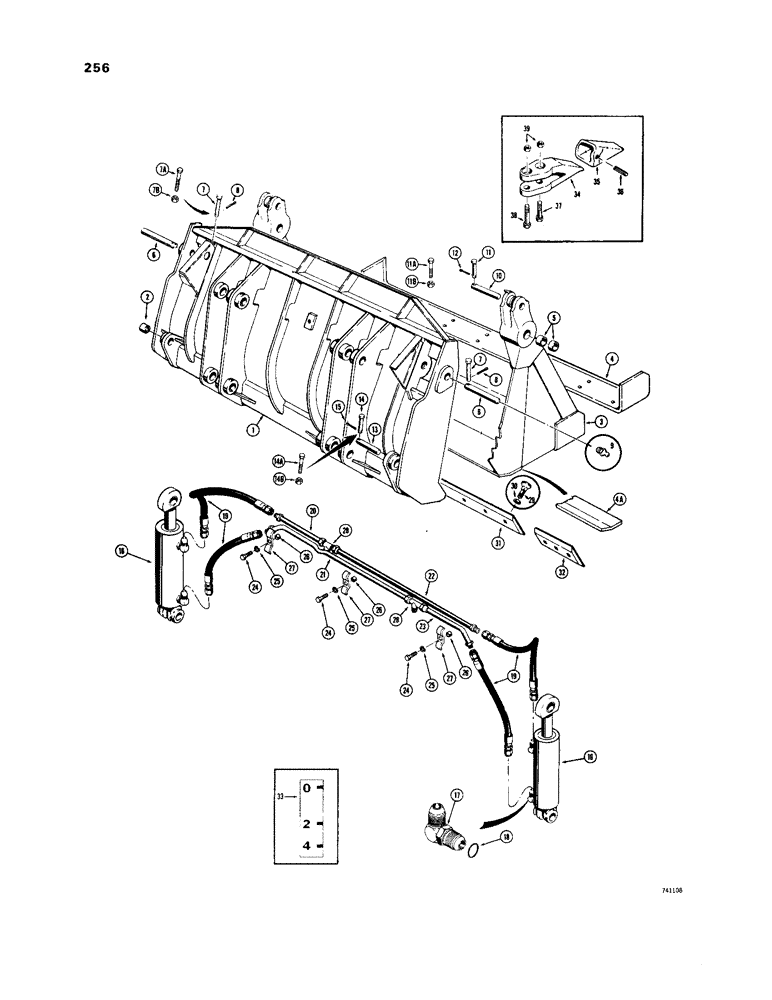

Запчасти Case W24B (256) - 4-IN-1 BUCKET (09) - CHASSIS

MACHITEM

BUCKET ASSEMBLY - 4-In-1, See Fig. 002, Includes: Ref. 2 - 8

1шт.

2

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BLADE ASSEMBLY - bucket

1шт.

D50436

BLOCK

BUSHING - clam cylinder mounting, closed end

2шт.

3

NSS

NOT SOLD SEPARAT

CLAM ASSEMBLY - bucket, Includes: Ref. 4 - 5

1шт.

4

D50729

EDGE, CUTTING

CLAM - bucket

1шт.

4a

D50428

PLATE

CUTTING EDGE - clam, front

1шт.

5

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- clam hinge

4шт.

6

D50727

PIN

-, Serial Range: blade-clam

2шт.

7

D47252

PIN

- clevis, use 13-668 bolt and 131-471 nut

2шт.

7a

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

2шт.

7b

131-206

NUT,3/8"-16

NUT - hex self lock, 3/8" - 16 NC

7шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

10

D50435

PIN,38.1mm OD x 124.46mm L

- clam cylinder retaining, rod end

2шт.

11

D47252

PIN

- clevis, use 23-668 bolt and 131-471 nut

2шт.

11a

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

2шт.

11b

131-206

NUT,3/8"-16

NUT - hex self lock, 3/8" - 16 NC

2шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

13

D51244

AXLE PIN,38.1mm OD x 99.06mm L

PIN - clam cylinder retaining, closed end

2шт.

14

D50746

CLEVIS PIN

PIN - clevis, use 14-852 bolt and 131-471 nut

2шт.

14a

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

HHCS - 1/2" - 16 NC x 3-1/4"

2шт.

14b

131-473

HARDWARE

NUT - hex self lock, 1/2" - 16 NC

2шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

16

REF

INSTRUCTION

CYLINDER - clam, parts list Fig. 258 or 259A

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING - adjustable, 90 degrees, Incl. Ref. 18

4шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

L50840

HOSE

- 24" (610 mm) long

4шт.

20

L46876

TUBE - LH clam cylinder, rod end to tee 20" L

1шт.

21

L46874

TUBE - LH clam cylinder, closed end to tee 4" L

1шт.

22

L46879

TUBE,36" L

- RH clam cylinder, rod end to tee

1шт.

23

L46883

TUBE,4" L

- RH clam cylinder, closed end to tee

1шт.

24

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

HHCS - 5/16" - 18 NC x 1-3/8"

3шт.

25

92-5

LOCK WASHER,5/16"

3шт.

26

D33316

CLAMP

SPACER - tube

3шт.

27

D33552

BUSHING

CLAMP - tube

3шт.

28

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- hydraulic, at bucket

2шт.

29

118-503

PLOW BOLT,3/4"-10 x 2 1/4", G8

BOLT - plow, 3/4" - 10 NC x 2-1/4"

1шт.

30

280954

NUT,3/4"-10, G5

- hex, 3/4" - 10 NC

19шт.

31

S209992

EDGE

CUTTING EDGE - blade, center

1шт.

32

S80476

EDGE

CUTTING EDGE - blade, end

2шт.

33

A17710

DECAL

- clam opening

1шт.

L32721

BUCKET TOOTH

TOOTH ASSEMBLY - bucket, Includes: Ref. 34 - 36

9шт.

34

NSS

NOT SOLD SEPARAT

SHANK - tooth bucket

1шт.

35

A17667

TIP

POINT - tooth bucket

1шт.

36

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, , Point mounting, bucket teeth 1/2" x 2 1/2", Slotted

1шт.

37

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Bucket teeth Hex, 5/8"-11 x 3", G5

9шт.

38

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

HHCS - 5/8" - 11 NC x 3-1/2", bucket teeth

9шт.

39

25-1010

NUT,5/8"-11, G5

Bucket teeth 5/8"-11, G5

18шт.
