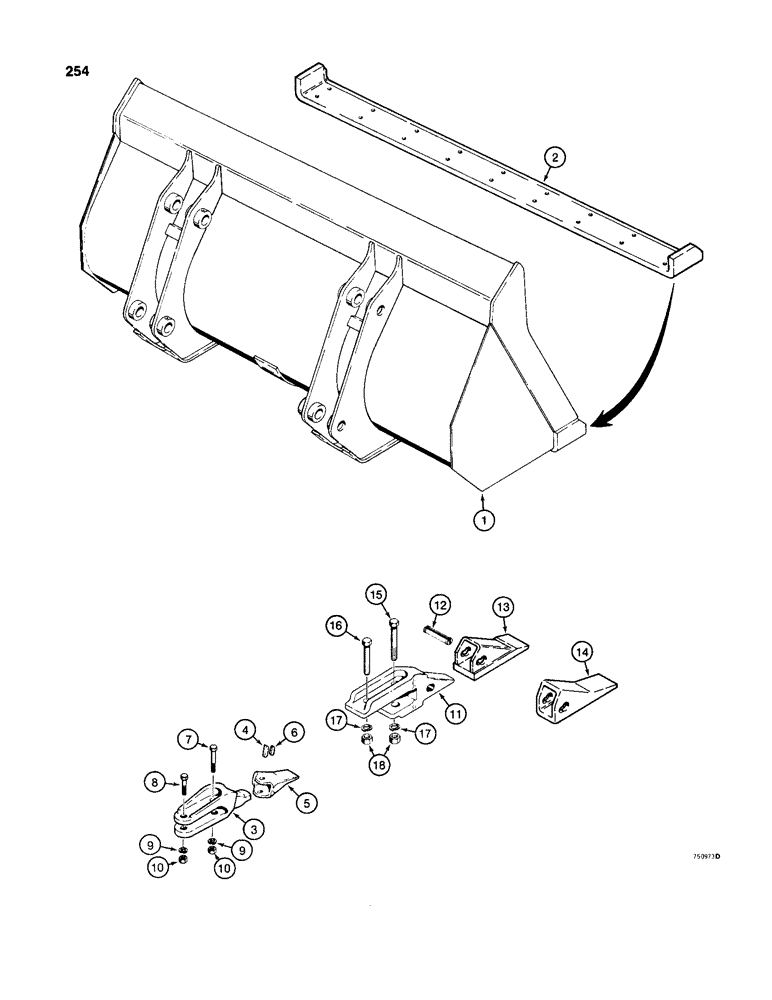

Запчасти Case W24B (254) - LOADER BUCKETS, 2-1/2" CU.YD. BUCKET - 96" WIDE (1.9 CU METRE - 2438 MM WIDE) (09) - CHASSIS

L57484

BUCKET ASSEMBLY - loader, machinery item, see Fig. 002, replaced by L72804, Includes: Ref. 1 and 2

1шт.

L72804

BUCKET ASSEMBLY - loader, machinery item, see Fig. 002, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L57494

EDGE

CUTTING EDGE - L57484 or L72804 bucket

1шт.

L54112

BUCKET ASSEMBLY - loader, machinery item, see Fig.002, replaced by L72751, 2-1/2 cu yd bucket - 104" wide (1.9 cu metre - 3642 mm wide), Includes: Ref. 1 and 2

1шт.

L72751

BUCKET ASSEMBLY - loader, machinery item, see Fig. 002, 2-1/2 cu yd bucket - 104" wide (1.9 cu metre - 3642 mm wide), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2-1/2 cu yd bucket - 104" wide (1.9 cu metre - 3642 mm wide)

1шт.

2

L54092

BLADE

CUTTING EDGE - L54112 or L72751 bucket, 2-1/2 cu yd bucket - 104" wide (1.9 cu metre - 3642 mm wide)

1шт.

L57342

BUCKET ASSEMBLY - loader, machinery item, see Fig. 002, replaced by L72788, 3 cu yd - 104 in wide (2.3 cu metre - 2642mm wide), Includes: Ref. 1 and 2

1шт.

L72788

BUCKET ASSEMBLY - loader, machinery item, see Fig. 002, 3 cu yd - 104 in wide (2.3 cu metre - 2642mm wide), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 3 cu yd - 104 in wide (2.3 cu metre - 2642mm wide)

1шт.

2

L54092

BLADE

CUTTING EDGE - L57342 or L72788 bucket, 3 cu yd - 104 in wide (2.3 cu metre - 2642mm wide)

1шт.

L100905

BUCKET TOOTH

TOOTH ASSEMBLY - bucket, ESCO tooth Co., Includes: Ref. 3 - 6

9шт.

3

NSS

NOT SOLD SEPARAT

SHANK - tooth bucket

1шт.

4

R35318

PIN

- tooth bucket

1шт.

5

R35317

POINT

- tooth bucket

1шт.

6

R35319

LOCK ASSY

LOCK - tooth bucket

1шт.

7

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Bucket teeth Hex, 5/8"-11 x 3 1/4", G5

9шт.

8

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8" - 11 NC x 2-3/4", bucket teeth

9шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth 5/8"

18шт.

10

25-1010

NUT,5/8"-11, G5

Bucket teeth 5/8"-11, G5

18шт.

L58824

BUCKET TOOTH

TOOTH ASSEMBLY - bucket, H and L Tooth Co, has fabricated point, order L105651, Includes: Ref. 11 - 14

9шт.

L105651

TOOTH

ASSEMBLY - bucket, H and L Tooth Co, has cast point, Includes: Ref. 11 - 14

9шт.

11

NSS

NOT SOLD SEPARAT

SHANK - tooth bucket

1шт.

12

D39448

PIN

FLEX PIN - tooth bucket

1шт.

13

D39090

POINT

- fabricated, interchangeable with L55608 point, bucket teeth

1шт.

14

L55608

POINT

- cast, interchangeable with D39090 point, bucket teeth

1шт.

15

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Bucket teeth Hex, 5/8"-11 x 3 1/4", G5

9шт.

16

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8" - 11 NC x 2-3/4", bucket teeth

9шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Bucket teeth 5/8"

18шт.

18

25-1010

NUT,5/8"-11, G5

Bucket teeth 5/8"-11, G5

18шт.
