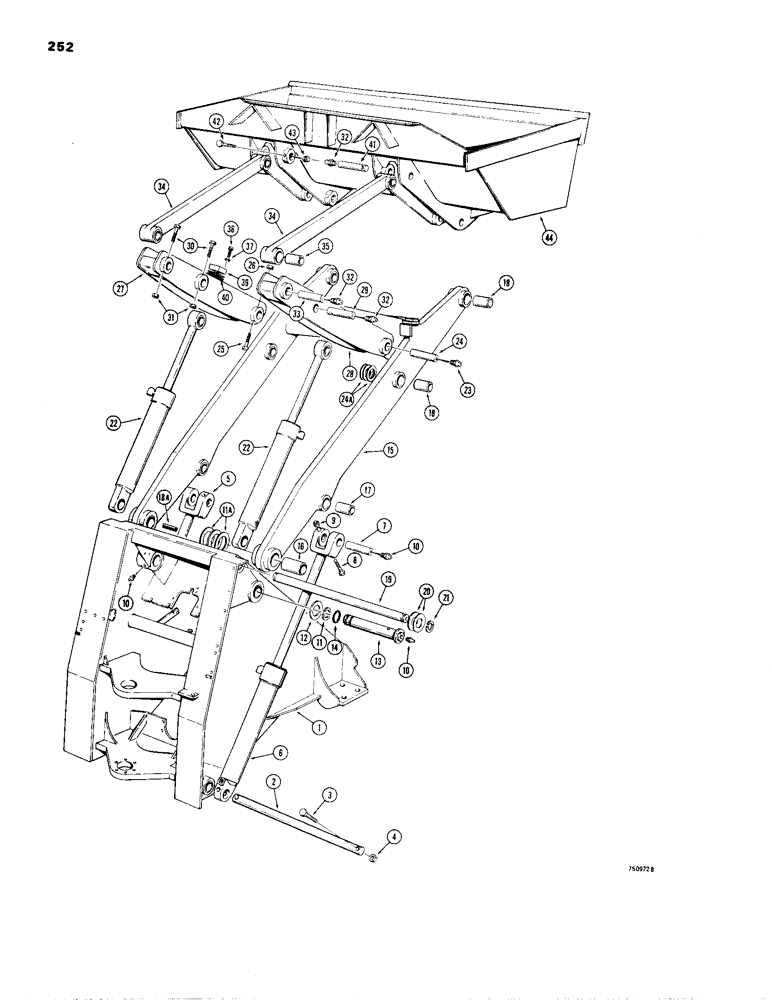

Запчасти Case W24B (252) - LOADER LIFT FRAME AND RELATED PARTS (09) - CHASSIS

1

REF

INSTRUCTION

FRAME ASSEMBLY - front, see Fig. 250 for bushings

1шт.

2

L19489

SHAFT

1шт.

3

26-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

HHCS - 5/8" - 11 NC x 5-1/2"

2шт.

4

131-64

LOCK NUT,5/8"-11, GC

NUT - hex self lock, 5/8" - 11 NC

2шт.

5

REF

INSTRUCTION

CYLINDER - LH lift, parts list Fig. 226

1шт.

6

REF

INSTRUCTION

CYLINDER - RH lift, parts list Fig. 226

1шт.

7

L15725

PIN

- mounting, lift cylinder to lift arm frame

2шт.

8

26-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

HHCS - 5/8" - 11 NC x 5"

2шт.

9

131-64

LOCK NUT,5/8"-11, GC

NUT - hex self lock, 5/8" - 11 NC

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

6шт.

11

L16016

RING

- pin retaining, lift frame

2шт.

11a

L45001

WASHER

SHIM - .075" (1.9 mm) thick

1шт.

12

L74715

WASHER

- special

4шт.

13

L57730

PIN

- lift, Serial Range: frame-chassis

2шт.

14

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

15

L26902

FRAME ASSEMBLY - loader lift (used without 4-in-1 bucket), Includes: Ref. 16 - 18A

1шт.

15

L73568

ARM

FRAME ASSEMBLY - loader lift (used with 4-in-1 bucket), Includes: Ref. 16 - 18A

1шт.

16

L15804

BUSHING

- lift, Serial Range: arm-chassis

2шт.

17

L15802

BUSHING,63.75mm ID x 75.48mm OD x 89mm L

- lift arm to lift cylinder

2шт.

18

L15803

BUSHING

- lift arm to bellcrank, Serial Range: and-bucket

4шт.

18a

135-398

GROOVED PIN,1/2" x 2 1/2", Type F

PIN - roll, 1/2" x 2-1/2", if used

1шт.

19

L26677

SHAFT

- tilt cylinder pivot

1шт.

20

L16018

WASHER

- special, .312" (7.9 mm) thick

1шт.

20

L19697

WASHER

- special, .375 (9.5 mm) thick

1шт.

21

L16015

RING

- pin retaining

2шт.

22

REF

INSTRUCTION

CYLINDER - bucket tilt, parts list Fig. 228

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

24

L15689

AXLE PIN,50.8mm OD x 234.19mm L

PIN - bellcrank to lift arm

2шт.

24a

L45013

WASHER

SHIM - .0745" (1.9 mm) thick

1шт.

25

26-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

HHCS - 1/2" - 13 NC x 5"

2шт.

26

131-654

LOCK NUT,1/2"-13, GB

NUT - hex self lock, 1/2" - 13 NC

2шт.

27

L53683

DIPPER

BELLCRANK ASSEMBLY - bucket, LH

1шт.

28

L53680

CRANK LEVER

BELLCRANK ASSEMBLY - bucket, RH

1шт.

29

L40421

PIN,50.8mm OD x 202.44mm L

- bellcrank to tilt cylinder

2шт.

30

26-880

BOLT,Hex, 1/2" - 13 x 5", Gr 8

HHCS - 1/2" - 13 NC x 5"

4шт.

31

131-654

LOCK NUT,1/2"-13, GB

NUT - hex self lock, 1/2" - 13 NC

4шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

8шт.

33

L15689

AXLE PIN,50.8mm OD x 234.19mm L

PIN - bellcrank to bucket link

2шт.

34

L15808

LINK

- bucket, Includes: Ref. 35

2шт.

35

L15803

BUSHING

- link

2шт.

36

61-824

HEX SOC SCREW,1/2"-13 x 1 1/2"

- hex socket head, 1/2" - 13 NC x 1-1/2"

4шт.

37

92-8

LOCK WASHER,1/2"

4шт.

39

L41558

BLOCK

- bellcrank stop

2шт.

40

L14452

SHIM

- .0598" (1.5 mm) thick

1шт.

41

L15800

PIN,50.8mm OD x 274.32mm L

- loader arm and, Serial Range: link-bucket

4шт.

42

26-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

HHCS - 5/8" - 11 NC x 5"

4шт.

43

131-64

LOCK NUT,5/8"-11, GC

NUT - hex self lock, 5/8" - 11 NC

4шт.

44

REF

INSTRUCTION

BUCKET - loader, see Fig. 254 and 256 for buckets

1шт.
