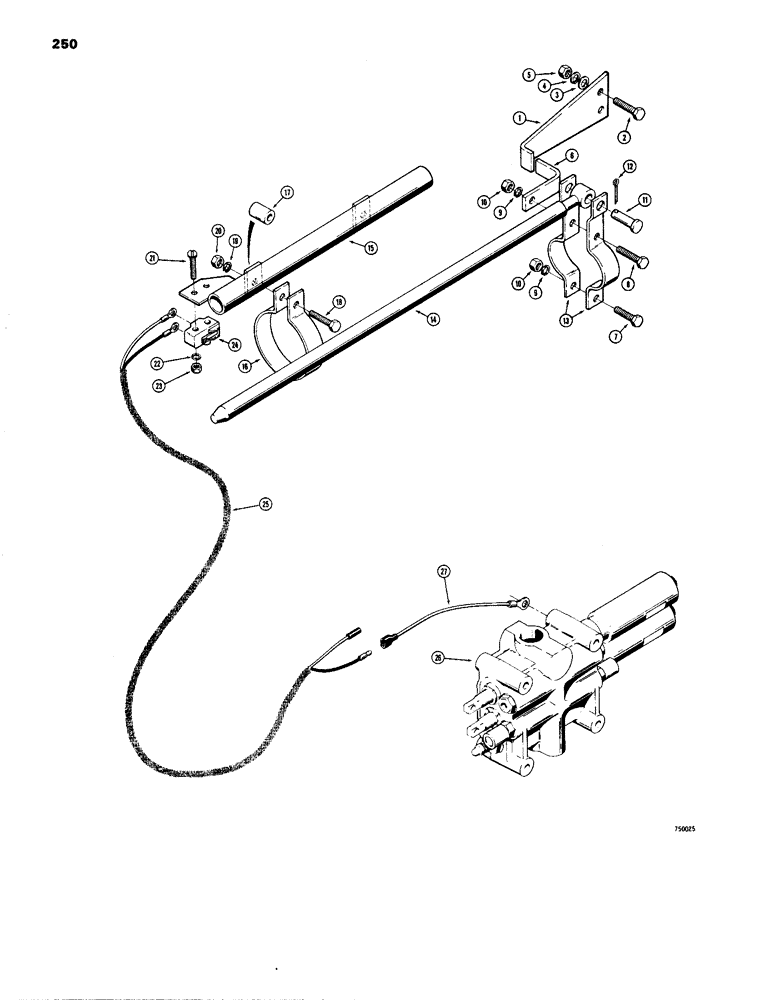

Запчасти Case W24B (250) - LOADER BUCKET RETURN TO DIG (09) - CHASSIS

1

L15066

INDICATOR

- return-to-dig, on bell crank

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

6

L19459

INDICATOR

- return-to-dig, on cylinder

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

11

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - clevis

1шт.

12

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

1шт.

13

L16198

CLAMP

- actuating, rod eye

2шт.

14

L25954

STEM

ROD - actuating

1шт.

15

L40442

GUIDE

- rod, return-to-dig

1шт.

16

L40440

STRAP

BRACKET - guide mounting

2шт.

17

L17446

SPACER

- guide bracket

2шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

169-66

RHMS - #6 - 32 NC x 1"

2шт.

22

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

23

129-15

NUT,#6-32

2шт.

24

L54683

SWITCH

- micro, return-to-dig

1шт.

25

L58363

HARNESS

- return-to-dig

1шт.

26

REF

INSTRUCTION

VALVE - hydraulic, see figure 246 and 248 for valve

1шт.

27

L50380

ELECTRICAL WIRE

WIRE - valve to solenoid ground

1шт.
