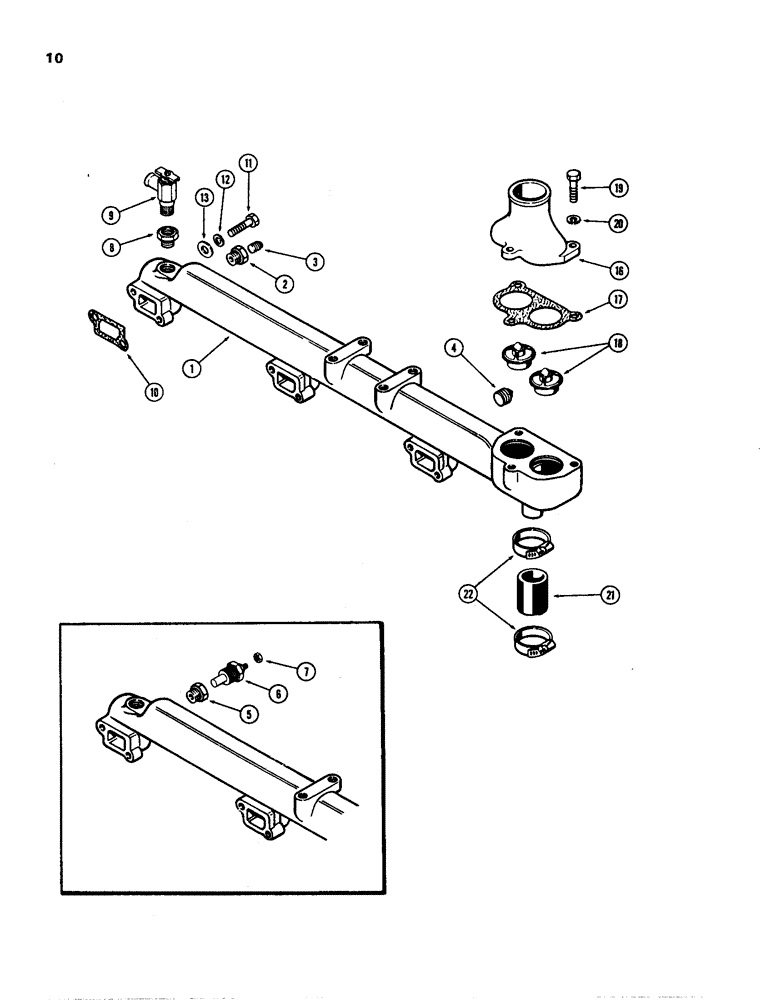

Запчасти Case W24B (010) - WATER MANIFOLD AND THERMOSTAT, (504BD) AND (504BDT) DIESEL ENGINES. (02) - ENGINE

A44088

MANIFOLD

ASSY - water, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - water

1шт.

2

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

Bushing (Not used if sending unit is used) Hex, 3/4" x 3/8" NPT

1шт.

3

221-1843

PLUG

- 3/8" PT hex socket head (Used with 221-1092 bushing)

1шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- 3/4" PT, hex socket head

1шт.

5

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer (3/4" PT to 1/2" PT) (Used with sending unit)

1шт.

6

L56217

UNIT

- temperature sending (1/2" PT)

1шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- sending unit terminal (#10 NF hex)

1шт.

8

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer (1/2" PT to 3/8" PT)

1шт.

9

A16764

VALVE

- water control (3/8" PT)

1шт.

11

A58637

MANIFOLD GASKET

-, Serial Range: manifold-head

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifold to head Hex, 3/8"-16 x 2", G5

6шт.

12

92-6

LOCK WASHER,3/8"

6шт.

13

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16"

6шт.

16

A58638

HOUSING

- thermostat

1шт.

17

A58639

GASKET

-, Serial Range: housing-manifold

1шт.

18

A57641

THERMOSTAT

- 180 degrees

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing to manifold Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

A58640

HOSE

- manifold to pump, 1-1/4" ID x 2-3/8"

1шт.

22

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

1шт.
