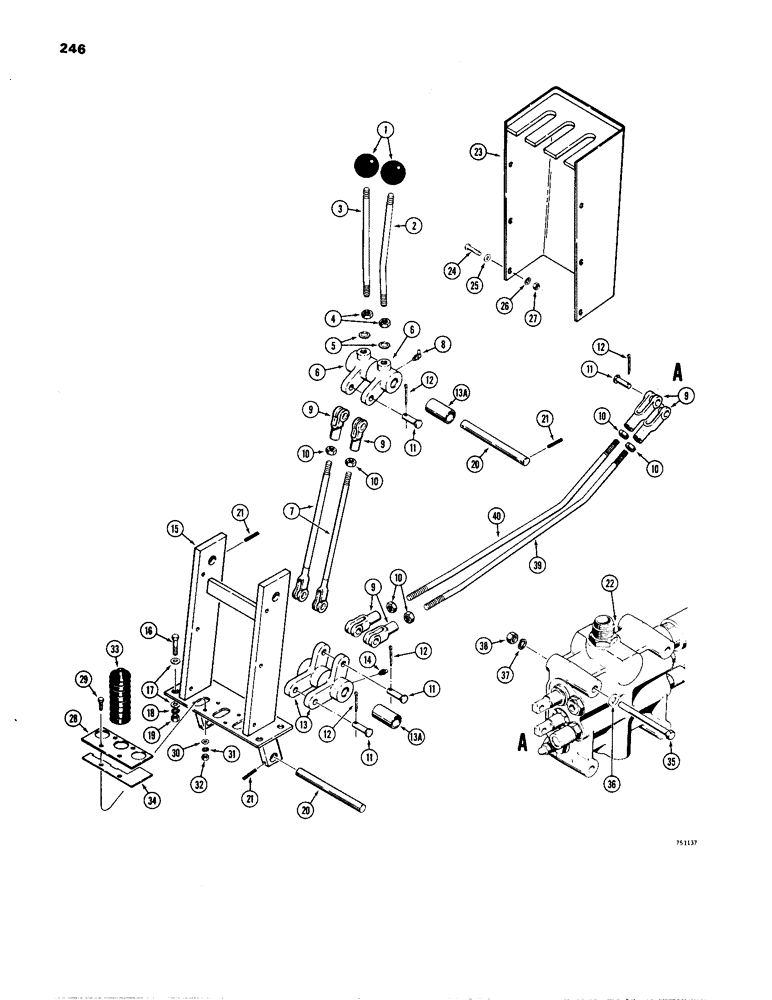

Запчасти Case W24B (246) - LOADER CONTROL VALVE AND LEVERS (2 SPOOL) (08) - HYDRAULICS

1

L56064

KNOB

- control lever

2шт.

2

L59087

LEVER

- lift control

1шт.

3

L59089

LEVER

- tilt control

1шт.

4

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex self lock, 5/8" - 18 NF

2шт.

5

193-50

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER - lock, external tooth, 5/8"

2шт.

6

L59090

DIPPER

BELLCRANK - levers, upper

2шт.

7

L59968

LINK

- control

2шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

9

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - control

6шт.

10

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, lock, 1/2" - 20 NF

6шт.

11

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

8шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

8шт.

13

L51047

DIPPER

BELLCRANK - levers, lower

2шт.

13a

L55379

BUSHING,19.05mm ID x 26.9mm OD x 54mm L

SPACER - bellcrank

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight

2шт.

15

L76950

SUPPORT

- controls

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

20

L47816

SHAFT

- bellcrank

2шт.

21

138-223

LOCK PIN,1/8" x 2", Slotted

PIN - roll, 1/2" x 2"

4шт.

22

L70432

CONTROL VALVE

VALVE ASSEMBLY - 2 spool, production, parts list Fig. 230

1шт.

22

L70410

SPOOL

VALVE ASSEMBLY - 2 spool, service replacement, parts list Fig. 230.

1шт.

23

L59992

COVER

- controls, ROPS canopy models

1шт.

24

182-131

SCREW,Sl Pan Hd, #10 - 24 x 1 1/4"

- #10 - 24 NC x 1-1/4"

6шт.

25

95-3

WASHER,#12

- flat, #10

6шт.

26

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

27

129-7

NUT,Hex, #10 - 24

- hex, #10 - 24 NC

6шт.

28

L76911

PLATE

- seal retainer, cab models

1шт.

29

113-1003

SCREW,Hex, #10 - 24 x 3/4", Gr 5

4шт.

30

95-3

WASHER,#12

- flat, 3/16"

4шт.

31

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

32

129-7

NUT,Hex, #10 - 24

- hex, #10

4шт.

33

L59927

SEAL

BELLOWS - seal, cab models

2шт.

34

L70085

SEAL

- dirt

1шт.

35

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

36

95-8

WASHER,1/2"

flat 1/2"

3шт.

37

92-8

LOCK WASHER,1/2"

3шт.

38

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

39

L74925

ROD

- lift spool

1шт.

40

L74924

ROD

- tilt spool

1шт.
