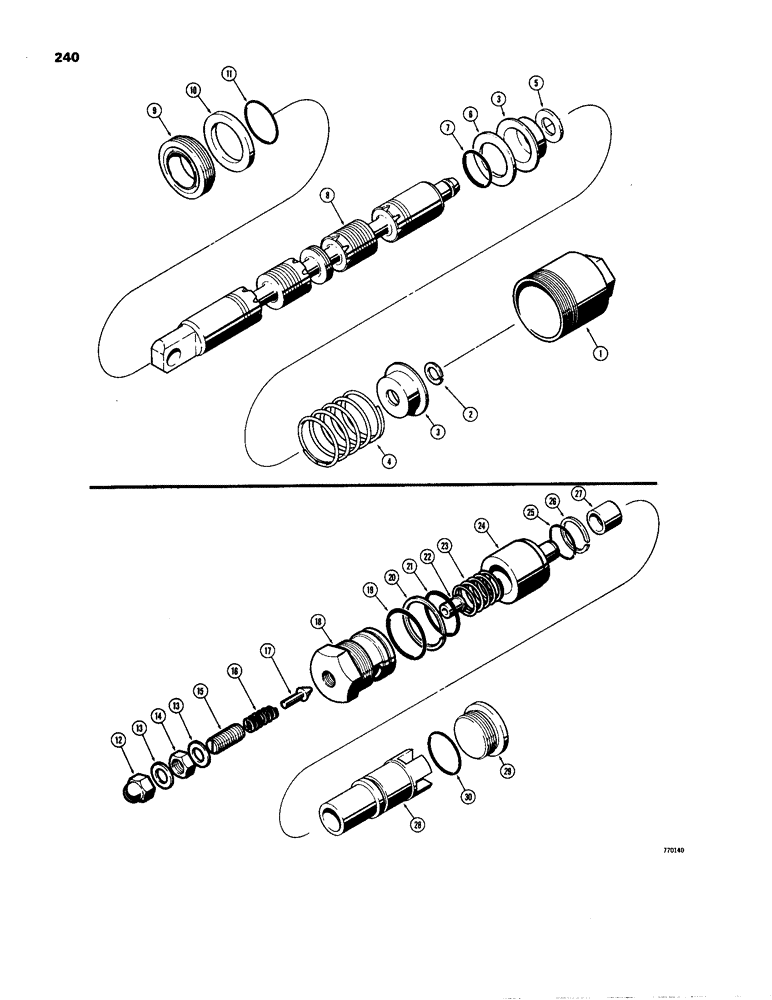

Запчасти Case W24B (240) - 4-IN-1 BUCKET CLAM SPOOLS (08) - HYDRAULICS

L33751

SPOOL

ASSEMBLY - L71422 valve, clam, Includes: Ref. 1 - 8

1шт.

L32592

SPOOL

ASSEMBLY - L79043 valve, clam, Includes: Ref. 1 - 8

1шт.

1

A13166

WASHER

COVER - L33751 spool end

1шт.

1

A13165

CAP

COVER - L32592 spool end

1шт.

2

A27020

RING

- retaining, at spool end

1шт.

3

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

4

A13182

VALVE SPRING

SPRING - L33751 spool centering

1шт.

4

A13182

VALVE SPRING

SPRING - L32592 spool centering

1шт.

5

W12113

BUSHING

SPACER - spring seat, L33751 spool

1шт.

5

A25286

WASHER

SPACER - spring seat, L32592 spool

1шт.

6

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

7

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve, clam

1шт.

9

L32608

RETAINER

AND WIPER - spool

1шт.

10

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

11

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

L32614

VALVE

ASSEMBLY - main relief, Includes: Ref. 12 - 30

1шт.

12

129-514

CROWN NUT,Low, 5/16" - 24

- acorn, 5/16" - 24 NF, main relief valve

1шт.

13

D26270

WASHER, SEALING

WASHER - special, main relief valve

2шт.

14

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, lock, 5/16" - 24 NF, main relief valve

1шт.

15

176-298

SCREW,Sl Hdls, 5/16" - 24 x 1 1/2", Flat Pt

- set, relief valve

1шт.

16

D26268

SPRING

- pilot, main relief valve

1шт.

17

D26267

PLUNGER

- relief valve

1шт.

18

L32615

CAP

- relief valve

1шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large, main relief valve

1шт.

20

L32619

RING

- backup, valve cap, main relief

1шт.

21

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- small, main relief valve

1шт.

22

D26266

SEAT

- plunger, main relief valve

1шт.

23

L32617

SPRING

- relief valve

1шт.

24

L32620

VALVE POPPET

POPPET - relief valve

1шт.

25

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

main relief valve

1шт.

26

L32619

RING

- backup, main relief valve

1шт.

27

L32616

SLEEVE

- relief valve

1шт.

28

L32618

VALVE

SEAT - relief valve

1шт.

29

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

end, spool, main relief valve, Includes Ref 30 Hex Soc, 1 3/16"-12 ORB

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

main relief valve

1шт.
