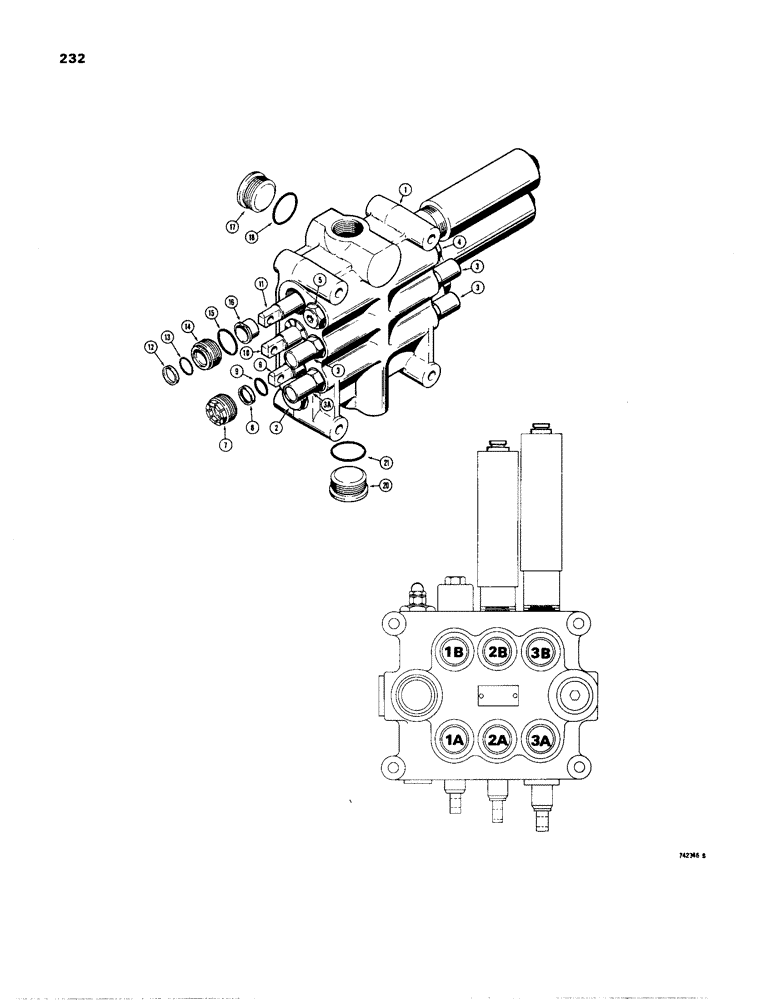

Запчасти Case W24B (232) - LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS

L70433

VALVE

- 3 spool, production

1шт.

L71422

VALVE

- 3 spool, service replacement

1шт.

Secondary relief valve in port 2A of L71422 valve must be reset to correct pressure setting for this machine.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Fig. 240

1шт.

3

L32633

VALVE

- secondary relief, parts list Fig. 244

1шт.

4

L35320

VALVE

- check, used in port 3B, parts list Fig. 242

1шт.

5

L35321

VALVE

- check, regeneration, used in port 3A, parts list Fig. 242.

1шт.

6

L32592

SPOOL

- clam, L70433 valve, parts list Fig. 240

1шт.

6

L32592

SPOOL

- clam, L71442 valve, parts list Fig. 240

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt and clam spool, Includes: Ref. 7 - 9

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

10

D63369

SPOOL

- tilt, L70432 valve, parts list Fig. 234

1шт.

10

D71226

SPOOL

- tilt, L71422 valve, parts list Fig. 236

1шт.

11

D71227

SPOOL

- lift, L70433 valve, parts list Fig. 238

1шт.

11

D63370

SPOOL

- lift, L71422 valve, parts list Fig. 238

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool, Includes: Ref. 12 - 16

1шт.

12

A28211

OIL SEAL

WIPER - spool

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- small

1шт.

14

L32612

RETAINER

- seal

1шт.

15

L32613

O-RING

- large

1шт.

16

L32611

SLEEVE

- spool

1шт.

17

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex socket head, Includes: Ref. 18

2шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.
