(226) - G34738 & G34739 LOADER LIFT CYL, G101430 & G101431 LOADER LIFT CYL TUBE IS STAMPED W/CYL PART NUMBER

Запчасти Case W24B (226) - G34738 & G34739 LOADER LIFT CYL, G101430 & G101431 LOADER LIFT CYL TUBE IS STAMPED W/CYL PART NUMBER (08) - HYDRAULICS

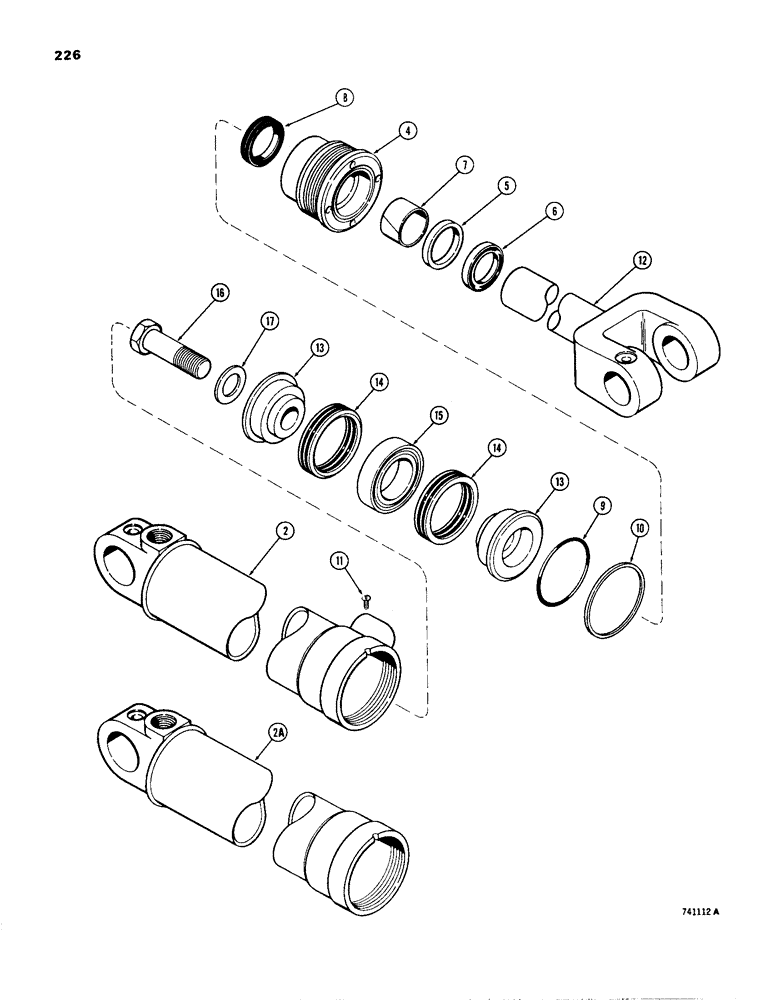

Схема запчастей Case W24B - (226) - G34738 & G34739 LOADER LIFT CYL, G101430 & G101431 LOADER LIFT CYL TUBE IS STAMPED W/CYL PART NUMBER (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G101430

HYDRAULIC CYLINDER,Double Acting, 76.2mm Rod, 879.6mm Stroke

CYLINDER - RH, 5" (127 mm) x 34-5/8" (880 mm) stroke, tractor sn 9126810 and after, Includes: Ref. 2

1шт.

G101431

CYLINDER

- LH, 5" (127 mm) x 34-5/8" (880 mm) stroke, tractor sn 9126810 and after, Includes: Ref. 2

1шт.

2

G101432

TUBE,44.31" L

- G101430 cylinder

1шт.

2

G101433

TUBE,44.31" L

- G101431 cylinder

1шт.

G34738

CYLINDER BLOCK

CYLINDER - RH, 5" (127 mm) x 34-1/4" (868 mm) stroke, used before tractor sn 9126810, Includes: Ref. 2A - 17

1шт.

G34739

CYLINDER

- LH, 5" (127 mm) x 34-1/4" (868 mm) stroke, used before tractor sn 9126810, Includes: Ref. 2A - 17

1шт.

2a

G34736

TUBE

- G34738 cylinder

1шт.

2a

G34737

TUBE

- G34739 cylinder

1шт.

G34735

GLAND

ASSEMBLY, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - gland center bearing

1шт.

6

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N G34753

1шт.

7

G34313

BEARING

- center

1шт.

Part of Seal Kit P/N G34753

1шт.

8

D45572

ROD

SEAL - rod, P/N G100802 can be used for extreme heat or code

1шт.

Part of Seal Kit P/N G34753

1шт.

Part of Rod Seal P/N G100802

1шт.

9

49393

O-RING,4.734" ID x 5.012" OD x 0.139"

1шт.

Part of Seal Kit P/N G34753

1шт.

10

S92639

RING

- backup

1шт.

Part of Seal Kit P/N G34753

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8 - 32 x 1/4", self tapping

1шт.

12

G34135

ROD

- piston, 3" (76 mm) dia

1шт.

13

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split

2шт.

14

D47206

PACKING

ASSEMBLY - piston "V" type

2шт.

Part of Seal Kit P/N G34753

1шт.

15

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

16

28-2056

BOLT,Hex, 1-1/4" - 12 x 3-1/2", Gr 8

HHCS - 1-1/4" - NF x 3-1/2", grade 8

1шт.

17

G32351

WASHER

- hardened

1шт.

G34753

SEAL

KIT - seal, Includes: Ref. 6 - 10 and 14

1шт.

G100802

SEAL

- rod, service option - extreme heat or cold

1шт.
