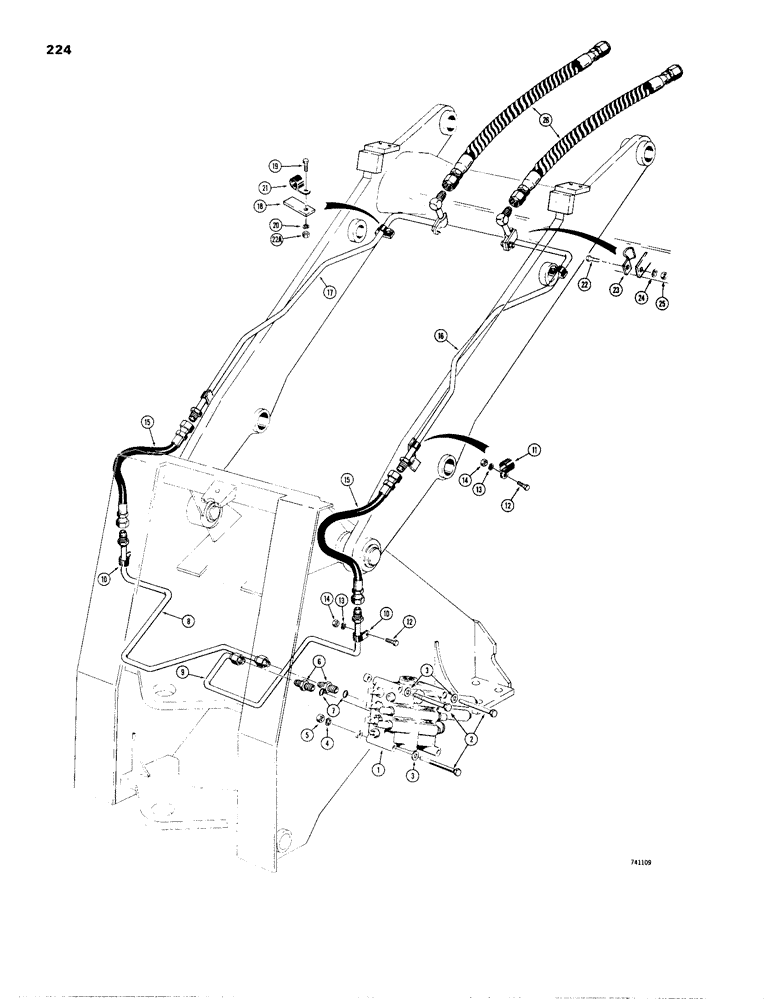

Запчасти Case W24B (224) - 4-IN-1 BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic, 3 spool, see figure 248

1шт.

2

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

2185077

FITTING - male, straight, Includes: Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

L56195

PIPE,0.75" OD

TUBE - at valve

1шт.

9

L56193

TUBE,0.75" OD

- at valve

1шт.

10

51200329

CLIP

- tube retaining

2шт.

11

R14668

CLAMP

- tube

2шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

15

D42969

HOSE

- 36" (914 mm) long

2шт.

16

L46966

TUBE,59, 18.2" L

- hydraulic, RH frame

1шт.

17

L46967

TUBE,59, 18.2" L

- hydraulic, LH frame

1шт.

18

L55044

BRACKET

- tube mounting

2шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

49891

CLAMP

- tube

2шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

22a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

23

A12308

CLAMP

- tube

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

26

L48756

HOSE

- 53" (1346 mm) long

2шт.
