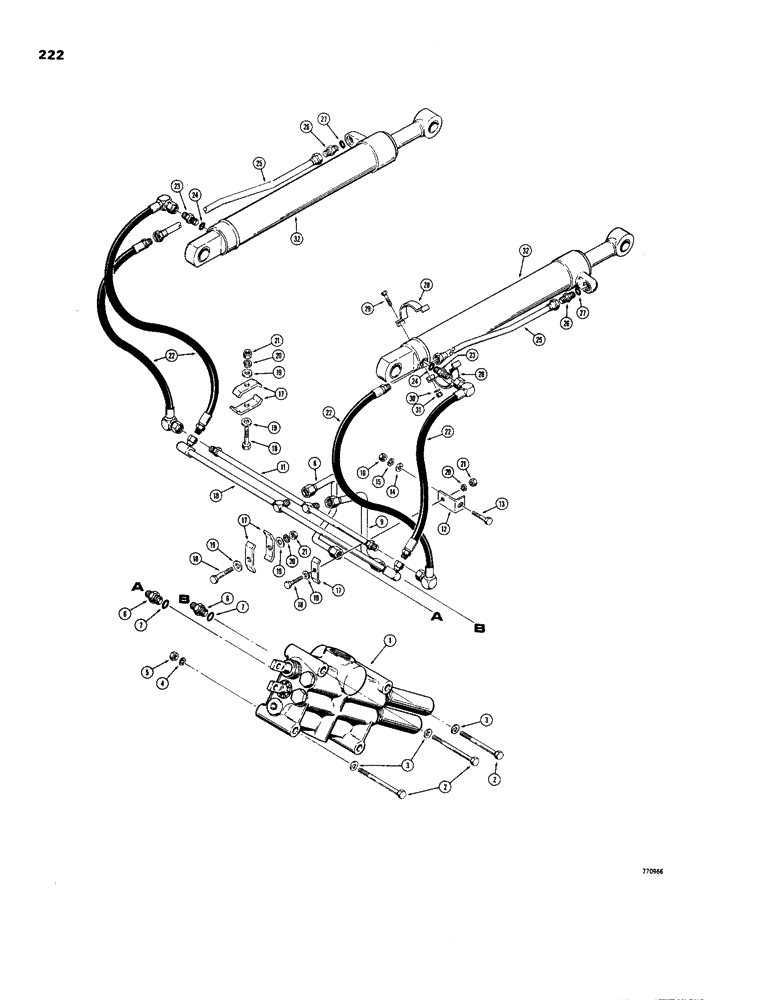

Запчасти Case W24B (222) - LOADER BUCKET TILT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic control, see figures 246 and 248 for proper valves.

1шт.

2

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 1/2" - 13 NC

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

L52671

TUBE ASSY.,1" OD

TUBE - to manifold and closed end of cylinders

1шт.

9

L70911

TUBE,1" OD x 15.66, 7.2" L

- to manifold and rod end of cylinders

1шт.

10

L52675

MANIFOLD

- to closed end of cylinders

1шт.

11

L70923

TUBE,1" OD x 39.4" L

MANIFOLD - to rod end of cylinders

1шт.

12

L17787

BRACKET - tube clamping

2шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

R15257

CLAMP

- tube

6шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

22

L17745

HOSE

ASSEMBLY

4шт.

Replaced by D56094 Hose Assy, 218-5110 Elbow, and 218-5234 Elbow

1шт.

23

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

male, straight (replaced 218-5069), Incl. Ref. 24 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

L17789

TUBE,1" OD x 32.2, 1.9" L

- hydraulic, at rod end of cylinder

2шт.

26

L46238

HYD CONNECTOR

FITTING - male, straight, Includes: Ref. 7

2шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

L17785

CLAMP

- tube

4шт.

29

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

32

REF

INSTRUCTION

CYLINDER - bucket, parts list figure 228

2шт.
