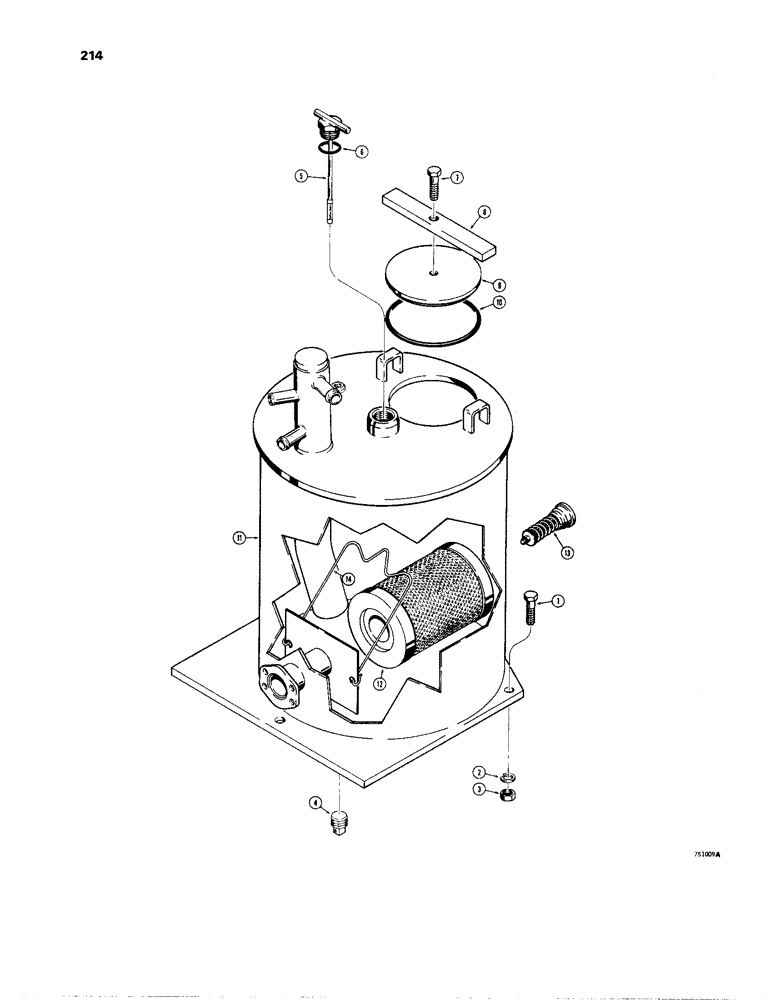

Запчасти Case W24B (214) - HYDRAULIC RESERVOIR AND RELATED PARTS (08) - HYDRAULICS

1

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

3шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3

25-1010

NUT,5/8"-11, G5

3шт.

L74190

TANK

RESERVOIR - hydraulic, Includes: Ref. 4 - 11

1шт.

4

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

PLUG - magnetic drain

1шт.

5

L16680

GAUGE

- oil level

1шт.

6

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

7

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

1шт.

8

L50741

BAR

- cover holddown

1шт.

9

L55406

COVER

- hydraulic tank

1шт.

10

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

1шт.

11

L55422

TANK

RESERVOIR - hydraulic

1шт.

12

L50384

FILTER, ELEMENT

FILTER - hydraulic tank

1шт.

13

NSS

NOT SOLD SEPARAT

VALVE - relief, bypass

1шт.

14

L51089

SPRING

- filter holddown

1шт.
