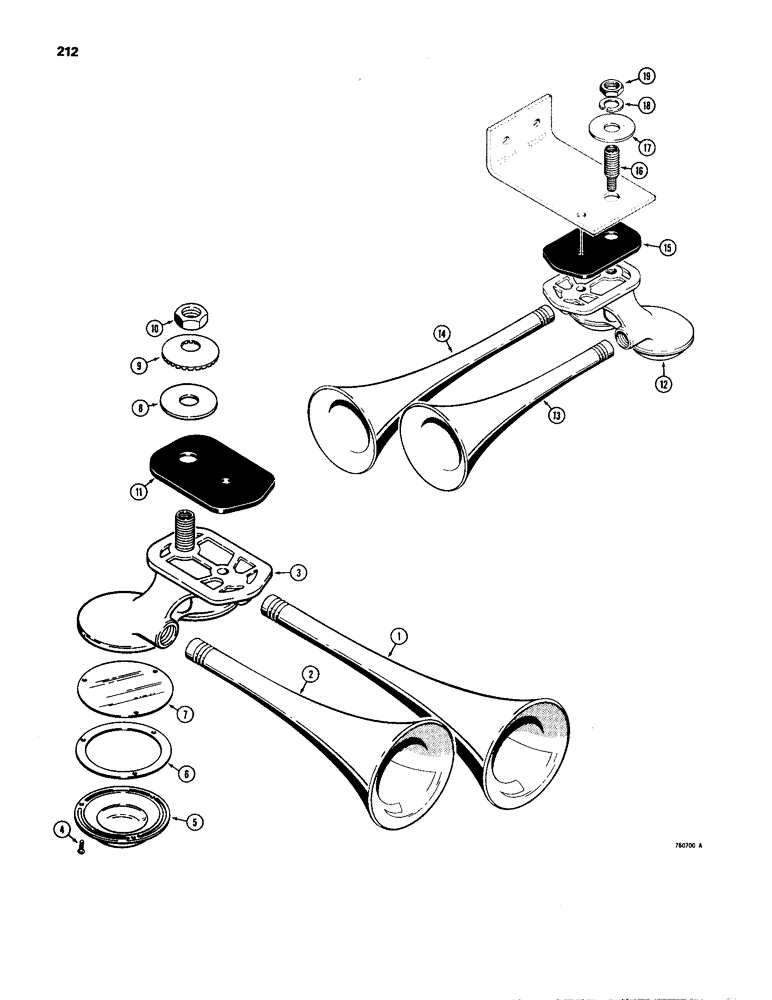

Запчасти Case W24B (212) - L76560 HORN (08) - HYDRAULICS

L76560

HORN

ASSEMBLY, Includes: Ref. 1 - 11

1шт.

1

D76966

HORN

- long

1шт.

2

D76967

HORN

- short

1шт.

3

NSS

NOT SOLD SEPARAT

BODY

1шт.

D76968

KIT

- diaphragm, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW

6шт.

5

NSS

NOT SOLD SEPARAT

COVER

2шт.

6

NSS

NOT SOLD SEPARAT

GASKET

2шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM

2шт.

8

NSS

NOT SOLD SEPARAT

WASHER - flat, 5/8"

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - lock, special

1шт.

10

128-127

NUT - hex, 5/8" - 18 NF

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET

1шт.

L50225

HORN

ASSEMBLY - air, Includes: Ref. 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

MOTOR AND BODY - horn, L50225

1шт.

13

L33784

HORN

- high pitch, 10-3/4" long (273 mm), L50225

1шт.

14

L33785

HORN

- low pitch, 13-1/3" long (339 mm), L50225

1шт.

L33786

KIT

- horn mounting, L50225, Includes: Ref. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

PAD - mounting, L50225 horn

1шт.

16

NSS

NOT SOLD SEPARAT

ADAPTER - air line to horn, L50225

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - special, L50225 horn

1шт.

18

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal lock, 5/8" plated, L50225 horn

1шт.

19

129-127

NUT,5/8"-18, G5

L50225 horn 5/8"-18, G5

1шт.
