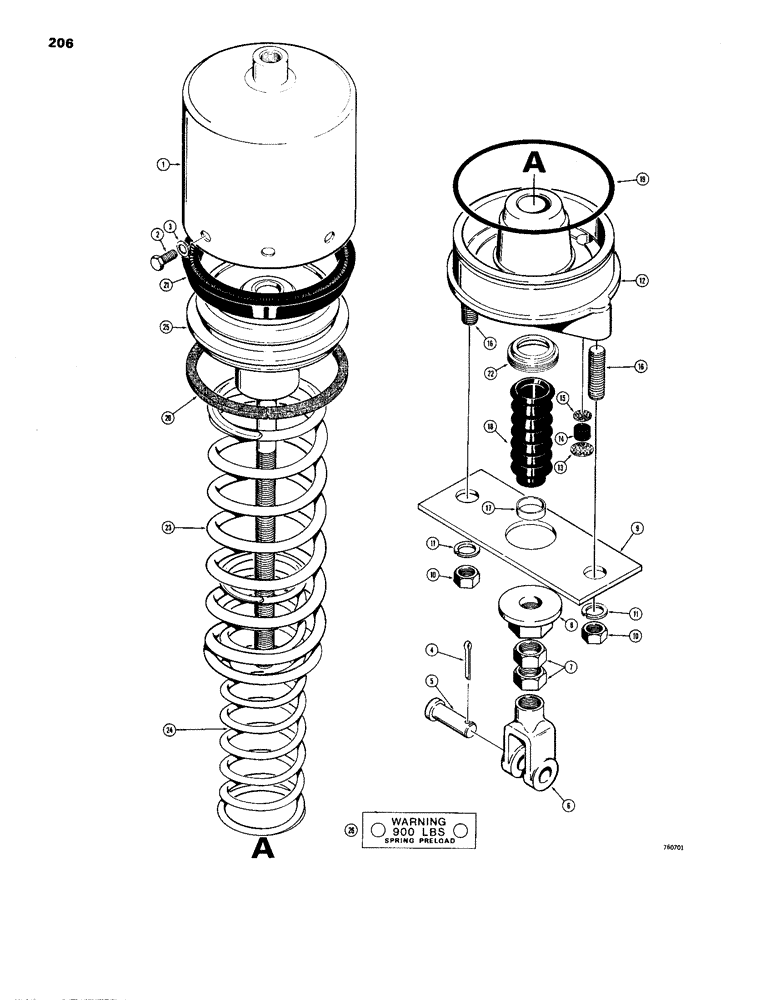

Запчасти Case W24B (206) - L48127 CHAMBER - PARKING BRAKE (07) - BRAKES

L48127

CHAMBER

ASSEMBLY, Includes: Ref. 1 - 26

1шт.

1

L33640

CYLINDER

- safety chamber

1шт.

2

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

8шт.

3

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

8шт.

4

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

5

L33649

AXLE PIN

PIN - clevis, special

1шт.

6

L33648

CLEVIS COUPLING

CLEVIS - piston rod

1шт.

7

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex self lock, 5/8" - 11 NC, plated

2шт.

8

NSS

NOT SOLD SEPARAT

PLATE AND NUT - stop

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE - mounting

1шт.

10

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8", plated

2шт.

11

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

NSS

NOT SOLD SEPARAT

HEAD - spring retaining

1шт.

13

L32540

RETAINER

- breather

1шт.

14

L32539

FILTER CARTRIDGE

FILTER - breather

1шт.

15

L32538

SCREEN

- breather

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - chamber mounting

2шт.

L33650

KIT

- repair, chamber, Includes: Ref. 17 - 21

1шт.

17

L33656

STRAP

RETAINER - boot, outer

1шт.

18

L33655

BOOT

- rod protector

1шт.

19

L33654

O-RING,4-3/8" ID x 0.139" Width

1шт.

20

L33653

RETAINER

SEAL - felt, piston

1шт.

21

L33652

SEAL

CUP SEAL - piston

1шт.

22

L33644

RETAINER

- boot, inner

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - piston, outer

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - piston, inner

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON AND PUSH ROD ASSEMBLY - chamber

1шт.

26

L33921

TAG - warning

1шт.
