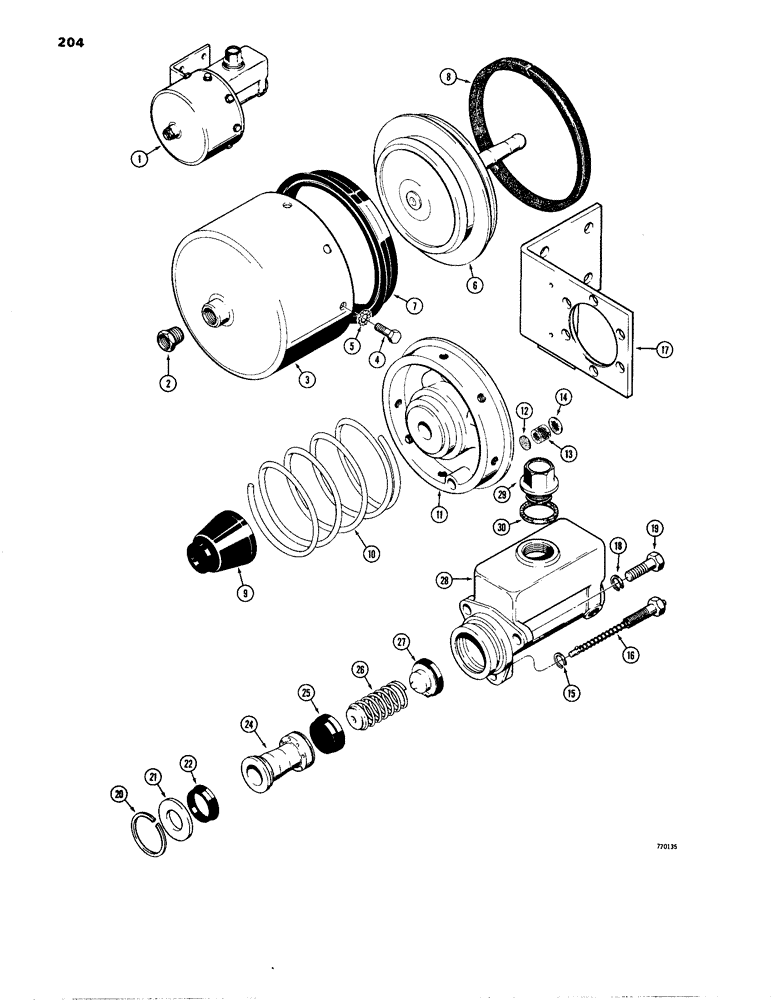

Запчасти Case W24B (204) - BRAKE CYLINDER (07) - BRAKES

1

L40512

CYLINDER

MASTER CYLINDER ASSEMBLY - brake, front axle, Includes: Ref. 2 - 30

1шт.

1

L40663

CYLINDER

MASTER CYLINDER ASSEMBLY - brake, rear axle, Includes: Ref. 2 - 30

1шт.

L32533

AIR TANK

AIR CHAMBER ASSEMBLY - brake, Includes: Ref. 2 - 16

1шт.

2

221-87

REDUCER,1/2" NPT x 1/8" NPT

BUSHING - 3/8" NPT x 1/4" NPT

1шт.

3

L32534

SHELL

COVER - air chamber assembly

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

5

193-50

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER - external tooth lock, 5/8"

8шт.

6

L32535

PISTON ASSY.

PISTON AND ROD ASSEMBLY - air chamber

1шт.

7

L32548

CUP ASSY.

CUP - piston packing, air chamber

1шт.

Part of Repair Kit P/N L32547

1шт.

8

L32549

WIPER

SEAL - piston, air chamber

1шт.

Part of Repair Kit P/N L32547

1шт.

9

L32550

BOOT

- piston rod

1шт.

Part of Repair Kit P/N L32547

1шт.

10

L32536

SPRING

- return, piston

1шт.

L32537

HEAD

ASSEMBLY - air chamber, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

HEAD - air chamber

1шт.

12

L32538

SCREEN

- filter

2шт.

13

L32539

FILTER CARTRIDGE

FILTER - air

1шт.

14

L32540

RETAINER

- filter

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

D77620

INDICATOR

- stroke

1шт.

17

L32542

BRACKET

- mounting, actuator

1шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

L32962

CYLINDER BLOCK

CYLINDER ASSEMBLY - master, hydraulic, Includes: Ref. 20 - 30

1шт.

20

A19760

RING

WIRE - lock

1шт.

21

A19759

PLATE

- stop, piston

1шт.

A19758

PISTON

ASSEMBLY - master cylinder

1шт.

22

L32552

CUP

- piston packing, master cylinder

1шт.

Part of Repair Kit P/N L32547

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

Part of Repair Kit P/N L32547

1шт.

25

A19757

CUP

SEAT - piston and spring

1шт.

Part of Repair Kit P/N L32547

1шт.

26

L32544

SPRING

- piston

1шт.

27

L31846

VALVE

ASSEMBLY - check

1шт.

Part of Repair Kit P/N L32547

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - master cylinder

1шт.

29

L32545

PLUG

- filler, special

1шт.

30

D46693

GASKET

- plug

1шт.

L32547

KIT

- repair, Includes: Ref. 7-9, 22, 24, 25 and 27

1шт.
