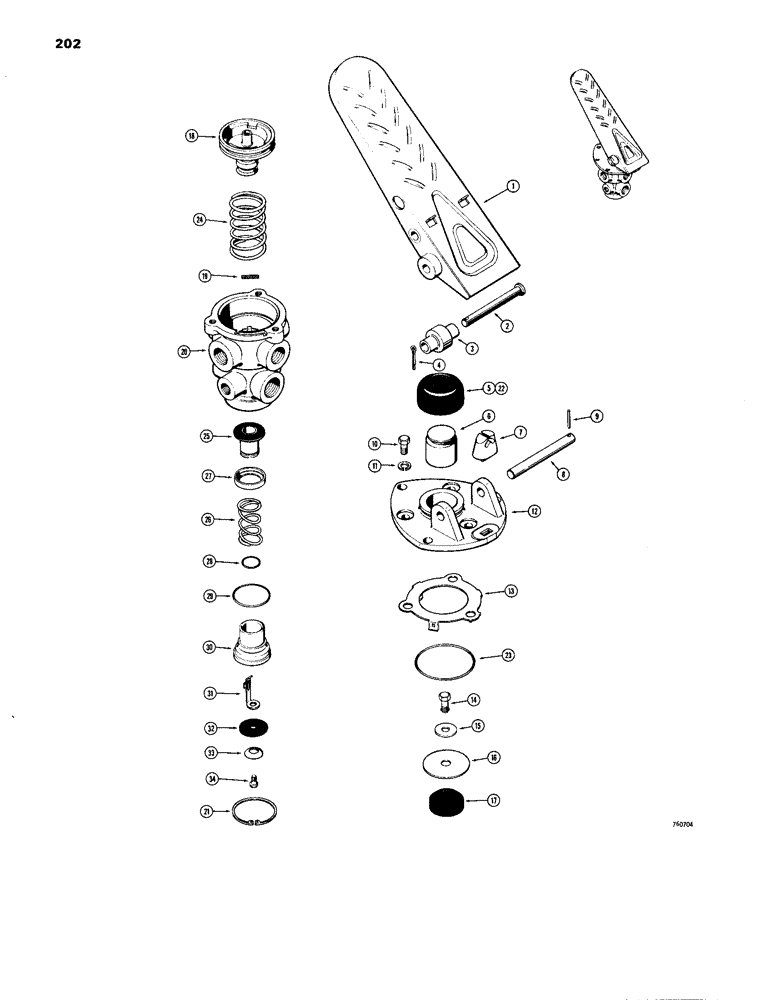

Запчасти Case W24B (202) - L73042 TREADLE AND BRAKE VALVE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
L73042
VALVE, BRAKE
TREADLE AND VALVE ASSEMBLY - brake, Includes: Ref. 1 - 34
1шт.
1
L32927
PEDAL
TREADLE - brake valve
1шт.
2
L31367
PIN
- roller, treadle valve
1шт.
3
L32676
ROLLER
- treadle valve
1шт.
4
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
5
L32730
BOOT
- treadle, brake, included in L31806 repair kit
1шт.
6
L32925
PLUNGER
- treadle
1шт.
7
L31362
BUTTON
- stop
1шт.
8
L31465
PIN
- fulcrum
1шт.
9
138-59
LOCK PIN,1/8" x 7/8", Slotted
PIN, , Fulcrum pin 1/8" x 7/8", Slotted
1шт.
10
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
3шт.
11
92-5
LOCK WASHER,5/16"
3шт.
12
L32924
PLATE ASSY.
PLATE - mounting brake treadle
1шт.
L31360
VALVE
ASSEMBLY - brake, Includes: Ref. 13 - 18
1шт.
13
NLS
NO LONGER SERVICED
- valve
1шт.
L31380
PISTON
ASSEMBLY - valve, Includes: Ref. 14 - 18
1шт.
14
L31384
LOCK BOLT,Hex, 1/4" - 20 x 5/8"
BOLT - locking, special
1шт.
15
L31387
WASHER
- compression, spring
1шт.
16
L31386
SEAT
- spring, piston
1шт.
17
L31385
SPRING
- rubber, piston
1шт.
18
L31383
PISTON
- valve
1шт.
19
L31459
FILTER
- vent
1шт.
20
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
21
D27833
SNAP RING,1.625", Int, #162
Ring, Snap, , washer 1.625", Int, #162
1шт.
L31806
KIT
- repair, valve, Includes: Ref. 22 - 34
1шт.
22
L32730
BOOT
- treadle, brake
1шт.
23
L31381
O-RING,2 1/8" ID x 2 3/8" OD x 1/8"
1шт.
24
L31379
SPRING
- return, piston
1шт.
NSS
NOT SOLD SEPARAT
VALVE ASSEMBLY - inlet and exhaust
1шт.
25
L31375
VALVE
- inlet and exhaust
1шт.
26
L31378
VALVE SPRING
SPRING - valve
1шт.
27
L31376
RETAINER
- valve
1шт.
28
L31377
O-RING,5/8" ID x 3/4" OD x 1/16"
1шт.
29
L31374
O-RING
1шт.
30
L31370
SEAT
- check valve, exhaust
1шт.
31
L31371
SPRING
- preload, inlet valve
1шт.
32
L31372
DIAPHRAGM
- valve
1шт.
33
L31373
WASHER
- diaphragm, valve
1шт.
34
182-84
SCREW,Slotted Pan Hd, #8-32 x 3/8"
- machine, slotted head, #8 - 32 NC x 3/8"
1шт.
Выбрано товаров: 39
