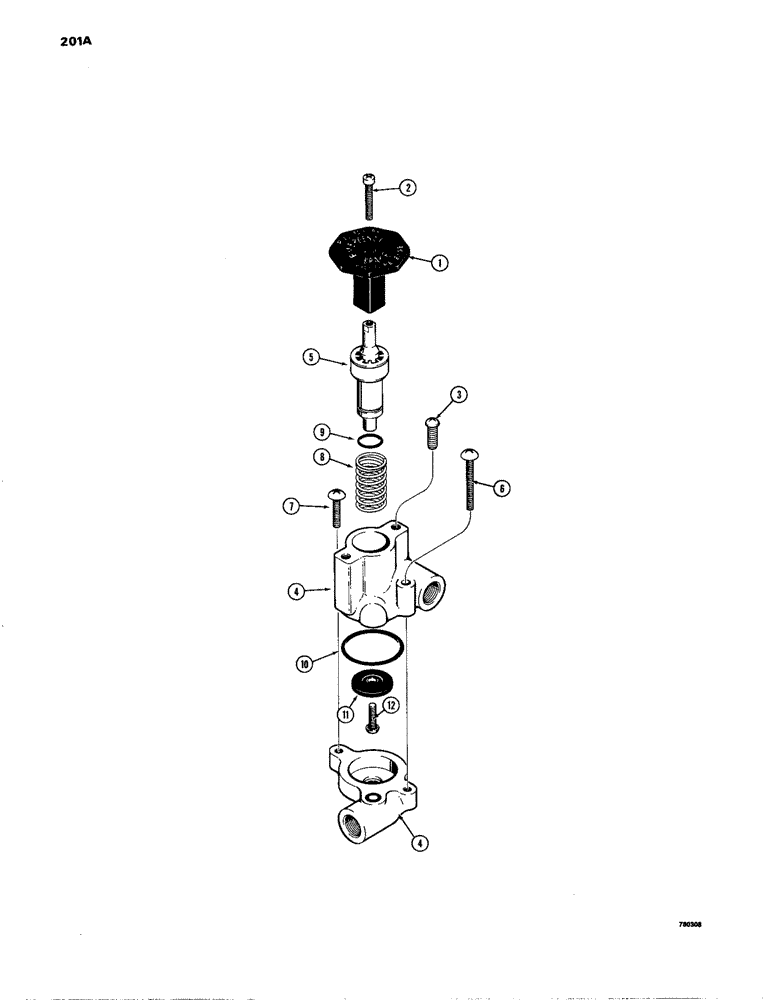

Запчасти Case W24B (201A) - L52178 EMERGENCY BRAKE VALVE (07) - BRAKES

L52178

VALVE

- emergency brake, Includes: Ref. 1 - 12

1шт.

1

L36025

KNOB

1шт.

2

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

- Phillips, No 8-32 NC x 3/8"

1шт.

3

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- slotted, 1/4" - 20 NC x 1"2"

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - upper and lower

1шт.

5

NSS

NOT SOLD SEPARAT

STEM

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - long

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - short

1шт.

D80516

KIT

- repair, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW

1шт.
