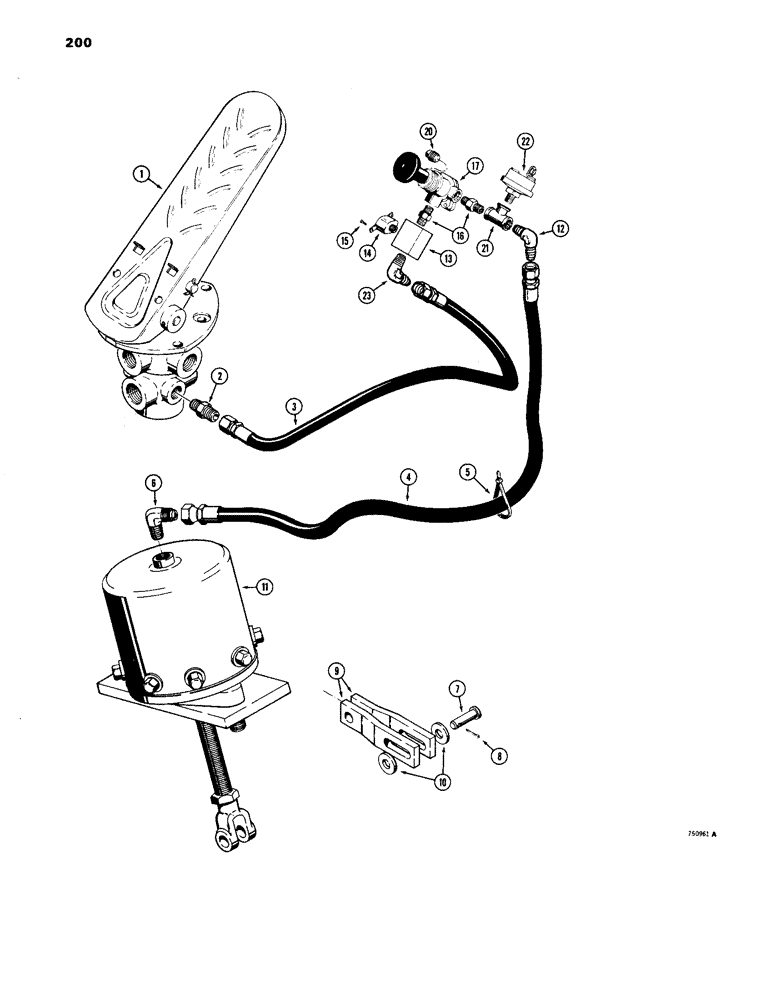

Запчасти Case W24B (200) - BRAKE SYSTEM, EMERGENCY BRAKE VALVE TO SAFETY CHAMBER (07) - BRAKES

1

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - brake, parts list Fig. 202

1шт.

2

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

FITTING - male, straight

1шт.

3

L52184

HOSE

- 56" (1422 mm) long

1шт.

4

L52185

HOSE ASSY.

HOSE - 105" (2667 mm) long

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - brake hoses

1шт.

6

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

FITTING - 90 degrees, male

1шт.

7

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16" dia

1шт.

8

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

9

L72258

DRAG LINK

LINK - safety, Serial Range: chamber-transmission

2шт.

10

95-7

WASHER,7/16"

- flat, 7/16"

2шт.

11

L48127

CHAMBER

ASSEMBLY - parking, parts list Fig. 206

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - 90 degrees, reducing

1шт.

13

L13273

UNION TEE

TEE - special, emergency brake line

1шт.

14

L48480

SWITCH

- pressure

1шт.

15

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- #8 - 32 NC x 1/4"

2шт.

16

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

BUSHING - 1/4" NPT x 1/8" NPT

2шт.

17

L52178

VALVE

ASSEMBLY - emergency brake, parts list Fig. 201A

1шт.

20

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT

1шт.

21

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

FITTING - tee, 1/8" NPT

1шт.

22

L57176

SENDER UNIT

SENDING UNIT - air pressure

1шт.

23

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - 90 degrees, reducing

1шт.
