Запчасти Case W24B (198) - BRAKE SYSTEM, TREADLE TO HORN (07) - BRAKES

1

L73042

VALVE, BRAKE

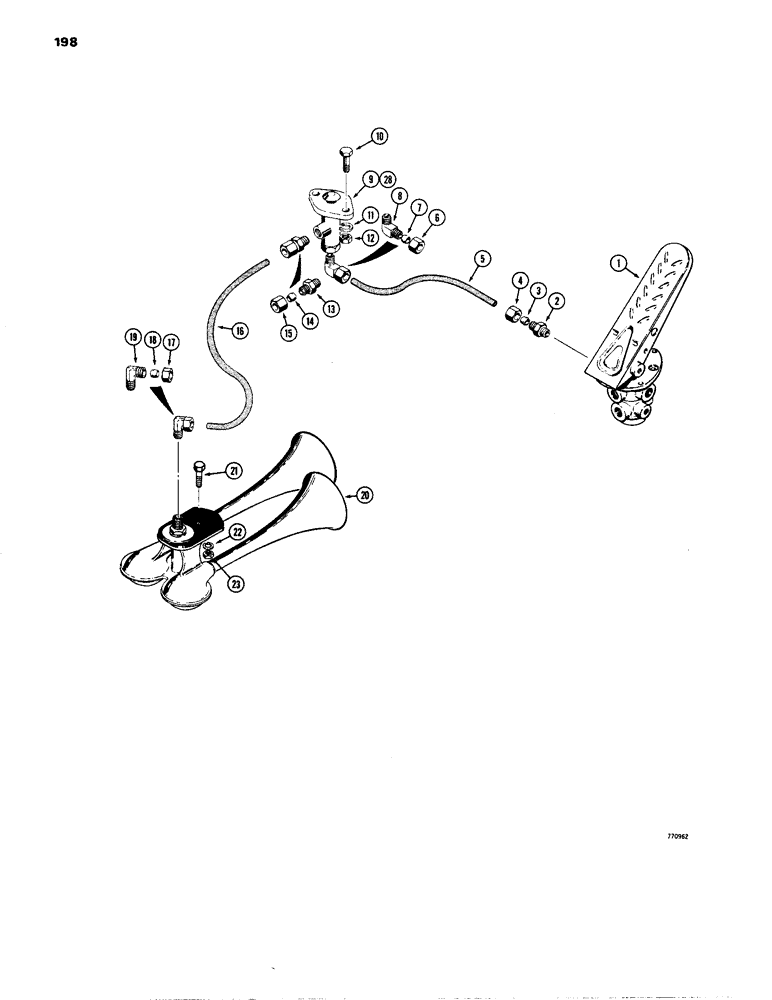

TREADLE ASSEMBLY - parts list Fig. 202

1шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- straight, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

222-2610

SLEEVE

1шт.

4

222-2600

NUT

NUT

1шт.

5

L16536

TUBE,0.25" OD x 8" L

- 1/4" (6 mm) ID x 20-1/2" (521 mm) long

1шт.

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING - 90 degrees, Includes: Ref. 6 - 8

1шт.

6

222-2600

NUT

NUT

1шт.

7

222-2610

SLEEVE

1шт.

8

NSS

NOT SOLD SEPARAT

BODY

1шт.

9

L12647

VALVE

- horn, parts list Fig. 210

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- straight, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY

1шт.

14

222-2610

SLEEVE

1шт.

15

222-2600

NUT

NUT

1шт.

16

L52494

TUBE,0.25" OD x 33" L

- 1/4" ( 6 mm) ID x 33" (838 mm) long

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - 90 degrees, Includes: Ref. 17 - 19

1шт.

17

222-2600

NUT

NUT

1шт.

18

222-2610

SLEEVE

1шт.

19

NSS

NOT SOLD SEPARAT

BODY

1шт.

20

REF

INSTRUCTION

HORN - air, parts list figure 212

1шт.

21

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

25-104

NUT,1/4"-20, G5

1шт.
