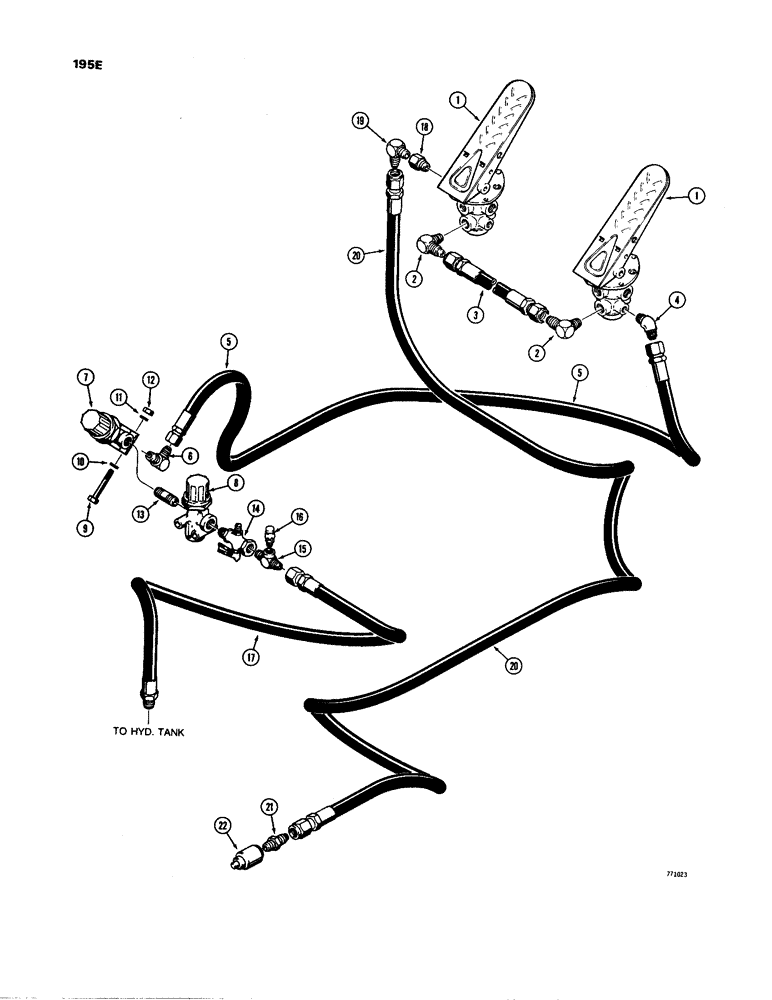

Запчасти Case W24B (195E) - BRAKE SYSTEM, TREADLE TO CLUTCH CUTOUT AND HYDRAULIC RESERVOIR (07) - BRAKES

1

REF

INSTRUCTION

TREADLE - see page 195

1шт.

2

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

FITTING - 90 degrees

2шт.

3

L70922

HOSE ASSY.,0.50" ID x 15.00", SAE 1402 Type A

HOSE ASSY, 0.50" ID x 15.00", SAE 1402, Type A

1шт.

4

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

5

L53613

HOSE

- 41" (1041 mm) long

1шт.

6

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - 90 degrees

1шт.

7

L13530

VALVE

- pressure protection, parts list Fig. 210

1шт.

8

L48129

VALVE

- pressure reducer, parts list Fig. 208

1шт.

9

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

10

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

11

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

13

217-201

PIPE,Nipple, 1/4" NPT x 15/16"

NIPPLE - 1/4" NPT x 15/16"

1шт.

14

L53739

VALVE

- shut off

1шт.

15

L48132

FITTING

- tee

1шт.

16

D38663

VENT

VALVE - relief

1шт.

17

L48026

HOSE

- 16" (406 mm) long

1шт.

18

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer, 1/2" NPT x 1/4" NPT

1шт.

19

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

FITTING - 90 degrees

1шт.

20

L70915

HOSE ASSY.,0.25" ID x 64.00", SAE 1402 Type B

HOSE ASSY, 0.25" ID x 64.00", SAE 1402, Type B

1шт.

21

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

FITTING - straight

1шт.

22

L12627

CYLINDER

- clutch cutout

1шт.
