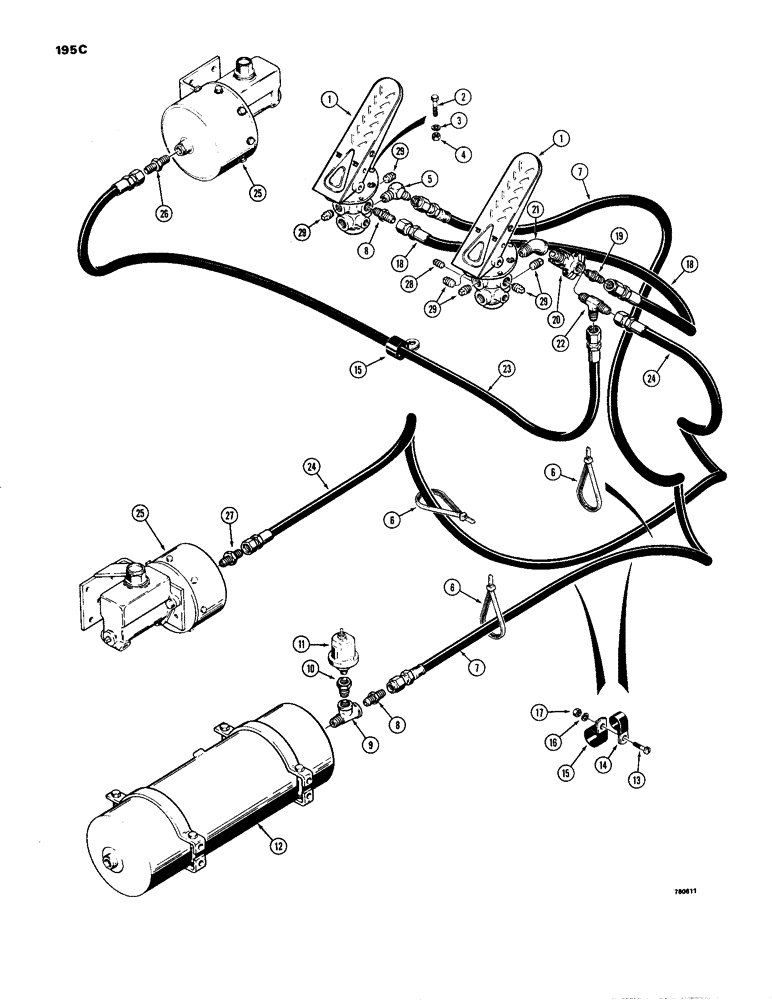

Запчасти Case W24B (195C) - BRAKE SYSTEM, RESERVOIR TO TREADLES & MASTER CYLINDERS TRACTOR SERIAL NO. 9126839 AND AFTER (07) - BRAKES

1

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - brake, parts list Fig. 202

2шт.

2

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

3

92-5

LOCK WASHER,5/16"

6шт.

4

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.

5

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

FITTING - 45 degrees

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - plastic

1шт.

7

L51330

HOSE

- 95" (2413 mm) long

1шт.

8

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

FITTING - straight

2шт.

9

221-1693

TEE,Street, 1/2" NPT

FITTING - tee

1шт.

10

221-1054

BUSHING

- reducer

1шт.

11

L57176

SENDER UNIT

SENDING UNIT - air pressure

1шт.

12

L14823

TANK

RESERVOIR - air

1шт.

13

77-516

BOLT (SPREADER),M16 x 75mm, Cl 8.8

SCREW - truss head, 5/16" - 18 NC x 1"

4шт.

14

49838

CLAMP

- small

4шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- large

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

18

L48025

HOSE

- 23" (584 mm) long

1шт.

19

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight

1шт.

20

L48128

VALVE

- double check and stop light switch, parts list Fig. 208

1шт.

21

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

FITTING - 45 degrees

1шт.

22

218-626

TEE,9/16"-18, 37º x 3/8"-18, NPTF Run

FITTING - tee, 3/8" NPT

1шт.

23

L52705

HOSE ASSY.

HOSE - 44" (1118 mm) long

1шт.

24

L52707

HOSE

- 98" (2489 mm) long

1шт.

25

REF

INSTRUCTION

MASTER CYLINDERS - see page 205

2шт.

26

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight

1шт.

27

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight

1шт.

28

221-1002

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - square head, 1/4" NPT

1шт.

29

221-1004

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

6шт.
