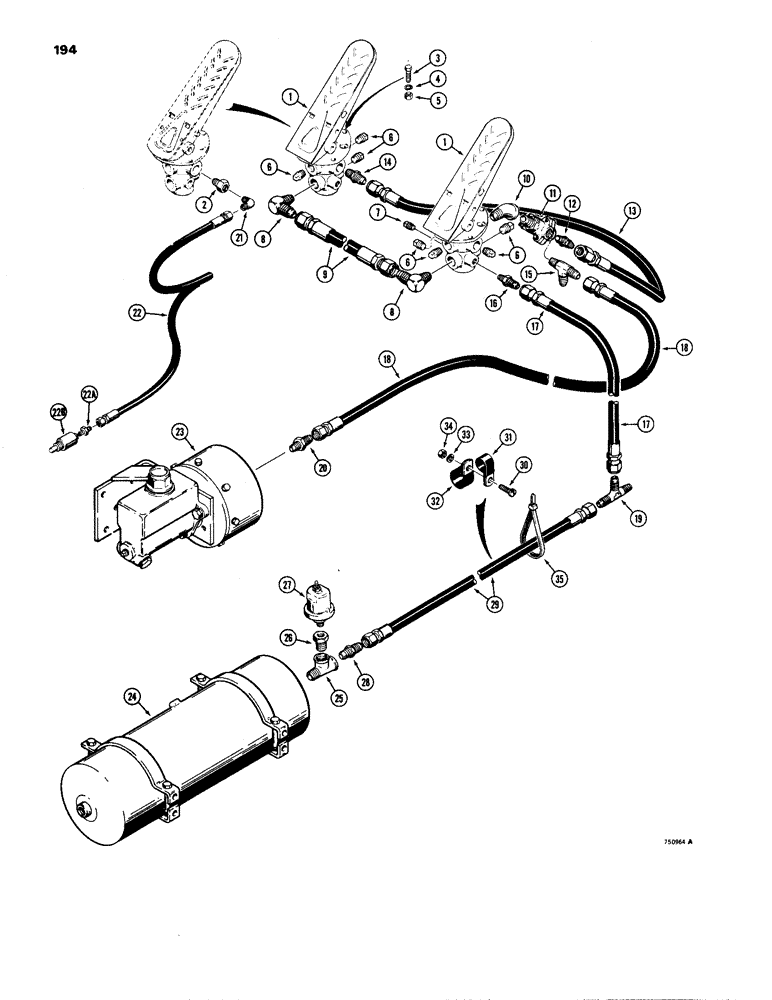

Запчасти Case W24B (194) - BRAKE SYSTEM, RESERVOIR TO TREADLES, REAR MASTER CYLINDER & CLUTCH BEFORE TRACTOR SERIAL NO. 9126839 (07) - BRAKES

1

L73042

VALVE, BRAKE

TREADLE ASSEMBLY - parts list Fig. 202

2шт.

2

221-108

NIPPLE, LUBE

BUSHING - reducer

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

4

92-5

LOCK WASHER,5/16"

6шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.

6

221-1004

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" NPT

7шт.

7

221-102

PIPE,Nipple, 1/8" NPT x 7/8"

PLUG - 1/4" NPT

1шт.

8

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

FITTING - 90 degrees

2шт.

9

L70922

HOSE ASSY.,0.50" ID x 15.00", SAE 1402 Type A

HOSE ASSY, 0.50" ID x 15.00", SAE 1402, Type A

1шт.

10

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

FITTING - 45 degrees

1шт.

11

L48128

VALVE

- double check and stop light switch, parts list Fig. 208

1шт.

12

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight

1шт.

13

L48025

HOSE

- 23" (584 mm) long

1шт.

14

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

FITTING - straight

1шт.

15

218-626

TEE,9/16"-18, 37º x 3/8"-18, NPTF Run

1шт.

16

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight

1шт.

17

L52708

HOSE

- 63" (1600 mm) long

1шт.

18

L52707

HOSE

- 98" (2489 mm) long

1шт.

19

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

- male

2шт.

20

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - straight

1шт.

21

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

FITTING - 90 degrees

1шт.

22

L70915

HOSE ASSY.,0.25" ID x 64.00", SAE 1402 Type B

HOSE ASSY, 0.25" ID x 64.00", SAE 1402, Type B

1шт.

22a

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

FITTING - straight

1шт.

22b

L12627

CYLINDER

- clutch cutout

1шт.

23

L40663

CYLINDER

MASTER CYLINDER - rear, parts list Fig. 204

1шт.

24

L14823

TANK

RESERVOIR - air

1шт.

221-693

TEE,1/2" NPT

FITTING - tee

1шт.

25

L14823

TANK

RESERVOIR - air

1шт.

26

221-1054

BUSHING

- reducing

1шт.

27

L57176

SENDER UNIT

SENDER - air pressure

1шт.

28

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - straight

1шт.

29

L52706

HOSE ASSY.

HOSE - 155" (3937 mm) long

1шт.

L51330 Hose used after S/N9126839

1шт.

30

77-516

BOLT (SPREADER),M16 x 75mm, Cl 8.8

SCREW - truss head, 5/16" - 18 NC x 1"

4шт.

31

49838

CLAMP

- hose, small

4шт.

32

NLS

NO LONGER SERVICED

- hose, large

4шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

35

L18511

STRAP

1шт.
