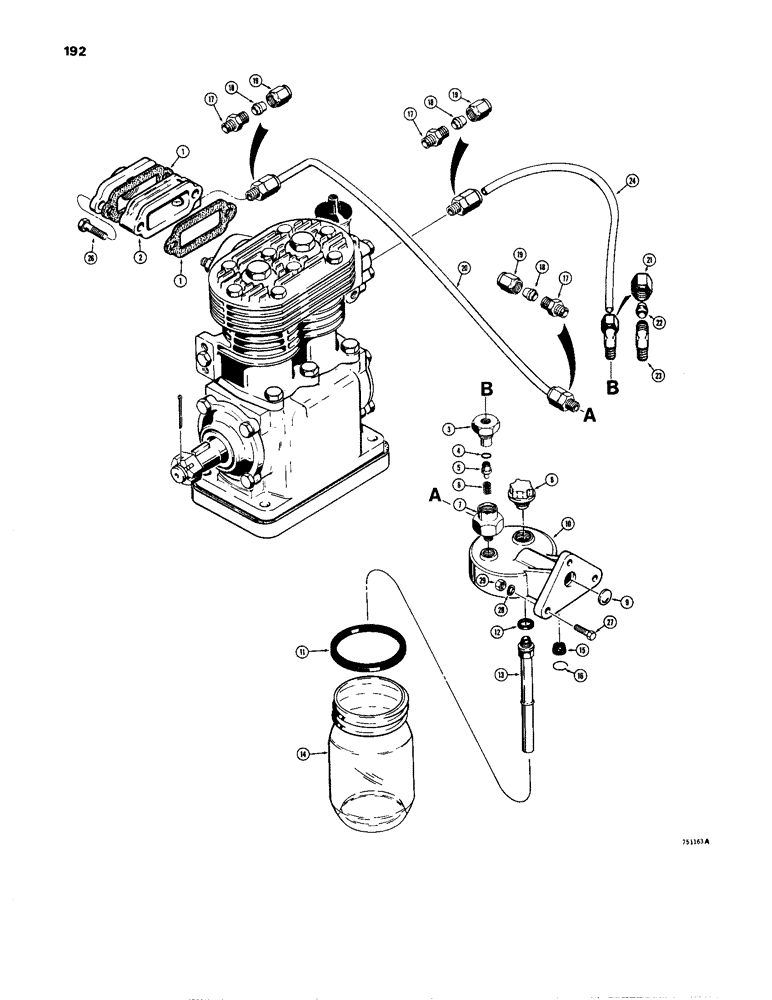

Запчасти Case W24B (192) - ALCOHOL EVAPORATOR (07) - BRAKES

L73284

EVAPORATOR

ASSEMBLY - alcohol, Includes: Ref. 1 - 29

1шт.

First used on S/N 9120664, prior to that, L46412 was used

1шт.

L46372

KIT

- alcohol evaporator

1шт.

1

L31457

GASKET

- adapter

2шт.

2

L32930

ADAPTER

- compressor

1шт.

L33157

VALVE

ASSEMBLY - check, at evaporator, Includes: Ref. 3 - 7

1шт.

3

L33162

NUT

- cap

1шт.

4

L33161

O-RING,0.299" ID x 0.072" Width

GROMMET - valve

1шт.

5

L33160

VALVE

- check

1шт.

6

L33159

SPRING

- valve

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

L33145

EVAPORATOR

ASSEMBLY - alcohol, Includes: Ref. 8 - 16

1шт.

8

L33151

PLUG

- filler

1шт.

9

51-102

PLUG - expansion, steel, 1/2" dia

1шт.

10

L33146

BODY

- alcohol evaporator

1шт.

11

L33153

SEALING RING

-, Serial Range: housing-jar

1шт.

12

L33156

RING

- sealing, evaporator tube

1шт.

13

L33152

TUBE,0.25" ID x 0.33" OD x 4.87" L

- evaporator

1шт.

14

L33154

RESERVOIR

JAR - alcohol evaporator, plastic

1шт.

15

L33150

FILTER

- air intake

1шт.

16

A58439

RETAINER

RING - retaining, filter

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

FITTING - straight, Includes: Ref. 17 - 19

3шт.

17

NSS

NOT SOLD SEPARAT

BODY

1шт.

18

222-5047

SLEEVE,1/4" Tube

1шт.

19

222-5060

NUT,1/2"-20

NUT

1шт.

20

L46110

TUBE,17" L

- alcohol evaporator to governor

1шт.

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

FITTING - 90 degrees, Includes: Ref. 21 - 23

1шт.

21

222-5060

NUT,1/2"-20

NUT

1шт.

22

222-5047

SLEEVE,1/4" Tube

1шт.

23

NSS

NOT SOLD SEPARAT

BODY

1шт.

24

L46110

TUBE,17" L

- check valve to governor

1шт.

26

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

1шт.

27

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

29

25-104

NUT,1/4"-20, G5

3шт.
