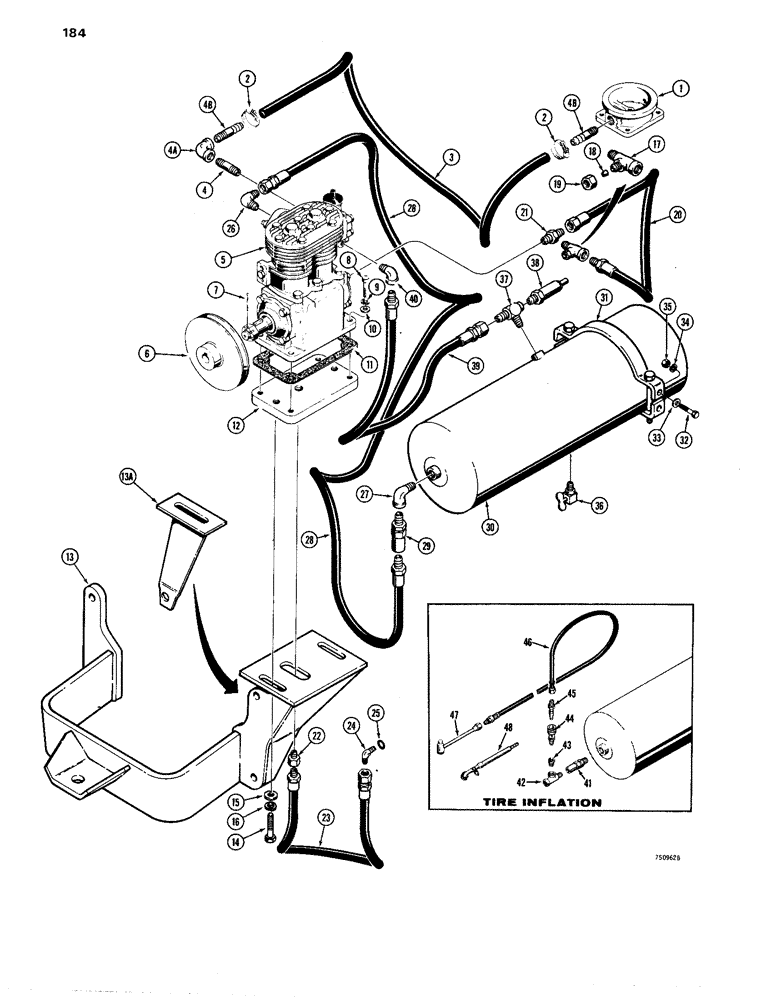

Запчасти Case W24B (184) - BRAKE SYSTEM, AIR COMPRESSOR TO RESERVOIR (07) - BRAKES

1

L53209

ADAPTER

- air cleaner to intake manifold

1шт.

2

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

3

L10357

INTAKE AIR HOSE,0.75" ID x 36.00", SAE 20R1

0.75" ID x 36.00", SAE 20R1

1шт.

4

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - 1/2" NPT x 2"

1шт.

4a

221-1377

ELBOW,90 Degree, 1/2" NPT

FITTING - 90 degrees, 1/2" NPT

1шт.

4b

217-160

FITTING,3/4" Hose Barb x 1/2" Male NPTF

- straight

2шт.

5

REF

INSTRUCTION

COMPRESSOR - air, parts list pages 187 and 189

1шт.

6

L57805

PULLEY

- air compressor

1шт.

7

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

8

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

HHCS - 7/16" - 16 NC x 1-1/4"

4шт.

9

92-7

LOCK WASHER,7/16"

4шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

11

L10354

GASKET

- mounting, Serial Range: plate-compressor

1шт.

12

L71527

PANEL

PLATE - air compressor mounting

1шт.

13

L76732

SUPPORT

BRACKET - engine and compressor

1шт.

13a

L76986

BRACKET

SUPPORT - compressor, repairs only ( replaced L76982 )

1шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

15

D64050

WASHER

- hardened

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

FITTING - tee assembly, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

TEE

1шт.

18

222-102

SLEEVE,1/4" Tube

1шт.

19

87017024

TUBE NUT,1/2"-24

NUT

1шт.

20

L16575

HOSE

- 17" (432 mm) long

1шт.

21

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - male

1шт.

22

221-53

BUSHING

- reducer

1шт.

23

L16574

HOSE,0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

ASSY, 0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

1шт.

24

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. Ref. 25 90º, 9/16"-18, 37º x 7/16"-20, O-Ring

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

FITTING - street, 45 degrees

1шт.

27

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

FITTING - 90 degrees

1шт.

28

L58528

AIR HOSE,0.50" ID x 26.50", SAE 100R1

1 0.50" ID x 26.50", SAE 100R1

1шт.

29

L12586

VALVE

CHECK VALVE - air reservoir

1шт.

30

L14823

TANK

RESERVOIR - air brake system

1шт.

31

L12632

BRACKET

- reservoir, mounting

2шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

33

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

36

L100385

COCK

DRAIN COCK - reservoir

1шт.

37

L48131

FITTING

TEE - special

1шт.

38

L48992

VALVE,1/4"

ASSEMBLY - safety

1шт.

39

L47886

HOSE

- 27" (686 mm) long

1шт.

40

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

FITTING - 90 degrees, 1/8" NPT

1шт.

41

L12586

VALVE

CHECK VALVE - air reservoir

1шт.

42

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

- pipe

1шт.

43

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

44

L13978

VALVE

CHECK - air

1шт.

45

L13979

COUPLING

COUPLER - adapter

1шт.

46

L15274

HOSE

- inflation

1шт.

47

L78138

PNEUMATIC VALVE

CHUCK - air

1шт.

48

L13977

GAUGE ASSY.

GAUGE - tire pressure

1шт.
