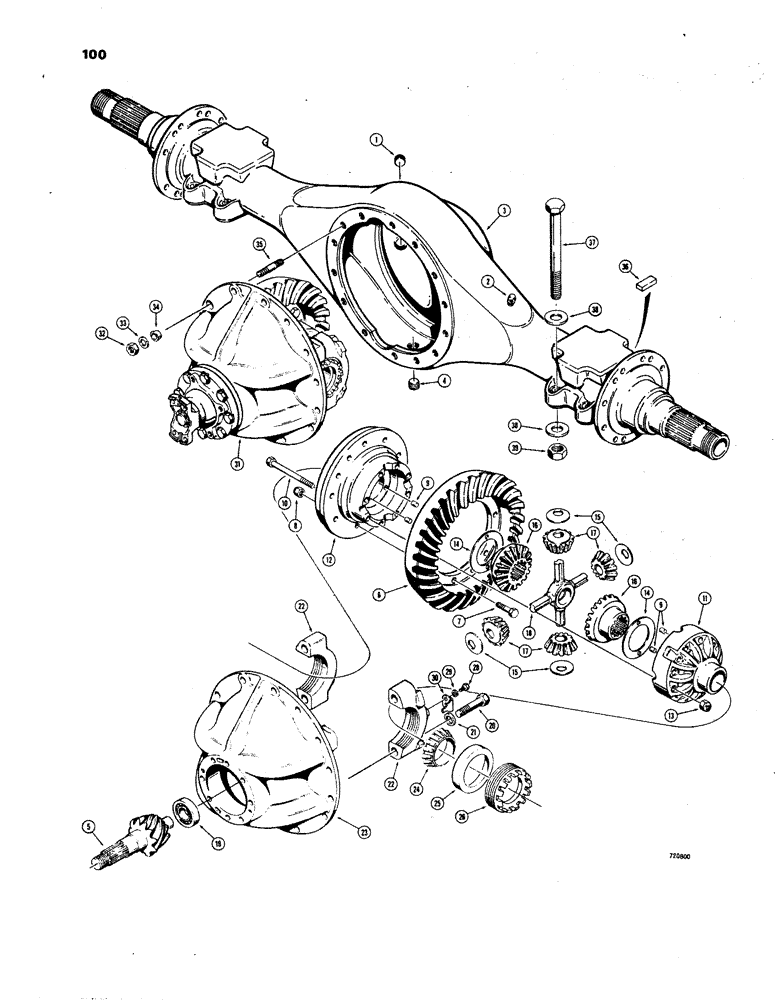

Запчасти Case W24B (100) - FRONT AXLE AND DIFFERENTIAL, PINION, RING GEAR AND DIFFERENTAL CASE (06) - POWER TRAIN

L52164

AXLE ASSEMBLY - front, ring gear drive (Before tractor Sn. 9115926), Includes: Ref. 1 - 35

1шт.

L55417

AXLE ASSEMBLY - front, flex plate drive (Tractor Sn. 9115926 and after), Includes: Ref. 1 - 35

1шт.

1

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - filler, housing (Square socket head) 3/4" NPT (L52164 axle only)

1шт.

1

221-845

PLUG,Hex Soc, 3/4"-14

- filler, housing (Hex. socket head) 3/4" NPT (L55417 axle only)

1шт.

2

L33264

BREATHER

- axle housing

1шт.

3

L33038

HOUSING - axle

1шт.

4

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - drain, housing

1шт.

L35252

DIFFERENTIAL

AND CARRIER ASSEMBLY - axle (Used with L52164 axle only), Includes: Ref. 5 - 31

1шт.

L35524

DIFFERENTIAL

AND CARRIER ASSEMBLY - axle (Used with L55417 axle only), Includes: Ref. 5 - 31

1шт.

L33043

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 5 - 18

1шт.

L33039

GEAR SET - pinion and ring gear (Matched set), Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

PINION - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - drive, ring type

1шт.

7

L33044

BOLT

- special, ring, Serial Range: gear-case

12шт.

8

131-719

NUT

- special, ring, Serial Range: gear-case

12шт.

L33046

HOUSING

BODY ASSEMBLY - differential, Includes: Ref. 9 - 18

1шт.

L33047

SET

KIT - differential halves, Includes: Ref. 9 - 15

1шт.

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY - differential, Includes: Ref. 9 - 13

1шт.

9

L33049

PIN

- dowel

4шт.

10

L33050

BOLT

- special, case mounting

8шт.

11

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

12

NSS

NOT SOLD SEPARAT

CASE - flanged half

1шт.

13

131-719

NUT

- special, case mounting

8шт.

14

L33055

WASHER

- thrust, side gear

2шт.

15

L33054

WASHER

- thrust, pinion

4шт.

16

L33052

GEAR

- side, differential

2шт.

17

L33051

PINION

- differential

4шт.

18

L33053

U-JOINT SPIDER

SPIDER - differential

1шт.

19

L33062

ROLLER BEARING

BEARING - pinion, inner

1шт.

L33058

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 20 - 23

1шт.

20

L33909

BOLT

- special

4шт.

21

194-114

WASHER

- lock (7/8")

4шт.

22

NSS

NOT SOLD SEPARAT

CAP - carrier

2шт.

23

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

24

40398

ROLLER BEARING,3" ID x 1.2205"

CONE - bearing, differential

2шт.

25

ST968

BEARING CUP,3" ID x 1.7875"

CUP - bearing, differential

2шт.

26

L33910

NUT

- adjusting, special

2шт.

28

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

L33057

LOCK

- adjusting nut

2шт.

31

REF

INSTRUCTION

PINION BEARING AND COMPANION FLANGE - differential (Parts list figure 98)

1шт.

32

129-545

NUT,1/2"-20, G8

14шт.

33

L33002

WASHER

- special

14шт.

34

L33016

DOWEL

- carrier

3шт.

35

L33041

STUD

- differential carrier to axle housing

14шт.

36

L26838

BLOCK - shear, axle mounting (3/4" square stock)

2-4шт.

36

L56119

BLOCK

- shear, axle mounting (5/8" square stock) If used

2шт.

37

116-902

BOLT,Hex, 1" - 14 x 9", Gr 8

HHCS - 1" - 14 NF x 9"

8шт.

38

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

16шт.

39

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, (Replaced 131-1351 ) Flg, 1/4"-20

8шт.
