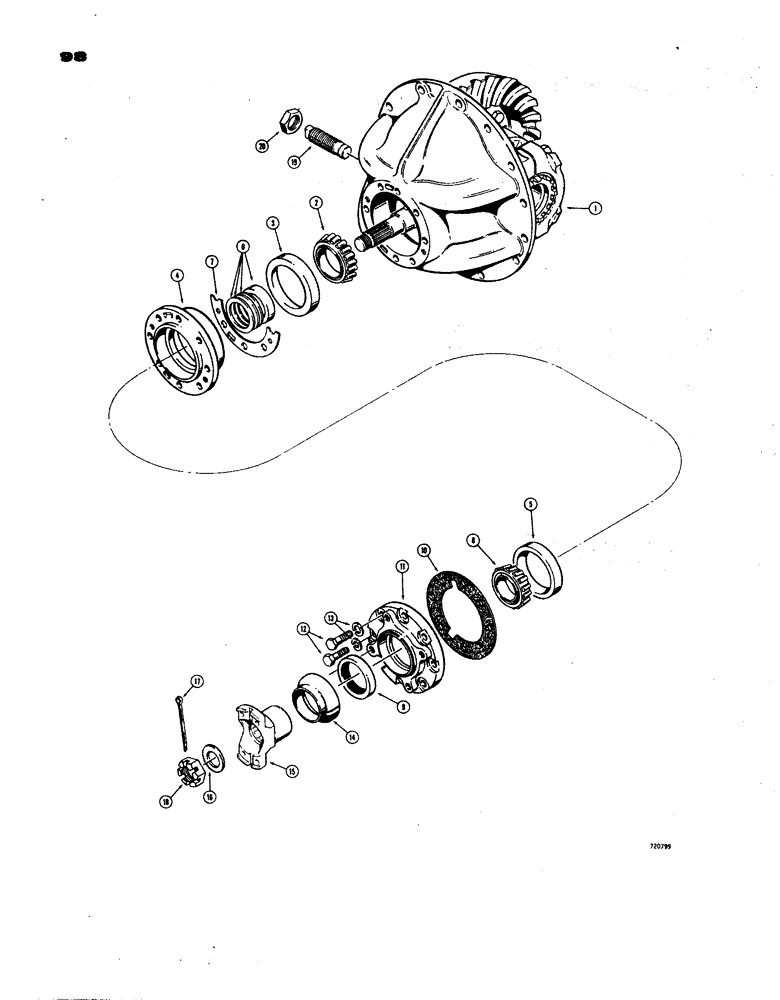

Запчасти Case W24B (098) - FRONT AXLE AND DIFFERENTIAL, PINION BEARINGS AND COMPANION FLANGE (06) - POWER TRAIN

L52164

AXLE ASSEMBLY - front, ring gear drive (Before tractor Sn. 9115926), Includes: Ref. 1 - 20

1шт.

L55417

AXLE ASSEMBLY - front, flex plate drive (Tractor Sn. 9115926 and after), Includes: Ref. 1 - 20

1шт.

L35252

DIFFERENTIAL

AND CARRIER ASSEMBLY - axle (Used with L52164 axle only), Includes: Ref. 1 - 20

1шт.

L35524

DIFFERENTIAL

AND CARRIER ASSEMBLY - axle (Used with L55417 axle only), Includes: Ref. 1 - 20

1шт.

1

REF

INSTRUCTION

CASE AND INTERNAL GEARING - differential (Parts list Figure 100)

1шт.

2

A25167

ROLLER BEARING,2" ID x 1.25"

CONE - bearing, pinion (Center)

1шт.

L33063

CAGE

AND CUP ASSEMBLY - pinion, Includes: Ref. 3 - 5

1шт.

3

A25168

BEARING CUP

CUP - bearing, pinion (Center)

1шт.

4

NSS

NOT SOLD SEPARAT

CAGE - bearing, pinion

1шт.

5

A12949

BEARING CUP

CUP - bearing, pinion (Outer)

1шт.

6

L33064

BUSHING

SPACER AND SHIM KIT - bearing, pinion

1шт.

7

L33065

SHIM

- bearing cage, pinion (.004" thick)

1шт.

7

L33066

SHIM

- bearing cage, pinion (.007" thick) When stock is exhausted, order L35911 shim for service

1шт.

7

L35911

SHIM

- bearing cage, pinion (Medium)

1шт.

7

L33067

SHIM

- bearing cage, pinion (.010" thick) When stock is exhausted, order L35912 shim for service

1шт.

7

L35912

SHIM

- bearing cage, pinion (Thick)

1шт.

8

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - bearing, outer

1шт.

9

L35250

OIL SEAL

- oil, pinion

1шт.

10

L33068

GASKET

- retainer, pinion oil seal

1шт.

11

L35251

RETAINER

- pinion oil seal

1шт.

12

113-2414

BOLT (MACHINE),Hex, 1/2" - 13 x 2-1/4", Gr 8

HHCS - 1/2" - 13 NC x 2-1/4" (Grade 8)

1шт.

12

113-512

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 8, Full Thd

HHCS - 9/16" - 12 NC x 2-1/4" (Grade 8)

7шт.

13

92-8

LOCK WASHER,1/2"

1шт.

13

92-9

BEARING WASHER,9/16"

7шт.

14

L33088

GUARD

SHIELD - dust, pinion

1шт.

15

L33089

FLANGE - companion (Used with L52164 axle only)

1шт.

15

L35525

FLANGE

- companion (Used with L55417 axle only)

1шт.

16

L33026

WASHER

- pinion shaft

1шт.

17

132-218

PIN - cotter (7/16" x 2" long)

1шт.

18

L33097

NUT

- pinion shaft

1шт.

19

L33061

SCREW,1 1/8" - 12 x 4 1/4"

- thrust, special

1шт.

20

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- hex., jam (1-1/2" - 12 NF)

1шт.
