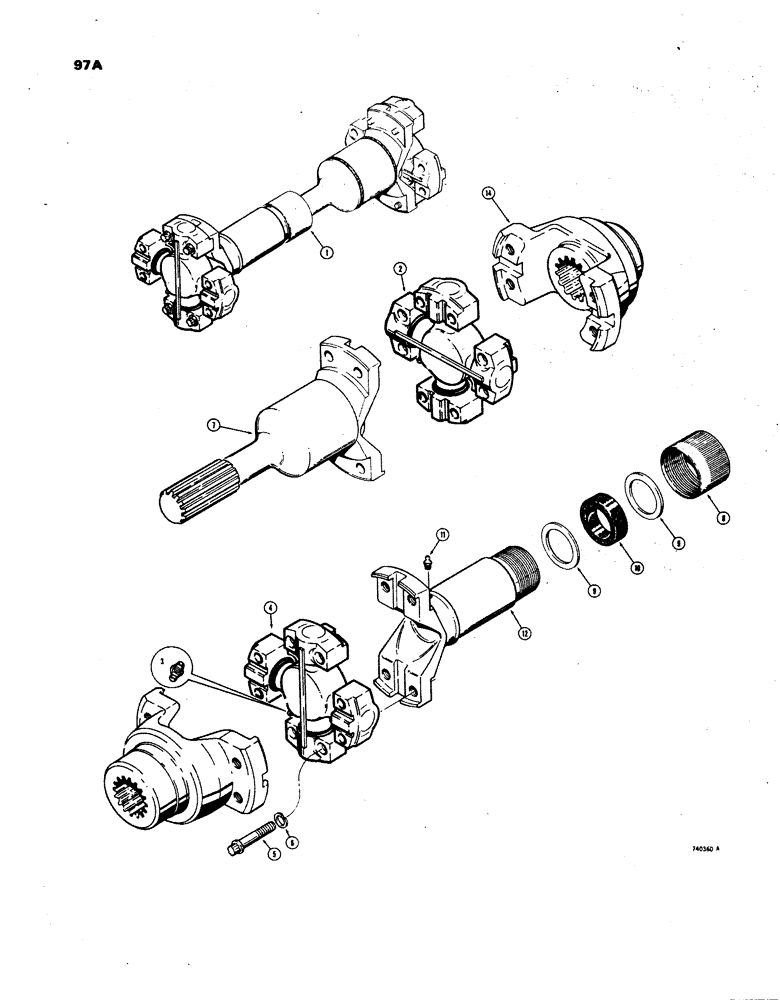

Запчасти Case W24B (097A) - REAR AXLE DRIVE SHAFT, UNITS WITH FLEX PLATE DRIVE/TRACTOR SN 9115926 AND AFTER (06) - POWER TRAIN

1

L56040

SHAFT

ASSEMBLY - drive, rear axle, Includes: Ref. 2 - 12

1шт.

2

L35511

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 3 and 4

2шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" Special)

1шт.

4

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

5

L35514

12 PT SCREW,7/16" - 20 x 2"

BOLT - special, spider and bearing to transmission flange and axle flange

16шт.

6

L35513

WASHER

- med. sect. lock (7/16")

16шт.

7

L35518

YOKE

- splined, at transmission end

1шт.

L32434

KIT

CAP KIT - dust, drive shaft, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft yoke

1шт.

9

L31792

WASHER

- metal, felt retaining

2шт.

10

L31791

WASHER

- felt, dust

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

12

L35517

YOKE

- slip, axle end

1шт.

13

L35525

FLANGE

- companion, rear axle to rear drive shaft

1шт.

14

L35530

FLANGE - transmission to rear drive shaft

1шт.
