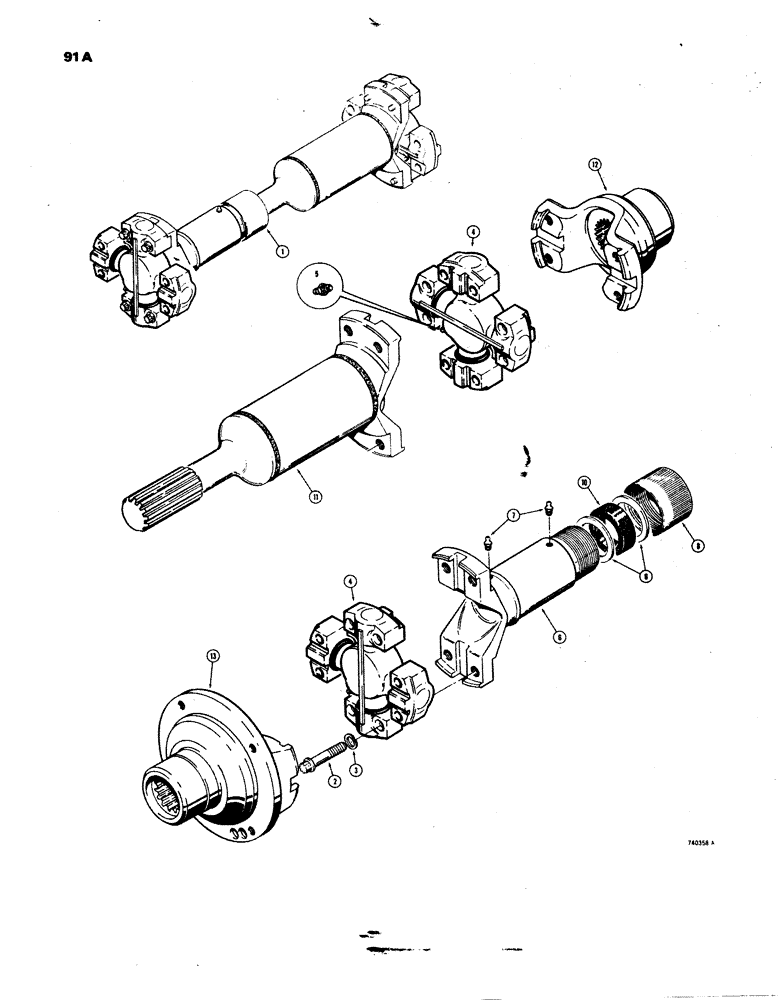

Запчасти Case W24B (091A) - FRONT AXLE DRIVE SHAFT, (TRANSMISSION END), UNITS WITH FLEX PLATE DRIVE/TRAC SN.9115926 AND AFTER (06) - POWER TRAIN

1

L56028

SHAFT

ASSEMBLY - drive, front axle (At transmission), Includes: Ref. 2 - 11

1шт.

2

L35514

12 PT SCREW,7/16" - 20 x 2"

BOLT - special, spider and bearing to transmission and center bearing

16шт.

3

L35513

WASHER

- med. sect. lock (7/16")

16шт.

L35511

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" special)

1шт.

6

L35515

YOKE

- slip, transmission end

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

L32434

KIT

CAP KIT - dust, drive shaft, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft yoke

1шт.

9

L31792

WASHER

- metal, felt retaining

2шт.

10

L31791

WASHER

- felt, dust

1шт.

11

L35516

YOKE

- splined, axle end

1шт.

YOKE MEASURES ABOUT 17"

1шт.

12

L56029

YOKE

- drive shaft to center bearing

1шт.

13

L35529

FLANGE

- drive, Serial Range: shaft-transmission

1шт.
