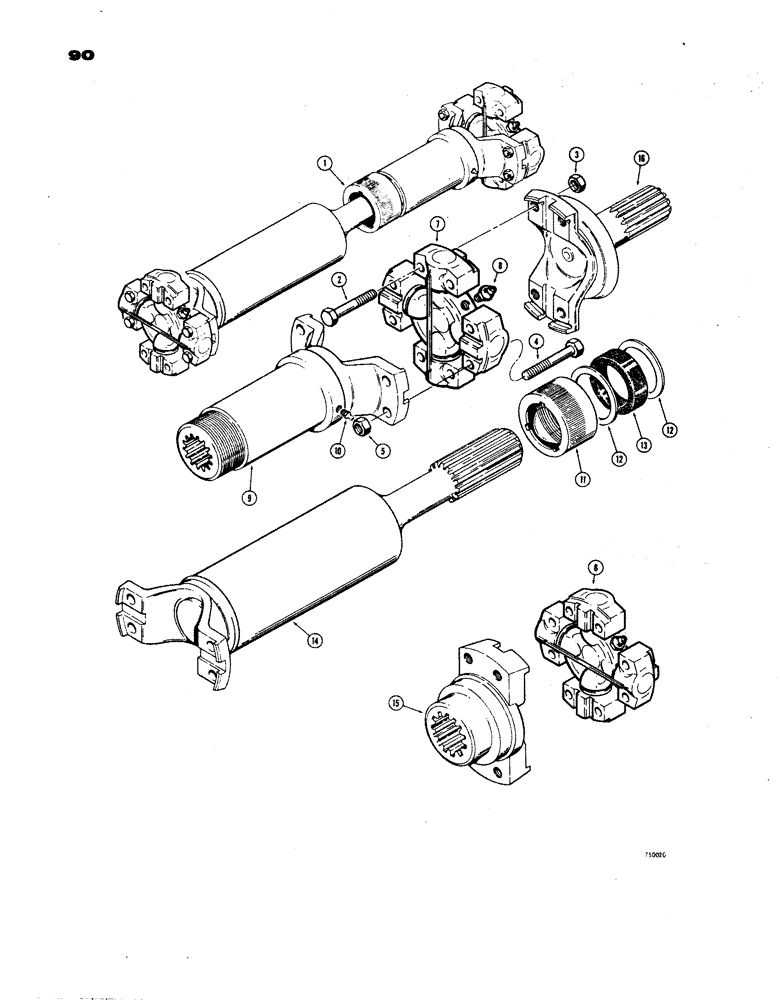

Запчасти Case W24B (090) - FRONT AXLE DRIVE SHAFT, (TRANSMISSION END), UNITS WITH RING GEAR DRIVE/BEFORE TRAC SN.9115926 (06) - POWER TRAIN

1

L48819

SHAFT

ASSEMBLY - drive, front axle (At transmission), Includes: Ref. 2 - 14

1шт.

2

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- special, spider and bearing to transmission and center bearing (replaced L31781)

8шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex., jam (3/8" - 16 NC) (replaced 25-156)

8шт.

4

28-632

BOLT,Hex, 3/8" - 24 x 2", Gr 8

- special, drive shaft to spider and bearing (replaced L31781)

8шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex., jam (3/8" - 16 NC) (replaced 25-156)

8шт.

6

L31776

SPIDER

SPIDER AND BEARING ASSEMBLY - drive shaft, Includes: Ref. 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

9

L33697

HALF SHAFT

YOKE - drive shaft

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

L33624

CAP

KIT - dust, drive shaft, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft yoke

1шт.

12

L33627

WASHER

- metal, felt retaining

2шт.

13

L31778

WASHER

- felt type (When stock is exhausted, order L33948 washer for service)

1шт.

13

L33948

WASHER

- felt type

1шт.

14

L33708

HALF SHAFT

TUBE - drive shaft, splined (Transmission end)

1шт.

MEASURES ABOUT 19.50"

1шт.

15

L32395

FLANGE - drive shaft mounting, at transmission

1шт.

16

L25501

YOKE

FLANGE - drive shaft mounting, at center bearing

1шт.
