Запчасти Case W24B (080) - TRANSMISSION OVERHAUL KIT (06) - POWER TRAIN

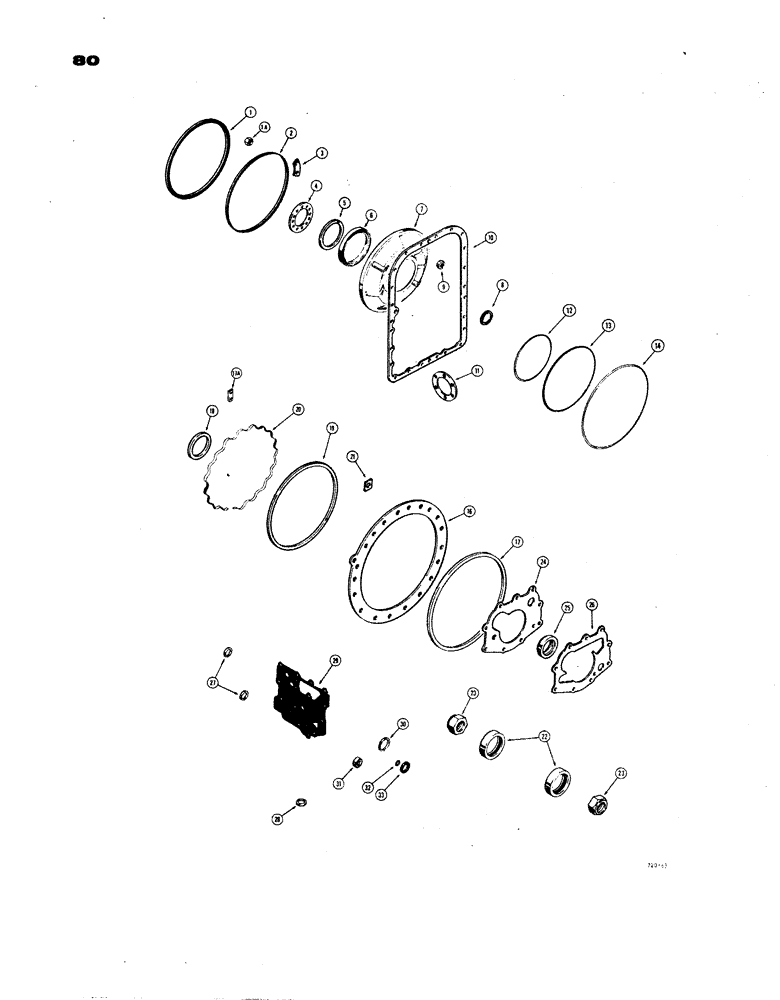

Схема запчастей Case W24B - (080) - TRANSMISSION OVERHAUL KIT (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

L35269

GASKET KIT

KIT - transmission overhaul, Includes: Ref. 1 - 33

1шт.

1

A16645

SEALING RING

RING - seal

1шт.

1a

131-308

LOCK

NUT - hex., lock (5/16" - 24 NF)

24шт.

2

A12674

RING

- seal

1шт.

3

D47436

PLATE, LOCKING

PLATE - locking

6шт.

4

D48208

GASKET

- pump

1шт.

5

D47441

SEAL

- ring type converter housing sleeve

1шт.

L34000

DIAPHRAGM

ASSEMBLY - converter, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM - converter

1шт.

8

D47445

SEAL

- ring type

2шт.

9

L31084

SEAL

RING - seal

1шт.

10

D48358

GASKET

- torque converter to transmission housing

1шт.

11

A12664

GASKET

- strainer and cover

2шт.

12

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

- ring type, small (6.703" I.D.)

2шт.

13

L33967

SEALING RING,233.76mm ID x 242.66mm OD x 3.3mm Thk

- ring type, medium (9.203" I.D.)

2шт.

14

L33966

SEALING RING,290.7mm ID x 299.64mm OD x 3.3mm Thk

- ring type, large (11.797" I.D.)

2шт.

16

D47576

GASKET

- front cover

1шт.

17

L32412

RING

- seal, front cover

1шт.

17a

L31128

PLATE

- locking, clutch plate

6шт.

18

L31017

RING

SEAL - ring type, high clutch piston

1шт.

L31079

SEAL KIT

AND EXPANDER KIT - high range clutch, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - high range clutch piston

1шт.

20

NSS

NOT SOLD SEPARAT

EXPANDER - high range clutch seal

1шт.

21

D47476

LOCK

TAB - locking, high range clutch piston

6шт.

22

D47485

SEAL

- oil, axle output shaft

2шт.

23

L31165

NUT

- axle drive flange retaining

2шт.

24

L31081

GASKET

-, Serial Range: pump-housing

1шт.

25

A13262

SEAL

- oil, charging pump

1шт.

26

L31037

GASKET

- pump, Serial Range: housing-cover

1шт.

27

L31016

GASKET

- regulator valve and valve plug

2шт.

28

L31034

WASHER

GASKET - trimmer valve plug

1шт.

29

L31187

GASKET

- control valve housing

1шт.

30

L31043

GASKET

- trimmer valve plug

1шт.

31

L31032

SEAL

- oil, control valve spool

1шт.

32

A12666

O-RING,0.359" ID x 0.73"

SEAL - ring type, clutch cut off valve

1шт.

33

L31034

WASHER

GASKET - plug, control valve

1шт.

Выбрано товаров: 37
