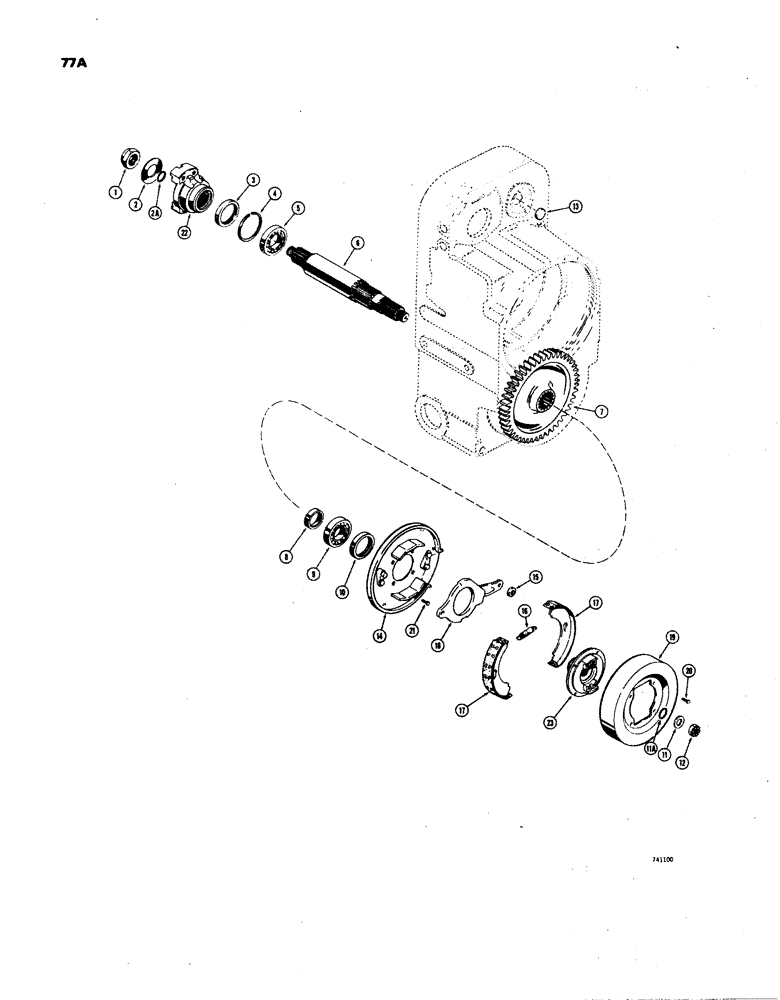

Запчасти Case W24B (077A) - TRANS,AXLE OUTPUT SHAFT & PARKING BRAKE,UNITS W/FLEX PLATE DRIVE/TRAC. SN 9115926 AND AFTER (06) - POWER TRAIN

L54744

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 13

1шт.

1

L31165

NUT

- flange washer retaining

1шт.

2

D47424

WASHER

- flange retaining (When stock is exhausted, order (1) L35974 washer and (1) L35973 "O"ring seal for service)

1шт.

2

L35974

WASHER

- flange retaining

1шт.

2a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

3

D47485

SEAL

- oil

1шт.

4

D47486

SNAP RING

SNAP RING - internal type

1шт.

5

L31013

BALL BEARING

- ball type

1шт.

6

L36058

SHAFT

- output, main (Axle drive)

1шт.

7

D47487

GEAR

- transfer

1шт.

8

D51506

BUSHING

SPACER - bearing

1шт.

9

D47489

ROLLER BEARING

BEARING - ball type

1шт.

10

D47485

SEAL

- oil

1шт.

11

D47424

WASHER

- flange retaining (When stock is exhausted, order (1) L35974 washer and (1) L35973 "O"ring seal for service)

1шт.

11

L35974

WASHER

- flange retaining

1шт.

11a

L35973

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

12

L31165

NUT

- flange washer retaining

1шт.

13

L33620

PLUG

- housing

1шт.

L33621

BRAKE

ASSEMBLY - parking, Includes: Ref. 14 - 19

1шт.

14

L33622

PLATE

- backing

1шт.

15

L33579

ROLLER

- brake

1шт.

16

F18272

SPRING

- brake shoe return

2шт.

17

D47524

BRAKE SHOE

SHOE AND LINING ASSEMBLY - brake

2шт.

D47501 parking brake lining kit is available for service replacement, includes 2, NSS linings and 24, L33939 rivets

1шт.

18

D47526

LEVER

- brake shoe

1шт.

19

D47527

DRUM

- brake

1шт.

20

121-212

LOCK BOLT,Lock Place, Hex, 3/8" - 24 x 5/8", Gr 8

HHCS - 3/8" - 24 NF x 5/8"

4шт.

21

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

HHCS - 1/2" - 13 NC x 7/8"

4шт.

22

L35530

FLANGE - transmission to rear axle drive shaft

1шт.

23

L35529

FLANGE

- transmission to front axle drive shaft

1шт.
