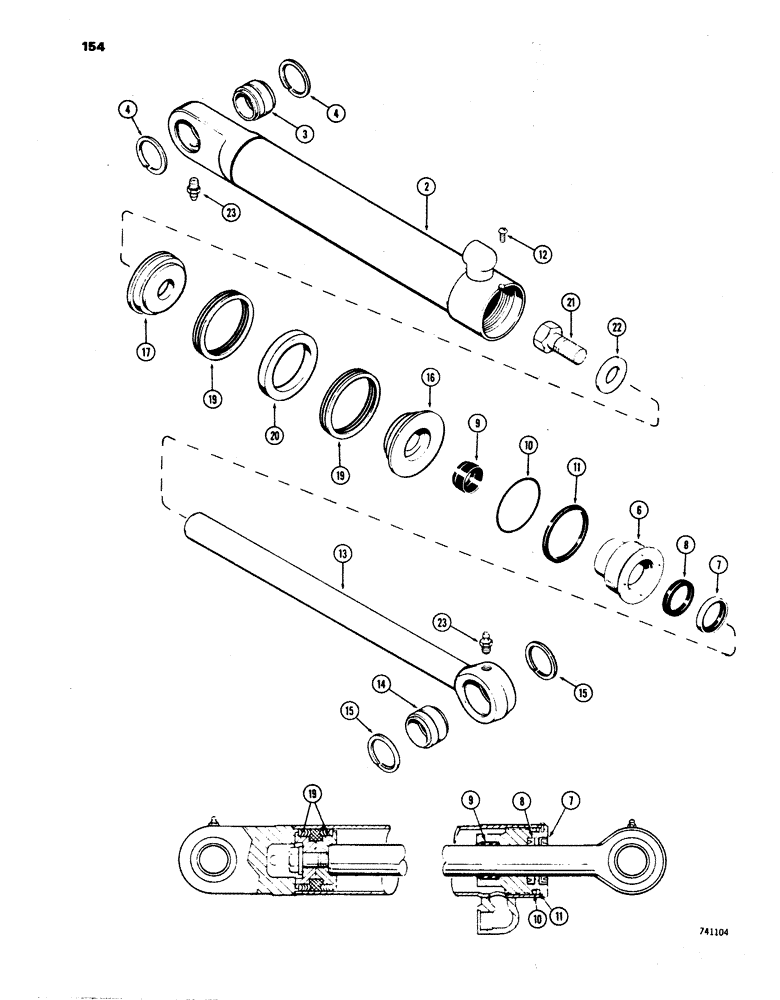

Запчасти Case W24B (154) - G33447 AND G33448 STEERING CYLINDERS, GLAND IS NOT STAMPED W/CYL. PART NUMBER (05) - STEERING

1

G33447

CYLINDER - steering, L.H. (3" dia. x 15" stroke) Not shown., Includes: Ref. 2 - 23

1шт.

1

G33448

CYLINDER - steering, R.H. (3" dia. x 15" stroke) Not shown., Includes: Ref. 2 - 23

1шт.

2

G32861

TUBE,24.08" L

- L.H. cylinder, Includes: Ref. 3 and 4

1шт.

2

G32860

TUBE,24.08" L

- R.H. cylinder, Includes: Ref. 3 and 4

1шт.

3

L12570

BUSHING

BEARING - tube (self - aligning)

1шт.

4

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, bearing retaining

2шт.

G33485

GLAND

ASSEMBLY, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1 - 1/2 x 2 x 5/16")

1шт.

Part of Seal kit, P/N G32292

1шт.

8

D36969

CUP

SEAL - piston rod (1 - 1/2 x 2 x 7/16")

1шт.

Part of Seal kit, P/N G32292

1шт.

9

D27706

WIPER SEAL

WIPER - piston rod, inner (split type)

1шт.

Part of Seal kit, P/N G32292

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3 - 1/4 x 1/8")

1шт.

Part of Seal kit, P/N G32292

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back - up

1шт.

Part of Seal kit, P/N G32292

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping (#8 - 32 NC x 1/4")

1шт.

13

G33449

CYLINDER,38.1mm OD x 583.18mm L

ROD - piston (1 - 1/2"), Includes: Ref. 14 and 15

1шт.

14

L12570

BUSHING

BEARING - piston rod (self - aligning)

1шт.

15

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, bearing retaining

2шт.

16

G33150

PISTON

- split (rod end)

1шт.

17

D28366

PISTON

- split (bolt end)

1шт.

G33151

PACKING

ASSEMBLY - piston, Includes: Ref. 19 and 20

1шт.

Part of Seal kit, P/N G32292

1шт.

19

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

20

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

21

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF x 2 - 1/2"

1шт.

22

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1 - 3/8 x 1/8")

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

G32292

KIT

SEAL KIT - cylinder repair, Includes: Ref. 7 - 11 and P/N G33151

1шт.
