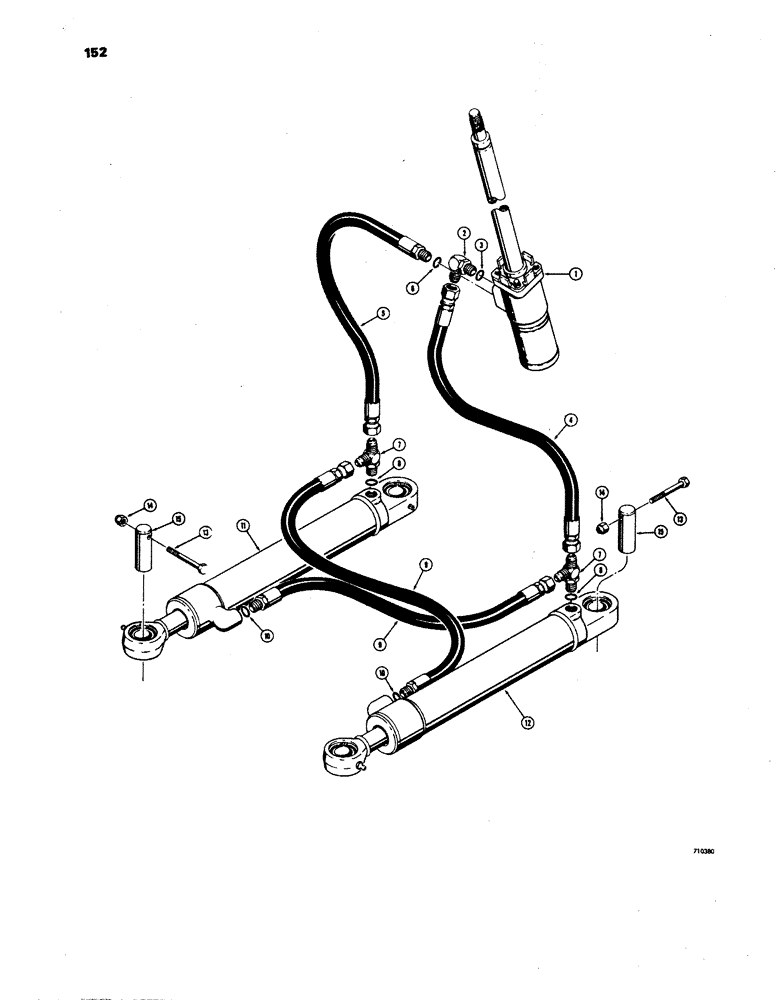

Запчасти Case W24B (152) - STEERING CYLINDER HYDRAULICS (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - steering (See figures 148 thru 149C for proper pump )

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable (Used with Char - Lynn manufactured steering gear, figures 148 - 149A), Includes: Ref. 3 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

2

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree (Used with Ross manufactured steering gear, figure 149C), Includes: Ref. 3

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring (Used with 218-5106 elbow only)

1шт.

3

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring (Used with 218-5121 elbow only)

1шт.

4

L52617

HOSE

- hydraulic, pump to R.H. cylinder (41" long)

1шт.

5

L51802

HOSE

- hydraulic, pump to L.H. cylinder (39" long) Used with Char - Lynn steering gear, figures 148 - 149A), Includes: Ref. 6

1шт.

5

L58233

HOSE - hydraulic, pump to L.H. cylinder (39" long) Used with Ross steering gear, figure 149C, Includes: Ref. 6

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring (Used with 151802 hose only)

1шт.

6

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring (Used with 158233 hose only)

1шт.

7

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, Includes: Ref. 8

2шт.

9

L47884

HOSE

- hydraulic, crossover (35 - 1/2" long)

2шт.

8

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

11

REF

INSTRUCTION

CYLINDER - hydraulic, L.H. steering (Parts list Figures 154 and 155A)

1шт.

13

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3 - 3/4"

4шт.

12

REF

INSTRUCTION

CYLINDER - hydraulic, R.H. steering (Parts list figures 154 and 155A )

1шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

4шт.

15

L497952

PIN - cylinder mounting

4шт.
