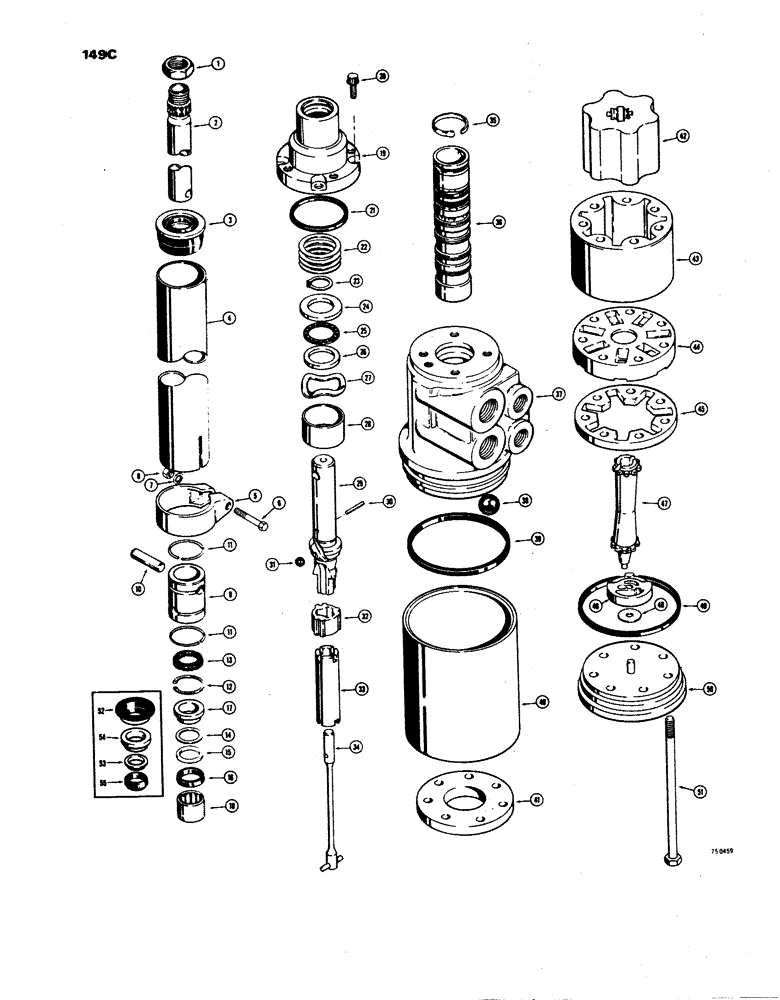

Запчасти Case W24B (149C) - L56050 MANUAL STEERING PUMP, MODELS WITHOUT GEAR HOUSING WITH STAGGERED INLET & OUTLET PORTS (05) - STEERING

L56050

PUMP

AND COLUMN ASSEMBLY - manual steering (Ross), Includes: Ref. 1 - 55

1шт.

1

A14567

JAM NUT

- hex, steering wheel retaining

1шт.

2

L35652

SHAFT

- steering column

1шт.

L35656

JACKET ASSEMBLY - steering column, Includes: Ref. 3 and 4

1шт.

3

L35675

SEAL

- steering, Serial Range: shaft-jacket

1шт.

4

NSS

NOT SOLD SEPARAT

TUBE - jacket

1шт.

L35657

CLAMP

ASSEMBLY - jacket retaining, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

CLAMP - jacket

1шт.

6

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16" - 24 NF x 2"

1шт.

7

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

8

129-122

NUT,5/16"-24, G5

1шт.

9

L35653

COUPLING, BREAK AWAY

COUPLING - steering shaft and manual pump

1шт.

10

L35654

PIN

- coupling

2шт.

11

L35655

RING

- pin retaining

2шт.

L35651

PUMP ASSEMBLY - manual steering, Includes: Ref. 12 - 55

1шт.

12

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

L36013

MISC PACKAGING

PACKING KIT - shaft (If used) Order ref. no's 52 - 55, Includes: Ref. 13 - 16

1шт.

13

F19645

BUSHING

- felt

1шт.

14

A40626

WASHER - special, brass

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, teflon

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - input shaft, rubber

1шт.

17

A40627

WASHER - special

1шт.

D70584

COVER

ASSEMBLY - upper, Includes: Ref. 18 and 19

1шт.

18

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - upper cover

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - upper

1шт.

20

A43567

BOLT

CAPSCREW - 5/16" - 18 NC x 3/4"

4шт.

21

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

RING - seal, cover

1шт.

22

A44435

SHIM

KIT - pump cover

1шт.

23

A43720

RING

- thrust bearing retaining

1шт.

24

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - special, thrust (Large)

1шт.

25

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust

1шт.

26

F19634

BEARING WASHER

WASHER - special, thrust (Small)

1шт.

27

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - spring, wave

1шт.

28

D75494

SPACER

- cover (replaced A43728)

1шт.

29

A43551

SHAFT

- pump, input

1шт.

30

D53297

PIN

- drive

1шт.

31

211-9

BALL,5/16" Dia

- 5/16"

1шт.

32

A43554

RING

- drive

1шт.

33

NLS

NO LONGER SERVICED

- drive links

1шт.

34

L35659

ROD

BAR - torsion

1шт.

35

A43560

SPRING

- preload

1шт.

L35658

HOUSING AND SPOOL ASSEMBLY - pump, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SPOOL - housing and spool assembly

1шт.

37

NSS

NOT SOLD SEPARAT

HOUSING - housing and spool assembly

1шт.

38

211-321

BALL

- check (13/16" dia.)

1шт.

39

C18382

RING

- seal, sleeve to pump housing

1шт.

40

L35671

SLEEVE

- gear protecting

1шт.

41

L35667

PLATE

- wear, rotor

1шт.

L35668

ROTOR

SET - pump, Includes: Ref. 42 and 43

1шт.

42

NSS

NOT SOLD SEPARAT

GEAR - star

1шт.

43

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

44

L35669

MANIFOLD

- suction and discharge

1шт.

L35670

COMMUTATOR

ASSEMBLY - pump, Includes: Ref. 45 and 46

1шт.

45

NSS

NOT SOLD SEPARAT

RING - outside

1шт.

46

NSS

NOT SOLD SEPARAT

ring - inside

1шт.

47

L35666

LINK

- drive, rotor

1шт.

48

L35673

WASHER

- spacer

1шт.

49

C18382

RING

- seal, end, Serial Range: cover-sleeve

1шт.

50

L35672

COVER

- end

1шт.

51

C14838

BOLT

BOLT - special, cover retaining

7шт.

A45272

KIT

PACKING KIT - shaft, Includes: Ref. 52 - 55

1шт.

52

NSS

NOT SOLD SEPARAT

RING - shaft seal

1шт.

53

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

54

A44585

SEAL

SPACER - seal

1шт.

55

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- shaft

1шт.
