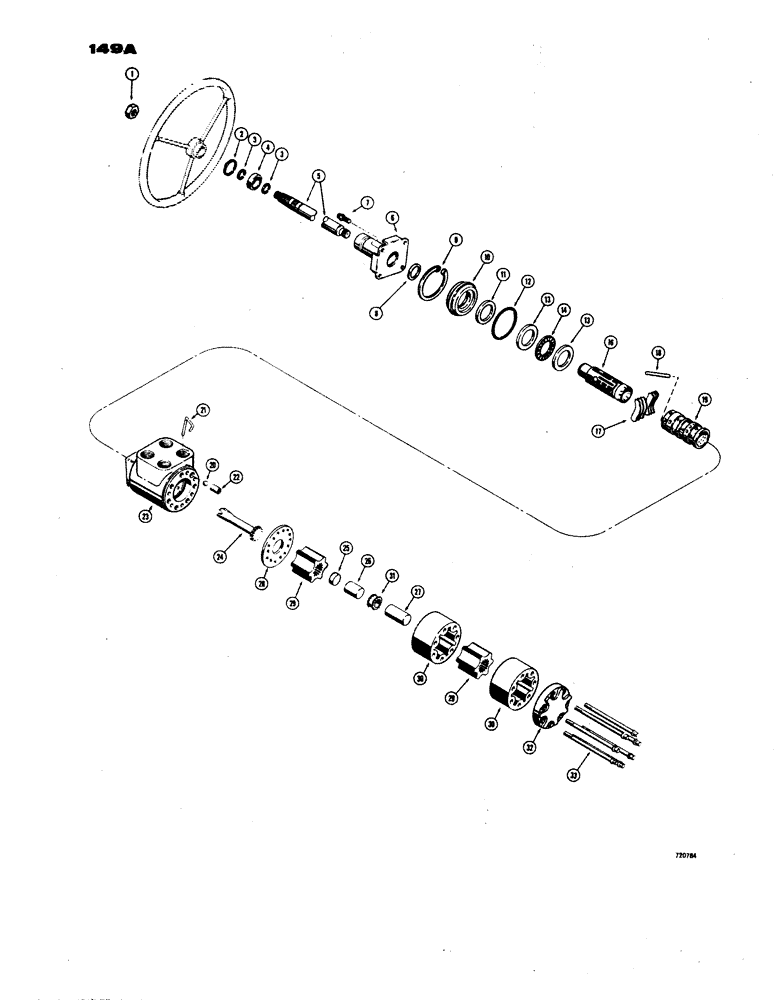

Запчасти Case W24B (149A) - L53917 MANUAL STEERING PUMP, MODELS WITHOUT GEAR HOUSING WITH PARALLEL INLET & OUTLET PORTS (05) - STEERING
№
Артикул
Название
Примечание
Количество
L53917
GEAR
PUMP AND COLUMN ASSEMBLY - steering, manual (Char - Lynn), Includes: Ref. 1 - 33
1шт.
1
L33715
JAM NUT
- steering wheel retaining
1шт.
L35372
STEERING COLUMN
COLUMN ASSEMBLY - steering, Includes: Ref. 2 - 6
1шт.
2
D46319
OIL SEAL
RETAINER - bearing, outer
1шт.
3
F53335
RING, SNAP
SNAP RING - bearing retaining
2шт.
4
L30881
BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W
- steering shaft
1шт.
5
NSS
NOT SOLD SEPARAT
SHAFT - steering
1шт.
6
L35373
COLUMN - tube and flange
1шт.
7
166-43
12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8
SCREW - ferry cap (3/8" - 16 NC x 3/4")
2шт.
L35378
PUMP
ASSEMBLY - steering, manual, Includes: Ref. 8 - 33
1шт.
8
A28211
OIL SEAL
- oil
1шт.
9
L35364
SNAP RING,#212, 2.217", Int, Spiral
RING - retaining, gland
1шт.
10
L35365
GLAND
- shaft seal
1шт.
11
A72029
RING
SEAL - quad ring
1шт.
12
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
SEAL "O" ring
1шт.
13
L35366
BEARING
WASHER - thrust bearing
2шт.
14
G13609
THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W
BEARING, THRUST (Roller type)
1шт.
L35382
CONTROL
ASSEMBLY - pump, Includes: Ref. 16 - 23
1шт.
16
NSS
NOT SOLD SEPARAT
SPOOL - pump
1шт.
17
L30889
SPRING
- centering
6шт.
18
L30888
PIN
- centering
1шт.
19
NSS
NOT SOLD SEPARAT
SLEEVE - pump
1шт.
20
NSS
NOT SOLD SEPARAT
BALL - steel (1/4" dia.)
1шт.
21
L35384
CLIP
PIN SPRING - ball retainer
1шт.
22
NSS
NOT SOLD SEPARAT
INSERT - threaded (5/16" I.D. thread)
1шт.
23
NSS
NOT SOLD SEPARAT
HOUSING - pump
1шт.
24
L30878
DRIVE SHAFT
SHAFT - drive
1шт.
25
D46315
SPACER
- drive shaft, 1/2" long
1шт.
26
L30877
SPACER
- drive shaft, 7/8" long
1шт.
27
D51216
SPACER
- drive shaft, 1 - 5/8" long
1шт.
28
L35380
PLATE - spacer
1шт.
D51215
GEAR WHEEL
GEAR SET - pump, Includes: Ref. 29 and 30
2шт.
29
NSS
NOT SOLD SEPARAT
GEAR - star
1шт.
30
NSS
NOT SOLD SEPARAT
GEAR - ring
1шт.
31
D46316
DRIVE SPROCKET
SLEEVE - splined
1шт.
32
L35379
COVER - lower
1шт.
33
D51217
BOLT,5/16" x 3 1/2"
SCREW - ferry cap (5/16" - 24 NF X 4 - 5/16")
7шт.
Выбрано товаров: 37
