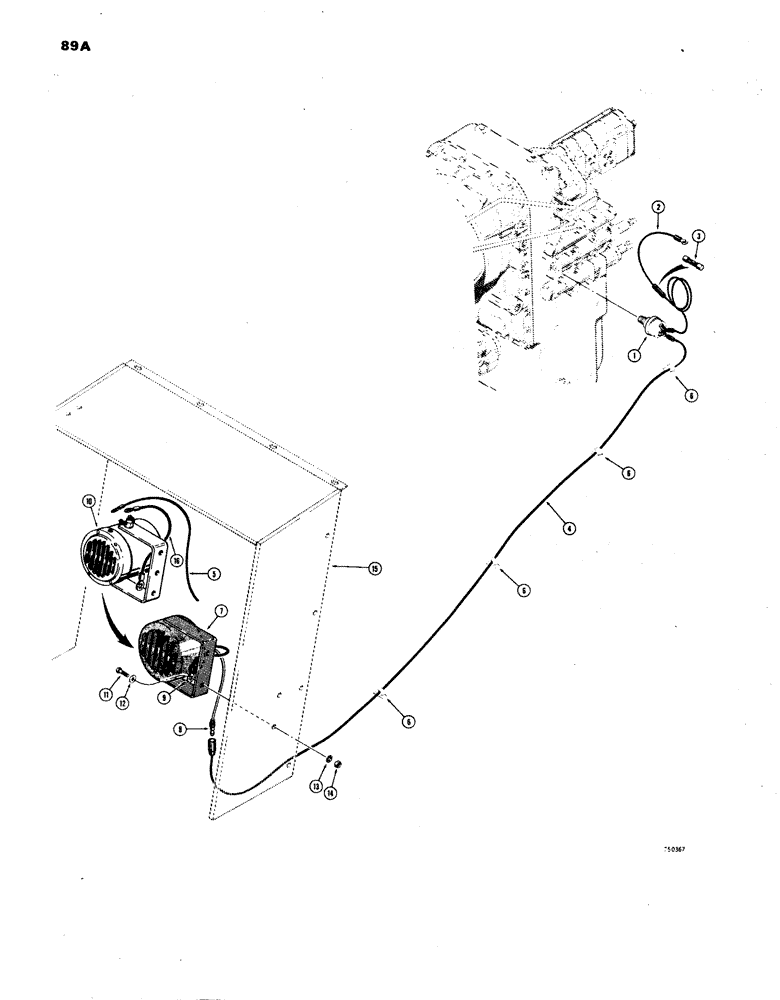

Запчасти Case W24B (089A) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

L57459

SWITCH

- backup alarm

1шт.

2

L57475

ELECTRICAL WIRE

WIRE - backup alarm switch to starter relay

1шт.

3

223-10

FUSE,10 Amp, Type 3AG

- backup alarm (10 amp)

1шт.

4

L57474

ELECTRICAL WIRE

WIRE - backup alarm switch to alarm (Used with L57528 alarm)

1шт.

5

L71115

RETAINING WIRE

WIRE - backup alarm switch to alarm (Used with L70498 Alarm)

1шт.

6

L54606

CLIP

- stick-on, wire retaining

7шт.

L57528

ALARM

ASSEMBLY - back-up (Early production) Order L70498 alarm, L71115 wire and L59563 wire, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

ALARM - back-up

1шт.

8

R18653

TERMINAL STRIP

CONNECTOR - male bullet

1шт.

9

223-56

TERMINAL CONNECTOR,10 - 12

EYELET - backup alarm

1шт.

10

L70498

ALARM

ASSEMBLY - backup (Late production)

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

15

REF

INSTRUCTION

FRAME - grille mounting (See figure 162 for proper frame)

1шт.

16

L59563

ELECTRICAL WIRE

WIRE - ground (Used with L70498 Alarm)

1шт.
