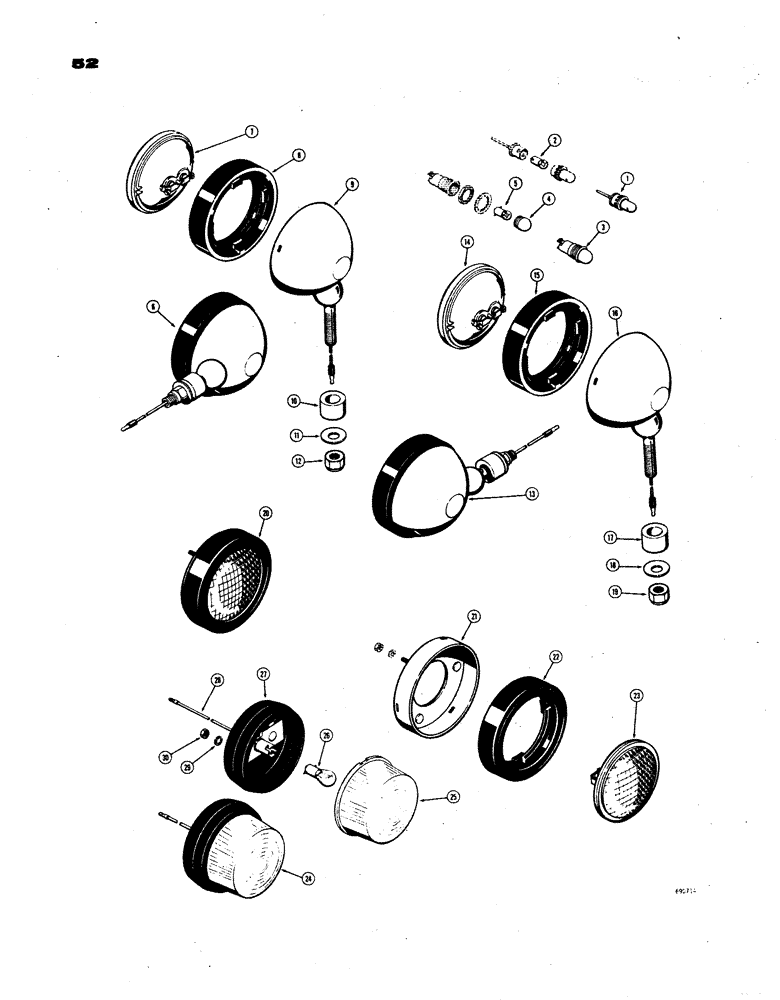

Запчасти Case W24B (052) - LIGHTS, INSTRUMENT PANEL LIGHT (04) - ELECTRICAL SYSTEMS

1

L13275

LAMP

LIGHT ASSEMBLY - instrument panel, 24 volt, Includes: Ref. 2

4шт.

2

A14928

BULB

- panel light

1шт.

1

L55568

INTERIOR LIGHT

LIGHT ASSEMBLY - instrument panel, 12 volt, Includes: Ref. 2

1шт.

2

A22349

BULB

- panel light

1шт.

3

L13282

LAMP BASE

LIGHT ASSEMBLY - ingition indicator, 24 volt, Includes: Ref. 4 and 5

1шт.

4

L31223

LENS

- light, green, ignition indicator

1шт.

5

L32923

SCREW

- ignition indicator light

1шт.

6

L13291

LAMP

LIGHT ASSEMBLY - head, front (24 volt) Painted yellow, Includes: Ref. 7 - 12

2шт.

6

L71729

LAMP

LIGHT ASSEMBLY - head, front (24 volt) Painted black, Includes: Ref. 7 - 12

2шт.

7

A25209

LAMP

LIGHT - head, front

1шт.

8

A25210

MOUNTING PARTS

RETAINER - light, front head

1шт.

9

NSS

NOT SOLD SEPARAT

SHELL - light, front head

1шт.

10

D37048

BUSHING

- light pivot, front head

1шт.

11

D37049

WASHER

- special, front head light

1шт.

12

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, lock (1/2" - 20 NF), front head light

1шт.

13

L13292

INTERIOR LIGHT

LIGHT ASSEMBLY - flood, front (24 volt) Painted yellow, Includes: Ref. 14 - 19

2шт.

13

L71730

INTERIOR LIGHT

LIGHT ASSEMBLY - flood, front (24 volt) Painted black, Includes: Ref. 14 - 19

2шт.

14

D37920

LAMP

LIGHT - head, front flood

1шт.

15

A25210

MOUNTING PARTS

RETAINER - light, front flood

1шт.

16

NSS

NOT SOLD SEPARAT

SHELL - light, front flood

1шт.

17

D37048

BUSHING

- light, front flood

1шт.

18

D37049

WASHER

- special, front flood light

1шт.

19

131-58

LOCK NUT,1/2"-20, G5

NUT - hex., lock (1/2" - 20 NF), front flood light

1шт.

20

D35909

LAMP

LIGHT ASSEMBLY - flood, rear (24 volt), Includes: Ref. 21 - 23

2шт.

21

NSS

NOT SOLD SEPARAT

FRAME - light, rear flood

1шт.

22

D37966

RETAINER

- light, Guide Lamp (If used), rear flood

1шт.

22

A25210

MOUNTING PARTS

RETAINER - light, Hobbs (If used), rear flood

1шт.

23

D37920

LAMP

LIGHT - rear, flood

1шт.

24

L13304

LAMP BASE

LIGHT ASSEMBLY - stop and tail, 24 volt, Includes: Ref. 25 - 30

2шт.

25

L31185

LIGHT FAIRING

LENS - light, stop and tail

1шт.

26

A15084

LAMP

BULB - light, stop and tail

1шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - light, stop and tail

1шт.

28

L31186

ELECTRICAL WIRE

WIRE - light, stop and tail

1шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Stop and tail light 1/4"

2шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Stop and tail light

2шт.
