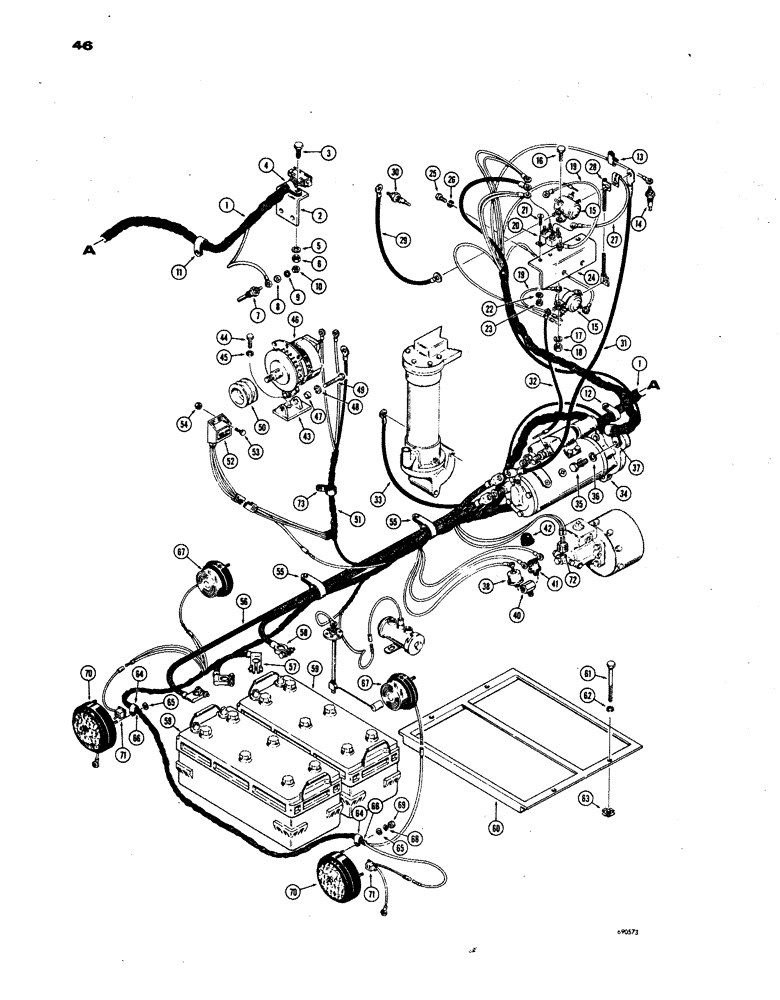

Запчасти Case W24B (046) - ELECTRICAL SYSTEM (REAR HARNESS), MODELS WITHOUT INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

L52052

HARNESS ASSEMBLY - electrical, rear

1шт.

2

L14560

BRACKET

- clamp mounting

1шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

4

49838

CLAMP

- rear harness

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

A13795

SENDER UNIT

SENDING UNIT - coverter oil temperature

1шт.

8

195-12

WASHER,#10

- plain () #10

2шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF)

1шт.

11

49838

CLAMP

- rear, Serial Range: harness-transmission

1шт.

12

A26697

CLAMP - rear harness, to post mounting bolt

1шт.

13

49851

SHIELD

- rear harness, to intake manifold

1шт.

14

F13156

SENDER UNIT

SENDING UNIT - engine water temperature

1шт.

15

D31479

SOLENOID SWITCH

SOLENOID - magnetic, 24 volt

2шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

19

A31060

ELECTRICAL WIRE

WIRE - ground, solenoid

2шт.

20

L11343

BREAKER

- circuit, 60 amp

1шт.

21

173-256

RHMS - #8 - 32 NC x 3/4"

2шт.

22

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

23

129-16

NUT,#8-32

2шт.

24

L18684

BRACKET

- solenoid and circuit breaker mounting

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

27

L18690

WIRE - solenoid to circuit breaker

1шт.

28

L17822

ELECTRICAL WIRE

WIRE - jumper, Serial Range: solenoid-solenoid

1шт.

29

L17831

WIRE HARNESS

CABLE - solenoid to manifold heater

1шт.

30

A34278

HEATER

- manifold

1шт.

31

L14552

CABLE

-, Serial Range: starter-solenoid

1шт.

32

L13300

ELECTRICAL WIRE

WIRE - solenoid to starter solenoid

1шт.

33

L40793

ELECTRICAL WIRE

WIRE - ground, starter

1шт.

34

D42964

X

STARTER - electrical (Parts list Figure 38)

1шт.

35

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Upper mounting bolt) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

35

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Lower mounting bolt) Hex, 1/2"-13 x 3 1/4", G5

1шт.

36

92-8

LOCK WASHER,1/2"

3шт.

37

A12453

CLAMP - rear, Serial Range: harness-starter

1шт.

38

A35031

SENDER UNIT

SENDER - oil pressure, engine

1шт.

40

221-690

3 WAY CONNECTION

TEE - oil pressure switch

1шт.

41

D28798

SWITCH

- pressure, oil

1шт.

42

L13821

BOOT

- pressure switch

1шт.

43

A38492

BRACKET

- alternator

1шт.

44

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

45

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

46

A41360

ALTERNATOR

ASSEMBLY - 24 volt (Parts list figure 35A)

1шт.

47

L18857

SPACER

- alternator bracket

1шт.

48

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

49

92-6

LOCK WASHER,3/8"

1шт.

50

A41361

PULLEY

- alternator

1шт.

51

L17843

HARNESS

-, Serial Range: regulator-alternator

1шт.

52

A75072

REGULATOR

- voltage

1шт.

53

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- fillister head (1/4" - 20 NC x 3/4")

3шт.

54

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex., lock (1/4" - 20 NC)

3шт.

55

R13931

CLAMP

- harness

1шт.

56

L14543

CABLE

- battery, starter solenoid to battery (Red)

1шт.

57

L13310

CABLE

- jumper

1шт.

58

L14542

CABLE

-, Serial Range: battery,-ground

1шт.

59

REF

INSTRUCTION

BATTERY - 12 volt, wet charge (Order L13308 battery for service)

2шт.

59

L13308

DRY BATTERY

- 12 volt, dry charge (Service replacement)

2шт.

61

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

4шт.

60

L13312

FUNNEL

FRAME ASSEMBLY - battery hold down

1шт.

62

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

63

131-133

NUT,Ret, 3/8"-16

Tinnerman Ret, 3/8"-16

4шт.

64

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- rear harness

2шт.

65

195-512

WASHER,#10

- plain () #10

2шт.

66

A12458

SLEEVE

LOOM - wire

2шт.

67

L13304

LAMP BASE

LIGHT - stop and tail (Parts list Figure 52)

2шт.

68

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

69

129-17

NUT,Hex, #10 - 24

NUT - hex., lock (#10 - 24 NC)

6шт.

70

D35909

LAMP

LIGHT - rear flood (Parts list Figure 52)

2шт.

71

A55974

PLUG

- flood light

2шт.

72

L47989

SWITCH

- stop light

1шт.

73

L19029

CLAMP

- harness

1шт.
