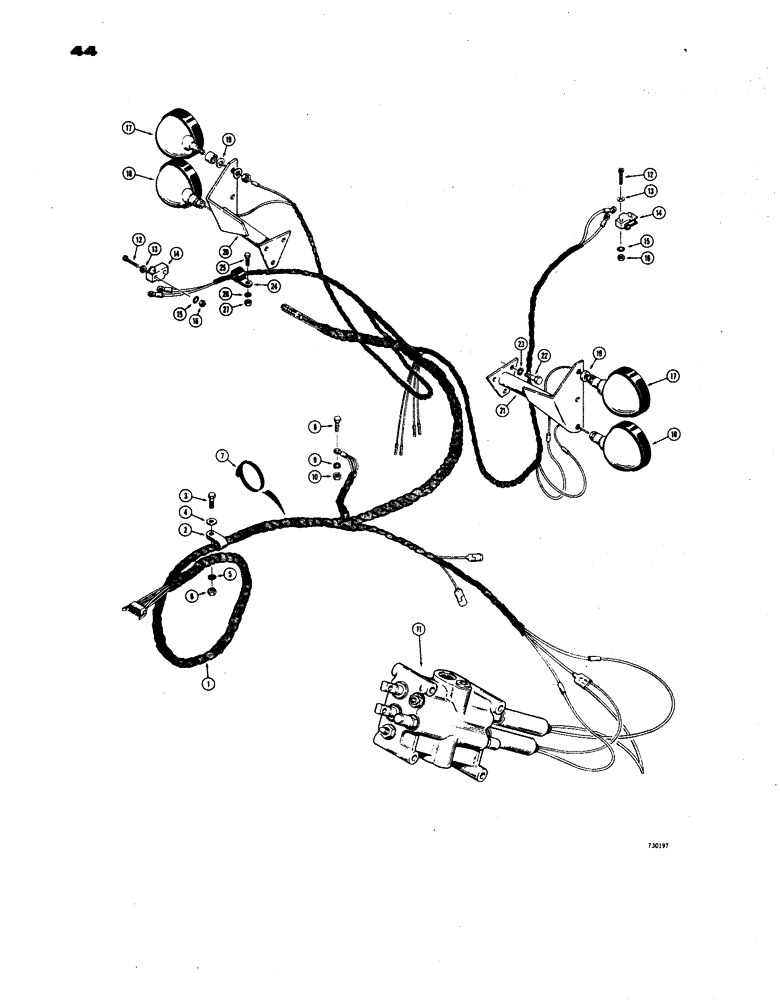

Запчасти Case W24B (044) - ELECTRICAL SYSTEM (FRONT HARNESS), MODELS WITHOUT INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

L51780

HARNESS - front frame, electrical

1шт.

2

49836

CLAMP

- harness

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

4

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wiring harnes

12шт.

8

15-416

X

HHCS - 1/4" - 20 NC x 1"

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

25-104

NUT,1/4"-20, G5

1шт.

11

REF

INSTRUCTION

VALVE - loader control (Parts list Figures 216 or 218)

1шт.

12

182-52

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

- machine, pan head (No. 6 - 32 NC x 1-1/4")

4шт.

13

195-11

WASHER,#10

- plain (#6)

4шт.

14

D40921

SWITCH

- micro, lift (When stock is exhausted, order L54683 switch for service)

1шт.

14

L54683

SWITCH

- micro, lift

2шт.

15

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, Ext Tooth, #6

4шт.

16

129-15

NUT,#6-32

4шт.

17

REF

INSTRUCTION

FLOOD LIGHT - 24 volt, upper (See figure 52)

2шт.

18

REF

INSTRUCTION

HEADLIGHT - 24 volt, lower (See figure 52)

2шт.

19

L16776

SPACER

- headlight to mounting bracket

2шт.

20

L40005

MOUNTING PARTS

BRACKET - light mounting (L.H.)

1шт.

21

L40006

MOUNTING PARTS

BRACKET - light mounting (R.H.)

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

23

92-6

LOCK WASHER,3/8"

6шт.

24

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- wiring harness, at height control bracket

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
