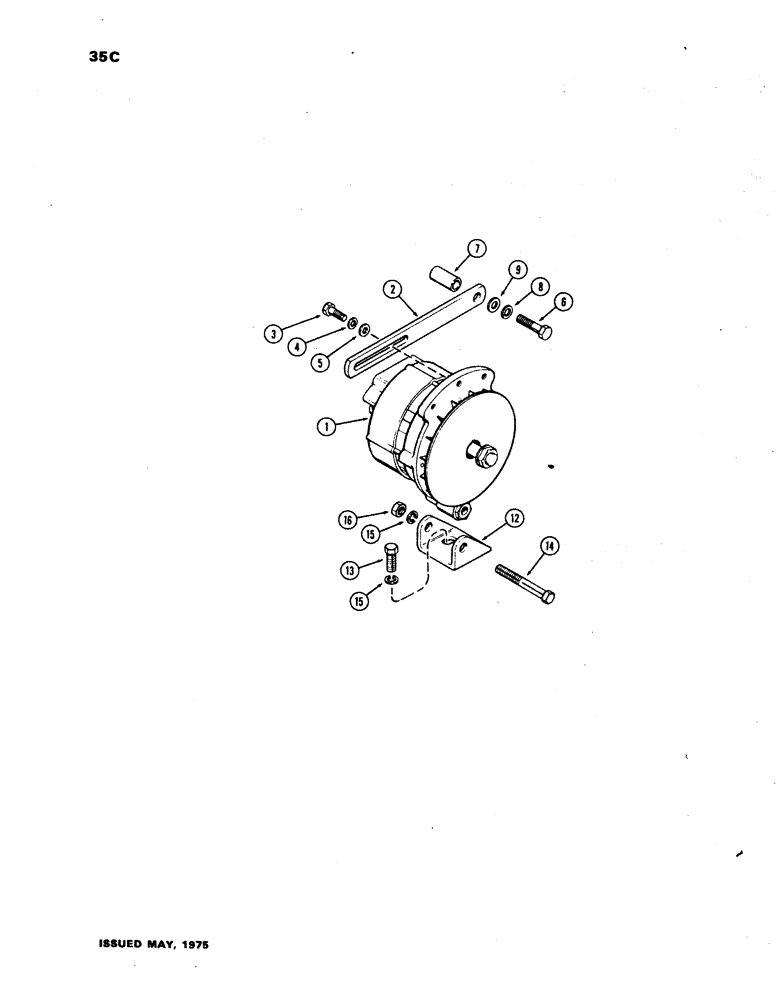

Запчасти Case W24B (035C) - ALTERNATOR MOUNTING PARTS, (504BD) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSY. - (See Figures 34 & 35A)

1шт.

2

A59098

STRAP

- alternator adjusting

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Strap to alternator Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

4

92-5

LOCK WASHER,5/16"

1шт.

5

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 5/8 x 1/16"

1шт.

6

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- strap to water pump (3/8 x 3-3/4" N.C. hex.)

1шт.

7

A27328

SPACER

- adj. strap (1/2" I.D. pipe x 1-1/4")

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

95-6

WASHER,3/8"

- 3/8 x 1 x 1/16"

1шт.

12

A38492

BRACKET

- alternator mounting

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to timing cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

14

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- alternator pivot (3/8 x 3" N.C. hex.)

1шт.

15

92-6

LOCK WASHER,3/8"

3шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
