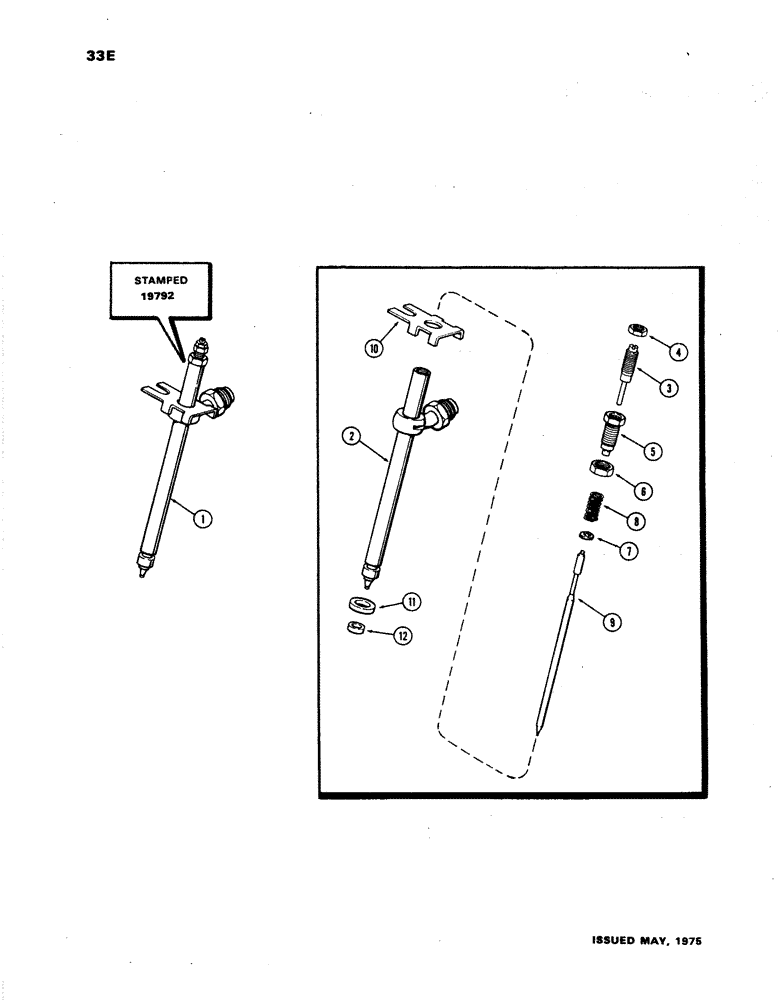

Запчасти Case W24B (033E) - A64439 INJECTION NOZZLES, (504BD) DIESEL ENGINE (03) - FUEL SYSTEM

1

A64439

NOZZLE CAP

NOZZLE ASSY. - injector (Stanadyne No. 19792 w/yellow & blue paint color code), Includes: Ref. 2 - 12

6шт.

Whenever nozzle is removed from head, the seal, ref. 12 and washer, ref. 11 must be replaced before nozzle is installed back in head.

1шт.

A140830R

REMAN-INJECT NOZZLE

W24B (PRIOR TO S/N 9120696), Reman for new PN A64439

6шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adj. screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adj. screw

1шт.

7

A44369

SEAT

- spring (Replaced A41401)

1шт.

8

A43733

SPRING

- pressure (9/16" free length w/red stain)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A41768

PLATE

- nozzle

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain (3/8 x 9/16 x 1/8")

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop (5/16 x 3/8 x 1/8")

1шт.
